High Temperature Melt Pressure Sensor/Transmitter PT133

The PT133 high temperature melt pressure sensor is an industrial measurement device specifically engineered for extreme operating conditions involving high-temperature, high-pressure, high-viscosity, and corrosive media. This advanced pressure transmitter PT133 continuously monitors critical pressure parameters of melts such as plastics, rubber, molten metals, and chemical fiber materials, delivering essential data to support production process control, quality stability, and equipment safety. The high temperature pressure sensor finds widespread application across rubber and plastic manufacturing, metallurgy, chemical fiber production, and related industries requiring precise melt pressure monitoring.

1. Core Features and Functions

1) Adaptability to Extreme Working Conditions

• High-Temperature Resistance: The high temperature melt pressure sensor features an exceptionally wide operating temperature range and is constructed from high-temperature-resistant materials, enabling direct contact with high-temperature melts without material degradation or measurement failure.
• High-Pressure and Viscosity Resistance: With a broad measurement range, this melt pressure transducer withstands impact pressures from melt flow. Optimized probe structures including flush diaphragm and wedge-shaped diaphragm designs prevent adhesion and clogging by high-viscosity melts, significantly reducing measurement errors and drift.
• Corrosion and Interference Resistance: Medium-contacting parts are manufactured from corrosion-resistant alloys or equipped with ceramic coatings to resist erosion from acidic, alkaline, or organic solvent-based melts. The integrated electromagnetic shielding module counters grid interference and vibration disturbances typical in high-frequency vibration environments such as extruders and injection molding machines.

2) Precise Measurement and Stable Output

• High Precision and Repeatability: This pressure transmitter PT133 delivers measurement accuracy from ±0.1%FS to ±0.25%FS with linearity of ≤±0.2%FS and repeatability of ≤±0.1%FS, ensuring exceptional data consistency for precision manufacturing applications.
• Temperature Compensation: Multi-point temperature compensation algorithms are integrated to offset temperature-induced measurement drift, maintaining stable and accurate pressure readings across extended temperature ranges in challenging high-temperature environments.
• Flexible Signal Output: The high temperature pressure sensor supports multiple industrial standard signals including analog outputs (4-20mA, 0-10V, 0-5V) and digital protocols (HART, RS485-Modbus, Profibus), enabling seamless integration with PLCs, DCS systems, and industrial computers for comprehensive automation integration.

3) Structural and Installation Advantages

• Integrated/Modular Design: The compact melt pressure transducer features customizable probe lengths to accommodate barrel and die depths of various equipment types. Multiple flexible installation methods including threaded connections (M14/M18/M22), flange mounting, and clamp systems require minimal equipment modifications.
• Overload and Explosion Protection: Equipped with robust 150%–200%FS overload protection to prevent damage from sudden pressure spikes. Select models comply with the Ex d II CT4 explosion-proof standard, making them suitable for flammable and explosive melt processing applications such as solvent-based rubber production.

4) Additional Functions (Premium Models)

• Real-Time Display: Built-in LCD/LED display enables intuitive pressure visualization without requiring connection to external control systems or computers.
• Alarm Output: Configurable upper and lower pressure thresholds trigger switching alarms and relay outputs when exceeded, enabling automatic equipment shutdown or parameter adjustment protocols.
• Remote Calibration: HART protocol support enables remote recalibration without sensor disassembly, substantially reducing maintenance complexity and operational downtime.

2. Critical Industry Challenges Resolved

In high-temperature melt applications, conventional pressure sensors experience significant performance limitations including inability to withstand extreme temperatures, susceptibility to clogging, measurement precision deterioration, and shortened operational lifespan. The PT133 high temperature melt pressure sensor comprehensively addresses these industry challenges through specialized design and advanced materials.

• Working Condition Adaptation: Eliminates burnout and accelerated aging typical of conventional sensors in severe high-temperature environments including extruder dies, injection molding machine barrels, and molten metal transport pipelines.
• Measurement Precision: Overcomes data drift and significant errors caused by high-viscosity melt adhesion and pressure fluctuations, ensuring uniform product characteristics including consistent film thickness and rubber product density specifications.
• Equipment Safety: Provides continuous real-time melt pressure monitoring to prevent pressure-related failures including die rupture, pipeline leakage from excessive pressure, and material blockages from insufficient pressure conditions.
• Maintenance Efficiency: Superior corrosion and clogging resistance substantially reduce frequent disassembly, cleaning, and replacement cycles, lowering maintenance costs and production downtime. Extended service intervals compared to conventional sensors reduce operational expenses significantly.
• Automation Integration: Standardized signal outputs achieve compatibility with existing industrial control infrastructure, eliminating signal incompatibility issues and enabling seamless automated production system upgrades.

3. User Experience Advantages

• Convenient Installation: Multiple connection methods accommodate diverse equipment interfaces without requiring specialized tools. Installation and commissioning typically require only 10–30 minutes, with flush probe design preventing melt residue accumulation for effortless cleaning procedures.
• Stable and Reliable: Mean Time Between Failures exceeds 20,000 hours with minimal annual data drift (≤±0.1%FS/year), substantially reducing calibration and adjustment workload for maintenance personnel.
• User-Friendly Operation: Analog signal models provide true plug-and-play connectivity; digital signal variants support convenient remote parameter configuration. Display-equipped models facilitate on-site pressure reading without connecting to external computers or control cabinets.
• Strong Compatibility: Seamless operation with major PLC platforms including Siemens, Mitsubishi, and Rockwell automation systems, plus integration with DCS platforms eliminates the need for additional signal conversion equipment, reducing integration expenses.
• Extended Durability: Comprehensive overload protection, vibration resistance, and advanced corrosion resistance extend operational lifespan, maintaining stable performance in harsh industrial conditions and reducing long-term replacement costs.

4. Typical Application Scenarios

1) Rubber and Plastic Industry

• Extruders: The high temperature melt pressure sensor monitors melt pressure in dies and barrels during PE/PVC/PP pipe extrusion, plastic film blowing, and rubber seal extrusion to optimize speed control and product thickness uniformity.
• Injection Molding: This pressure transmitter PT133 tracks barrel and nozzle pressure during molding cycles to prevent defects including material shortages, flash formation, and sink marks while ensuring dimensional precision.
• Vulcanizers: The melt pressure transducer controls pressure during rubber vulcanization processes for uniform curing and enhanced product strength and elasticity characteristics.

2) Chemical Fiber Industry

• Spinning Machines: The high temperature pressure sensor monitors melt pressure at spinnerets during polyester, nylon, and spandex fiber production, controlling filament diameter consistency and preventing breakage or surface fuzz defects.
• PET Melt Transport: Pressure monitoring in PET melt pipelines ensures stable material delivery to spinning components with consistent flow characteristics.

3) Metallurgical Applications

• High-Temperature Molten Metals: The melt pressure transducer tracks pressure in molten steel, aluminum, and copper transport pipelines and casting molds to prevent overflow conditions or insufficient casting material delivery.
• Refractory Materials: Pressure control in ceramic slurry and glass melt equipment ensures uniform product density and quality specifications.

5) Other Specialized Applications

• High-temperature reactors for chemical synthesis and polymer polymerization processes
• Pressure control for molten coating and adhesive material transportation

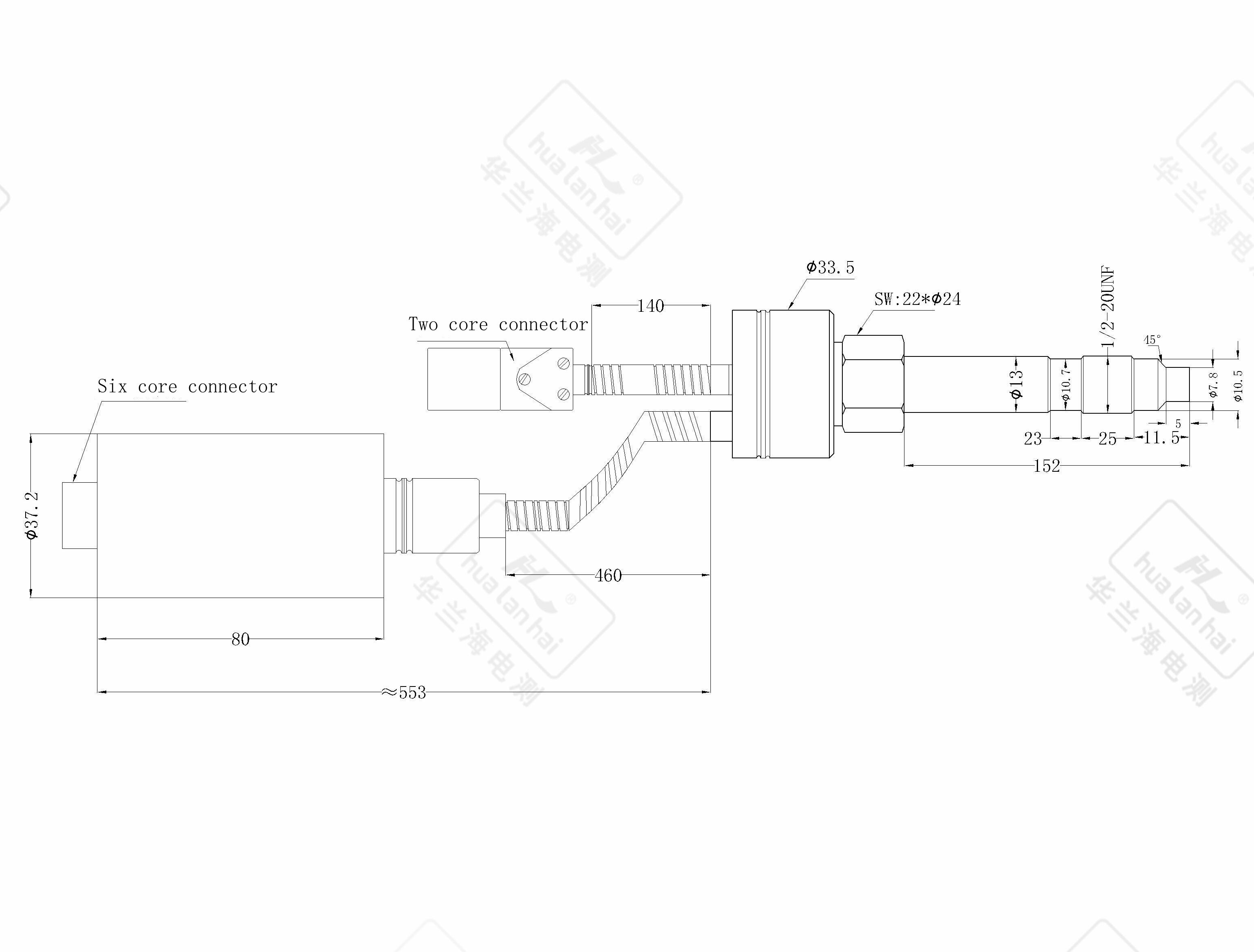

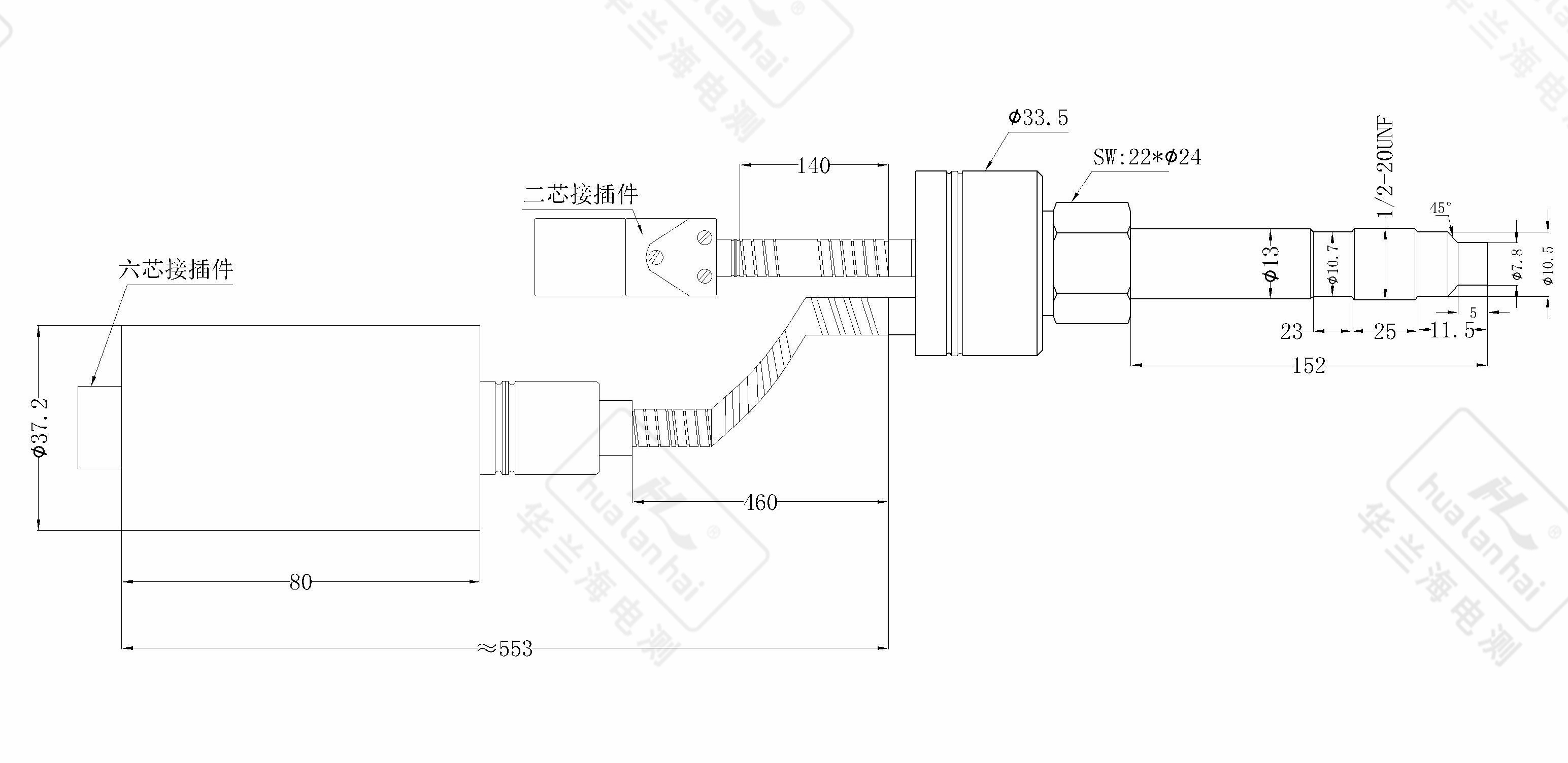

Detail Display

Parameters

Summary

The PT133 high temperature melt pressure sensor delivers exceptional value through precise, reliable measurement under extreme industrial conditions. By comprehensively addressing critical pressure monitoring requirements for high-temperature, high-pressure, and high-viscosity applications, this pressure transmitter PT133 ensures both production safety and superior product consistency. The melt pressure transducer represents essential equipment for automated and intelligent manufacturing processes across rubber and plastic production, chemical fiber manufacturing, and metallurgical industries. Superior flexibility in installation, robust compatibility with industrial control platforms, and extended service life substantially reduce total cost of ownership while boosting overall production efficiency and equipment reliability for demanding industrial users.
