Parallel Beam Weight Sensor CZL639MB

Product Introduction

The Parallel Beam Weight Sensor CZL639MB is a precision force-sensitive detection element engineered on the strain resistance principle, featuring a parallel beam load cell elastomer as its core structure. When subjected to force, the bending deformation of the beam drives strain gauges to produce resistance changes, which convert into standardized electrical signals. This parallel beam load cell combines exceptional advantages including high precision under light loads, outstanding planar anti-off-center load capacity, and convenient installation compatibility. The CZL639MB parallel beam weight sensor is widely deployed in small-range weighing applications, planar force measurement, and embedded measurement scenarios across diverse industries. This comprehensive guide details the core dimensions and technical specifications to support product selection, technical evaluation, and solution development.

1. Product Features and Functions

Core Features

• Structural Design: The CZL639MB load cell adopts an integrated parallel beam structure with beam thickness ranging from 2-15mm and length spanning 20-150mm. Stress distribution concentrates uniformly in the middle section of the beam, providing multi-angle planar force support with outstanding anti-off-center load capacity. This parallel beam weight sensor can withstand planar eccentric loads of ±20%-±30% of rated load without performance degradation, eliminating stress blind spots and ensuring consistent measurement accuracy across the loading platform.

• Precision Performance: The CZL639MB parallel beam load cell offers accuracy levels spanning C1-C3 classifications, with mainstream models achieving C2 certification. Technical precision includes nonlinearity error ≤ ±0.01%FS, repeatability error ≤ ±0.005%FS, and zero drift ≤ ±0.002%FS/°C. This parallel beam weight sensor delivers superior precision performance compared to similar sensors in small-range scenarios spanning 0.1kg to 500kg applications.

• Materials and Protection: The CZL639MB weight sensor elastomers utilize aluminum alloy for lightweight applications, alloy steel for general industrial scenarios, or 304/316L stainless steel for corrosive environments. Surface treatments include anodizing, nickel plating, or passivation. Protection ratings typically reach IP65/IP67, with food-grade models achieving IP68 certification, ensuring reliable operation across complex environments.

• Installation Compatibility: The parallel beam load cell features standardized mounting holes with threaded or plain configurations, supporting both bolt fixing and adhesive installation methods. Micro models enable embedded installation in confined spaces, making the CZL639MB load cell ideal for desktop weighing instruments and automated equipment requiring compact sensor integration without structural modifications.

Core Functions

• Light Load Force Measurement: The parallel beam weight sensor specializes in static and quasi-dynamic light load weighing with response time ≤ 4ms. The CZL639MB load cell range covers 0.1kg-500kg, with typical applications concentrated in 1kg-200kg ranges. Micro models achieve ultra-small range measurement capabilities down to 0.01kg.

• Multiple Signal Output Types: The CZL639MB parallel beam load cell provides analog signals (4-20mA, 0-3V, 0-5V) and digital signals (RS485/Modbus RTU, I2C). Micro intelligent models integrate signal conditioning modules enabling direct connection to microcontrollers and IoT communication devices.

• Safety Protection Function: The parallel beam weight sensor integrates wide temperature range compensation (-10°C~70°C), incorporating overload protection rated at 150%-200% of nominal capacity (typically 150% for aluminum alloy variants). Select models include anti-shock buffer structures for enhanced durability.

• Long-Term Stability: The CZL639MB load cell demonstrates fatigue life exceeding 10⁷ load cycles, with annual drift ≤ ±0.01%FS under rated load conditions. This parallel beam weight sensor maintains exceptional stability for continuous operation in supermarkets, laboratories, and industrial facilities.

2. Core Problems Solved

• Insufficient Precision in Light Load Scenarios: Traditional sensors exhibit excessive errors in small-range applications below 10kg. The CZL639MB parallel beam load cell solves this through optimized beam stress design, maintaining measurement error within ±0.005%FS. This addresses high-precision requirements in food weighing, pharmaceutical metering, and laboratory applications.

• Inaccurate Measurement of Planar Eccentric Load: The uniform stress distribution characteristic of the parallel beam weight sensor effectively compensates for measurement errors caused by off-center material placement. The CZL639MB load cell eliminates accuracy problems in desktop weighing instruments and sorting equipment where material positioning varies.

• Difficulties in Equipment Integrated Installation: The compact structure and flexible installation methods of the parallel beam load cell address embedded installation requirements in automated equipment and smart appliances. The CZL639MB weight sensor eliminates equipment structural modifications and reduces integration costs significantly.

• Poor Adaptability to Multiple Environments: Material and protection level enhancements enable the parallel beam weight sensor to perform reliably in humidity-rich aquaculture weighing, corrosive chemical reagent applications, and dust-intensive flour processing environments. The CZL639MB load cell prevents sensor damage and signal drift across diverse operational contexts.

• Cost Pressure on Small Equipment: The single parallel beam weight sensor configuration satisfies planar weighing requirements without multi-sensor combinations. Aluminum alloy construction reduces product weight and cost, making the CZL639MB load cell the cost-effective solution for small weighing instruments and consumer electronics applications.

3. User Experience

• Ultra-simplified Installation: Standardized mounting holes and positioning reference surfaces eliminate professional calibration tool requirements. Installation of the CZL639MB parallel beam load cell completes with ordinary screwdrivers, requiring flatness tolerances ≤0.1mm/m, enabling single-person debugging completion within 10 minutes.

• Low Operation Threshold: The parallel beam weight sensor supports one-key zeroing and single-point calibration, requiring only a 100% rated load standard weight. Digital models calibrate quickly through computer software, enabling non-professional operators to perform calibration procedures effortlessly.

• Extremely Low Maintenance Cost: Fully sealed construction reduces dust and moisture intrusion, with annual average failure rates ≤0.2%. The lightweight aluminum alloy CZL639MB load cell (minimum 5g weight) simplifies replacement procedures without requiring large structure disassembly during maintenance.

• Accurate Data Feedback: Static measurement data fluctuation remains within ±0.003%FS with no hysteresis in quasi-dynamic scenarios. Digital models include zero drift compensation, eliminating frequent recalibration requirements and ensuring superior data stability.

• Good Integration Adaptability: Micro parallel beam weight sensor variants measure 20mm×10mm×5mm minimum, embedding within smart devices without affecting appearance design. Signal outputs maintain compatibility with mainstream controllers through plug-and-play integration.

4. Typical Application Scenarios

1) Civil and Commercial Light Load Weighing Instruments

• Supermarket pricing scales utilizing the CZL639MB parallel beam load cell as the core sensing unit in 3-30kg scales, with lightweight aluminum alloy design. Anti-eccentric load characteristics maintain consistent accuracy across different placement positions, delivering error ≤ ±1g. Express electronic scales from 1-50kg utilize the parallel beam weight sensor with stainless steel construction for anti-fouling performance. IP67 protection suits humid and dusty express delivery environments, supporting continuous rapid weighing operations. Kitchen scales at 0.01-5kg capacity employ micro parallel beam load cells achieving milligram-level accuracy, with digital signal output compatible with high-definition displays.

2) Industrial Automation Equipment

• Automated sorting equipment deploys the CZL639MB load cell under sorting conveyor belts for real-time product weight detection linked with sorting mechanisms, achieving ±0.1g accuracy. Material detection on assembly lines utilizes the parallel beam weight sensor for material shortage detection through weighing (battery assembly verification). The 4ms response time accommodates high-speed pipeline operations. Quantitative packaging machine control implements the CZL639MB parallel beam load cell for precise small particle and powder weighing, with C2 accuracy models ensuring weight error ≤ ±0.2% per package, meeting metrological standards.

3) Food and Pharmaceutical Industries

• Pharmaceutical ingredient weighing for small-dose raw materials (0.1-10kg) utilizes 316L stainless steel CZL639MB load cells with GMP certification. Polished surfaces without dead corners facilitate disinfection, achieving accuracy ≤ ±0.01%FS. Aquatic product and meat weighing equipment in slaughterhouses deploys the parallel beam weight sensor with waterproof anti-corrosion design (IP68), withstanding direct washing in wet environments.

4) Scientific Research and Experimental Equipment

• Laboratory biological experiment weighing utilizes ultra-small range CZL639MB models (0.01-1kg) for reagent and sample measurement, satisfying microbial culture and chemical proportioning requirements. Medical rehabilitation equipment employs the parallel beam weight sensor for force measurement in handgrip dynamometers and baby scales, with lightweight aluminum alloy design enhancing portability and achieving accuracy ±0.005%FS.

5) Intelligent Consumer Electronics and IoT Devices

• Smart home appliances detect laundry weight in washing machines and bean bin weight in coffee makers, with embedded CZL639MB parallel beam load cells enabling intelligent equipment control. IoT endpoints implement the weight sensor for smart shelf and trash can monitoring, with low-power digital models supporting NB-IoT wireless transmission for remote IoT management scenarios.

5. Usage Instructions (Practical Guide)

1) Installation Process

• Preparation: Clean the installation surface removing oil and burrs, inspect the CZL639MB parallel beam load cell for beam deformation or cable damage, select appropriate mounting bolts avoiding high-strength options for aluminum alloy models. Positioning and Fixing: Install the parallel beam weight sensor horizontally ensuring vertical load direction above the beam body, avoiding lateral impacts. Apply torque wrench tightening (5-10 N·m for aluminum, 10-20 N·m for alloy steel) preventing beam damage from over-tightening. Wiring Specifications: Analog signals follow "red-power+, black-power-, green-signal+, white-signal-" color coding; digital signals connect per pin definitions. Reserve 5cm redundant cable length for micro models. Protection Treatment: Seal cable connectors with waterproof tape in humid environments, promptly clean sensor surfaces in food industries preventing material corrosion.

2) Calibration and Debugging

• Zero Calibration: Power on and preheat the CZL639MB weight sensor for 10 minutes, execute zero calibration ensuring output within ±0.001%FS, check installation levelness if deviations exceed limits. Load Calibration: Position standard weight equivalent to 100% rated load, record output signal values, correct errors through meter or software ensuring error ≤ accuracy class allowance (C2: ≤ ±0.01%FS). Eccentric Load Test: Place identical weight at different sensor surface positions, observe reading consistency with deviation ≤ ±0.02%FS, adjust installation levelness if necessary.

3) Routine Maintenance

• Regular Inspection: Clean the CZL639MB parallel beam load cell surface weekly, check wiring monthly. Calibrate supermarket scales quarterly and laboratory equipment monthly. Fault Handling: Data drift indicates power supply verification (stable 5-24V DC, typically 5V for micro models); abnormal readings suggest overload conditions, particularly aluminum alloy susceptibility to permanent deformation. Replace the parallel beam weight sensor if necessary.

Summary

The Parallel Beam Weight Sensor CZL639MB represents the optimal sensing solution for light load, planar eccentric load, and embedded installation requirements. This parallel beam load cell excels through light load high precision, planar anti-off-center load capability, and convenient system integration, directly addressing small-range precise weighing challenges, material offset compensation, and equipment embedded installation. User experience emphasizes simplified operation, worry-free maintenance, and controlled costs. When selecting the CZL639MB load cell, clarify four core requirements: range, accuracy class, installation space, and environmental conditions, then confirm system compatibility and specialized functions. During operation, prevent overloading and lateral impacts while strictly adhering to regular calibration protocols ensuring long-term stable performance. The CZL639MB parallel beam weight sensor is ideal for supermarket scales, express equipment, automated sorting, pharmaceutical applications, laboratory instruments, and smart IoT devices, representing the preferred choice across light load weighing and planar measurement industries.

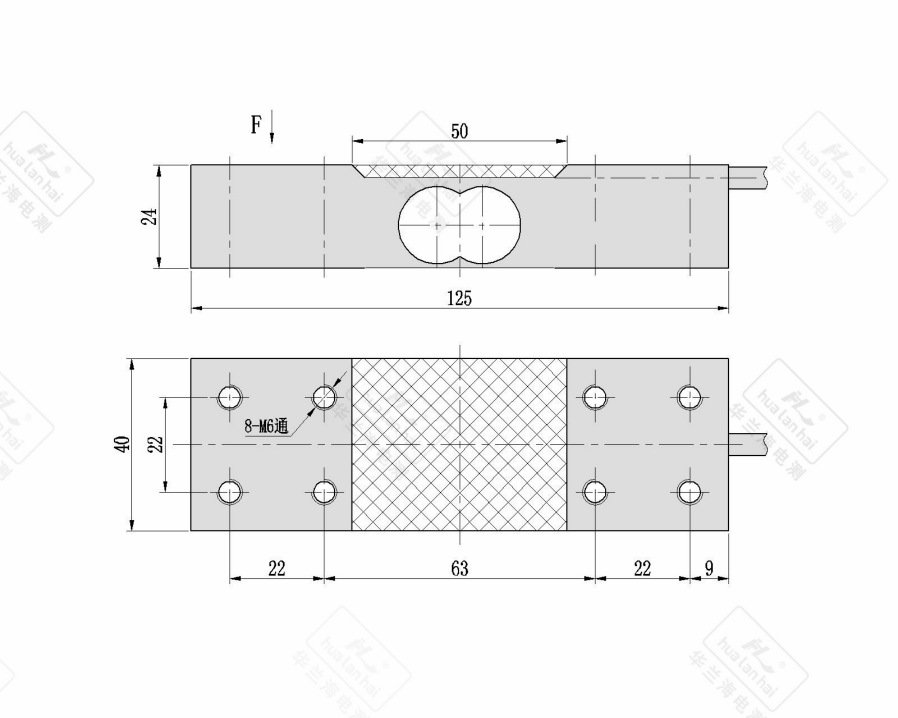

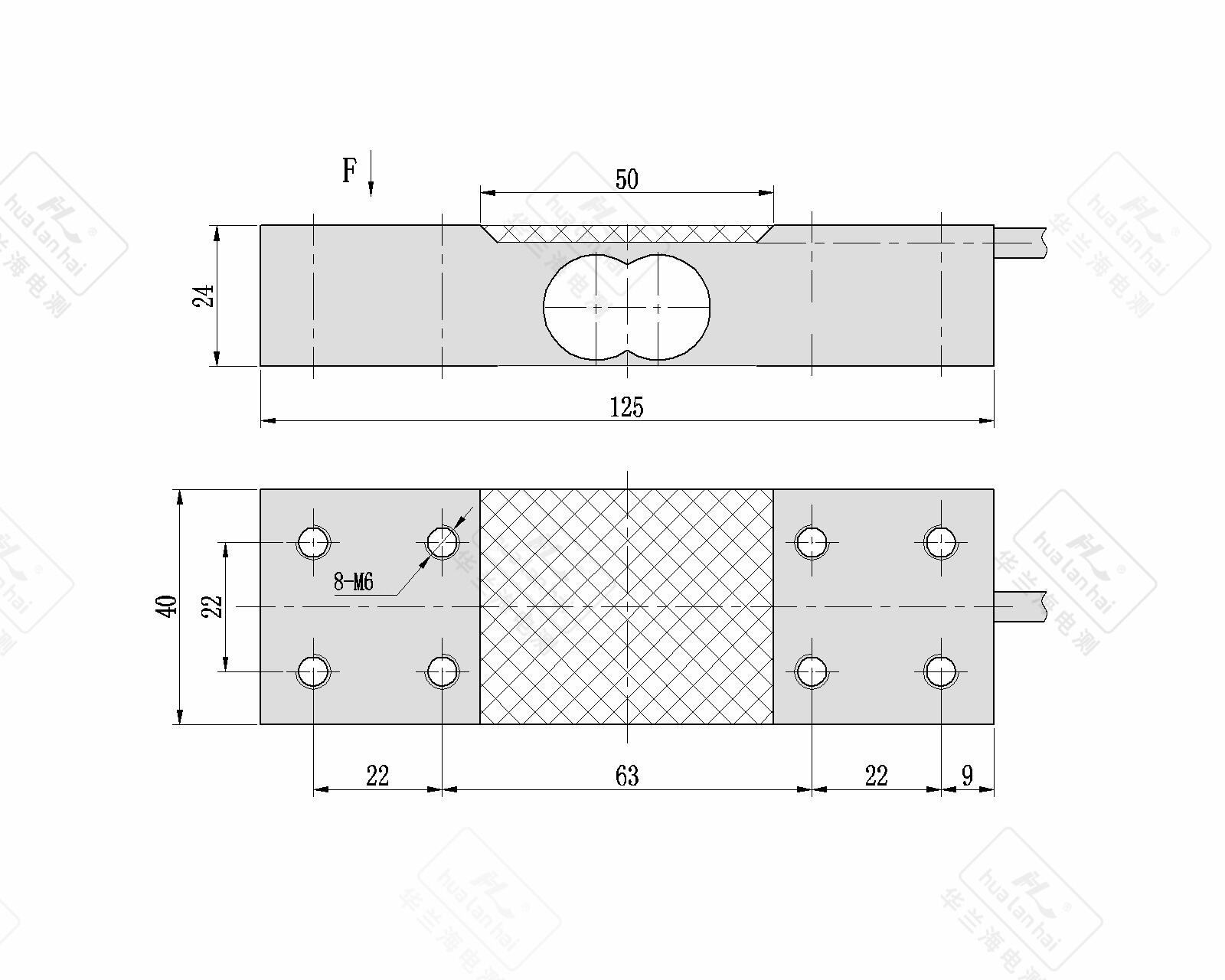

Detail Display

Parameters
