Parallel Beam Weighing Sensor CZL619EA

Product Introduction

The CZL619EA parallel beam load cell represents a precision force-measurement solution engineered for demanding light-load weighing applications. As a parallel beam weighing sensor, it operates on strain-resistive principles with a dual parallel beam elastomer core structure. When subjected to force, the elastic beam undergoes controlled bending deformation, driving integrated strain gauges to generate proportional resistance changes that convert into standardized electrical signals. This parallel beam load cell design combines exceptional accuracy under light loads, superior planar anti-eccentric load capacity, and convenient modular installation. These characteristics position the CZL619EA as the ideal choice for small-range weighing, planar force measurement, and embedded system integration across industrial, commercial, and scientific applications.

1. Product Features and Functions

Core Features

• Structural Design: The CZL619EA beam load cell features an integrated parallel beam architecture with beam thickness ranging from 2-15mm and length from 20-150mm. This design ensures uniform stress distribution concentrated in the beam's central section, supporting multi-directional planar forces. The parallel beam weighing sensor delivers outstanding anti-eccentric load capacity, withstanding planar off-center loads of ±20% to ±30% of rated capacity without stress blind spots.

• Precision Performance: The CZL619EA parallel beam load cell achieves accuracy classifications from C1 to C3, with mainstream models reaching C2 certification. Performance specifications include nonlinearity error ≤ ±0.01%FS, repeatability error ≤ ±0.005%FS, and zero drift ≤ ±0.002%FS/℃, delivering superior accuracy compared to competing sensors in light-load scenarios spanning 0.1kg to 500kg.

• Materials and Protection: The beam load cell elastomer utilizes aluminum alloy for lightweight applications, alloy steel for general industrial environments, or 304/316L stainless steel for corrosive settings. Surface treatments include anodizing, nickel plating, or passivation. Protection ratings typically reach IP65/IP67, with food-grade models achieving IP68 certification for demanding environments.

• Installation Compatibility: Standardized mounting holes accommodate both threaded and smooth installation methods via bolt fixing or adhesive bonding. Micro beam load cell models support embedded installation within confined spaces of desktop scales and automated equipment, enabling single-unit solutions for complete planar weighing requirements.

Core Functions

• Light Load Force Measurement: The industrial weighing sensor specializes in static and quasi-dynamic light-load applications with response times ≤ 4ms. The CZL619EA parallel beam load cell covers ranges from 0.1kg to 500kg, with typical applications concentrated in 1kg to 200kg, and micro models achieving ultra-small measurements of 0.01kg.

• Multiple Signal Output Types: This beam load cell provides analog outputs (4-20mA, 0-3V, 0-5V) and digital signals (RS485/Modbus RTU, I2C). Intelligent micro models integrate signal conditioning modules enabling direct connection to microcontrollers and IoT platforms with plug-and-play compatibility.

• Safety Protection Function: The CZL619EA industrial weighing sensor integrates wide-range temperature compensation (-10℃ to 70℃), overload protection at 150%-200% of rated load capacity, and anti-shock buffer structures on select models, ensuring reliable long-term operation.

• Long-Term Stability: This parallel beam weighing sensor demonstrates fatigue life ≥ 10⁷ load cycles with annual drift ≤ ±0.01%FS under rated load, making it suitable for continuous operation in supermarkets, laboratories, and industrial facilities.

2. Core Problems Solved

• Insufficient Precision in Light Load Scenarios: The CZL619EA beam load cell addresses excessive error in traditional sensors below 10kg through optimized beam stress design, maintaining measurement error within ±0.005%FS for food weighing and pharmaceutical counting applications requiring high precision.

• Inaccurate Measurement of Planar Eccentric Load: The parallel beam load cell's uniform stress distribution characteristic effectively compensates for measurement errors caused by off-center load placement, solving accuracy challenges in desktop scales and industrial sorting equipment.

• Difficulties in Equipment Integrated Installation: The compact beam load cell structure and flexible mounting options solve embedded installation requirements for automated and smart-home applications without requiring modifications to primary equipment structures, reducing integration costs.

• Poor Adaptability to Multiple Environments: Material and protection upgrades enable the industrial weighing sensor to perform reliably in humidity-rich environments like aquaculture facilities, corrosive chemical settings, and dust-laden flour processing operations.

• Cost Pressure on Small Equipment: A single CZL619EA parallel beam load cell satisfies complete planar weighing requirements, eliminating the need for multiple sensor combinations. Lightweight aluminum alloy construction further reduces product weight and manufacturing costs for budget-conscious equipment manufacturers.

3. User Experience

• Extremely Simplified Installation: Standardized mounting holes and positioning reference surfaces eliminate professional calibration tool requirements. The parallel beam load cell installs quickly with basic screwdrivers on surfaces with flatness ≤0.1mm/m, with single-person setup completion in under 10 minutes.

• Low Operation Threshold: The CZL619EA beam load cell supports one-key zeroing and single-point calibration requiring only a standard weight at 100% rated load. Digital models offer rapid software calibration, enabling non-technical personnel to complete setup procedures.

• Extremely Low Maintenance Cost: Fully sealed construction reduces dust and moisture infiltration, delivering annual failure rates ≤0.2%. Lightweight aluminum alloy models (minimum 5g) simplify replacement procedures without requiring disassembly of large equipment structures.

• Accurate Data Feedback: Static measurement data fluctuation remains within ±0.003%FS with zero hysteresis in quasi-dynamic scenarios. Digital models include zero drift compensation functionality, eliminating frequent recalibration requirements while maintaining exceptional data stability.

• Good Integration Adaptability: Micro parallel beam weighing sensor models feature minimal dimensions (minimum 20mm×10mm×5mm), embedding seamlessly within smart devices without affecting aesthetic designs. Signal outputs maintain compatibility with mainstream microcontrollers for straightforward integration.

4. Typical Application Scenarios

1) Civil and Commercial Light Load Weighing Instruments

• Supermarket pricing scales utilize the CZL619EA beam load cell as the core sensing element in 3-30kg platforms. Lightweight aluminum alloy construction combined with anti-eccentric load characteristics ensures ±1g accuracy consistency across all placement positions.

• Express delivery electronic scales (1-50kg models) employ stainless steel beam load cells for easy cleaning and fouling resistance. IP67-rated industrial weighing sensors withstand humid and dusty express outlet environments while supporting rapid continuous weighing operations.

• Kitchen and baking scales (0.01-5kg range) integrate micro parallel beam load cells achieving milligram-level accuracy. Digital signal outputs support high-definition displays, satisfying precise ingredient proportioning requirements.

2) Industrial Automation Equipment

• Automated sorting equipment installs the beam load cell beneath conveyor belts for real-time product weight detection, achieving ±0.1g sorting accuracy by linking with mechanical sorters. Food and hardware industry applications depend on this parallel beam weighing sensor technology.

• Assembly line material detection employs the CZL619EA industrial weighing sensor for shortage detection through weight analysis, such as battery presence verification in mobile phone assembly. Response times ≤4ms accommodate high-speed production pipelines.

• Packaging machine quantitative control utilizes C2-accuracy parallel beam load cells ensuring per-bag weight error ≤ ±0.2%, meeting metrological standards for small particle and powder packaging applications.

3) Food and Pharmaceutical Industries

• Pharmaceutical ingredient weighing applications employ 316L stainless steel CZL619EA beam load cells with GMP certification. Polished surfaces eliminate dead corners for straightforward disinfection and sterilization while maintaining ±0.01%FS accuracy for 0.1-10kg raw material measurements.

• Aquatic product and meat cutting operations depend on waterproof IP68-rated beam load cells withstanding direct washing in humid slaughterhouse and market environments where corrosion resistance proves essential.

4) Scientific Research and Experimental Equipment

• Laboratory reagent weighing utilizes ultra-small range parallel beam load cell models (0.01-1kg) satisfying high-precision requirements for microbial culture and chemical reagent proportioning in research environments.

• Medical equipment force measurement applications including rehabilitation devices and baby scales integrate lightweight aluminum alloy beam load cells, improving portability while delivering ±0.005%FS accuracy for clinical applications.

5) Intelligent Consumer Electronics and IoT Devices

• Smart home appliances embed micro parallel beam load cells for washing machine laundry detection and coffee maker bean bin monitoring, enabling intelligent equipment control and enhanced user experience through weight-based automation.

• IoT endpoints like smart shelves and intelligent trash cans employ low-power digital beam load cell models supporting NB-IoT wireless transmission for remote weight monitoring and management scenarios.

5. Usage Method (Practical Guide)

1) Installation Process

• Preparation: Clean the installation surface thoroughly, removing oil stains and burrs. Inspect the sensor and beam body for deformation or damage. Select appropriate mounting bolts compatible with your beam load cell material—avoid high-strength fasteners on aluminum alloy models.

• Positioning and Fixing: Install the parallel beam weighing sensor horizontally on load-bearing surfaces, ensuring vertical load application above the beam body while avoiding lateral impact. Apply torque wrench tension of 5-10N·m for aluminum alloy or 10-20N·m for alloy steel to prevent over-tightening damage.

• Wiring Specifications: For analog signals, follow color coding (red=power +, black=power -, green=signal +, white=signal -). Digital signals require pin-definition verification. Avoid pulling micro model cables and maintain 5cm cable redundancy.

• Protection Treatment: Seal cable connectors with waterproof tape in humid environments. Clean sensor surfaces promptly in food industry applications to prevent material corrosion.

2) Calibration and Adjustment

• Zero Calibration: Power on and preheat for 10 minutes before executing zero calibration, ensuring zero output remains within ±0.001%FS. Excessive deviation indicates installation surface flatness issues requiring correction.

• Load Calibration: Place standard weight equivalent to 100% rated load on the industrial weighing sensor, recording output values and correcting errors through meter or software adjustment. Verify error compliance with accuracy level specifications (C2 ≤ ±0.01%FS).

• Eccentric Load Test: Position identical weights at different load cell surface locations, observing reading consistency. Deviation should remain ≤ ±0.02%FS, otherwise adjust installation levelness.

3) Daily Maintenance

• Regular Inspection: Clean sensor surfaces weekly and verify wiring security monthly. Perform quarterly calibration on supermarket scales and monthly verification on laboratory equipment to maintain measurement integrity.

• Fault Handling: When data drifts occur, verify stable power supply voltage (5-24V DC, typically 5V for micro models). For abnormal readings, check overload conditions as aluminum alloy models experience permanent deformation when exceeded. Replace sensors when necessary.

6. Selection Method (Precise Matching of Requirements)

1) Core Parameter Determination

• Range Selection: Choose sensors at 1.2-1 times actual maximum weight (10kg objects require 12-14kg sensor capacity) to avoid insufficient precision caused by oversized ranges in light-load applications.

• Accuracy Level: Laboratory and pharmaceutical applications select C1-class models (±0.005%FS maximum error), industrial metrology chooses C2-class (±0.01%FS), and commercial weighing instruments specify C3-class (±0.02%FS) parallel beam load cells.

• Signal Type: Commercial scales implement analog signals (0-5V), intelligent devices employ digital signals (I2C/RS485), and IoT scenarios specify models with integrated wireless capabilities.

2) Environmental Adaptability Selection

• Temperature: Standard applications (-10℃ to 60℃) utilize regular CZL619EA models, low-temperature refrigeration scenarios require -20℃ to 0℃-rated variants, and high-temperature environments (60℃ to 80℃) need specialized high-temperature-compensated beam load cells.

• Medium: Dry environments specify aluminum alloy beam load cells, humid and food industry applications employ 304 stainless steel, and chemically corrosive settings require 316L stainless steel industrial weighing sensors.

• Protection Level: Indoor dry installations require ≥IP65 protection, humid flushing environments demand ≥IP67 ratings, and underwater or highly corrosive applications specify ≥IP68-certified parallel beam weighing sensors.

3) Installation and System Compatibility

• Installation Method: Desktop scales employ bolt-fix mounting, smart devices use embedded installation, and space-constrained applications prioritize micro models with length ≤30mm.

• Compatibility: Confirm sensor power supply voltage and signal types align with controller specifications. Verify pin definitions for micro models to prevent wiring errors and module damage.

4) Additional Requirement Confirmation

• Certification: Food and pharmaceutical industry applications require FDA/GMP certification, measurement scenarios need CMC certification, and exported products demand OIML compliance on the industrial weighing sensor.

• Special Functions: High-speed sorting selects response-time ≤3ms parallel beam load cells, low-power scenarios specify IoT models with sleep currents ≤10μA, and hygiene applications require integrated designs without threads or dead corners.

Summary

The CZL619EA parallel beam load cell delivers core advantages of light-load high precision, flat anti-bias load capacity, and convenient system integration. This industrial weighing sensor solves critical challenges including small-range measurement accuracy, material off-center loading errors, and integrated equipment installation requirements. User experience emphasizes simplified operation, minimal maintenance demands, and controlled total cost of ownership. When selecting your beam load cell, prioritize range, accuracy classification, installation space, and environmental requirements, then confirm system compatibility and specialized function needs. During operation, prevent overload and lateral impact while following strict calibration protocols to ensure sustained stable performance. The CZL619EA parallel beam weighing sensor represents the optimal solution for light-load and planar weighing scenarios across commercial scales, industrial automation, food and pharmaceutical processing, scientific research, and smart IoT applications.

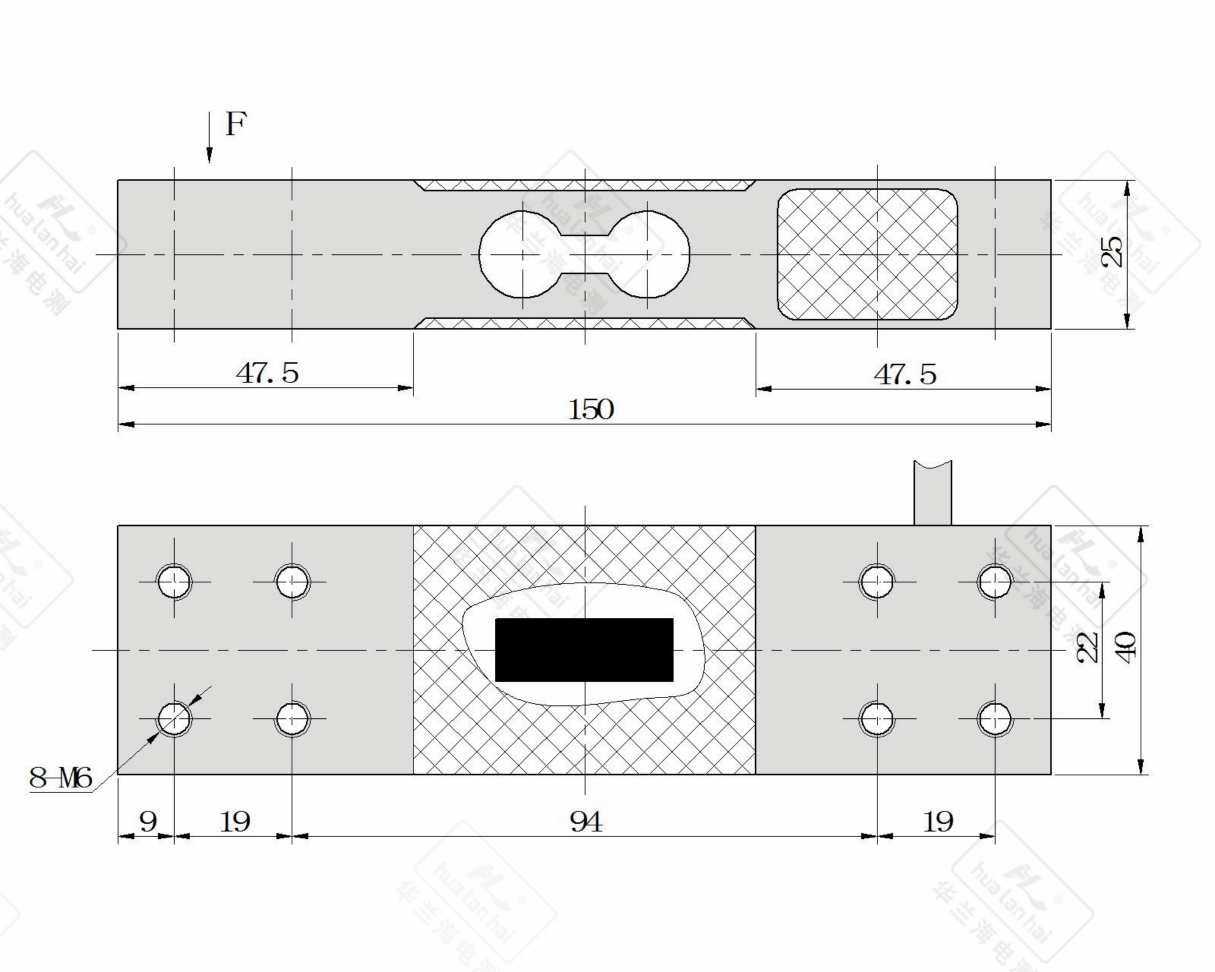

Detail Display

Parameters
