Cantilever Beam Weighing Sensor CZL803KB

The Cantilever Beam Weighing Sensor CZL803KB is a force-sensitive detection element based on the strain resistance principle, featuring a cantilever beam-shaped elastic body fixed at one end and suspended at the other as its core structure. When subjected to force, the bending deformation of the beam drives the strain gauge to produce resistance changes, which are then converted into standardized electrical signals. The CZL803KB load cell combines advantages such as medium-range load capacity, flexible installation space, and strong impact resistance, making it ideal for scenarios with concentrated forces of medium and low loads. This cantilever beam weighing sensor is widely deployed in industrial applications including material tanks, platform scales, and belt scales, with proven reliability across diverse industrial environments.

1. Product Features and Core Functions

Core Features

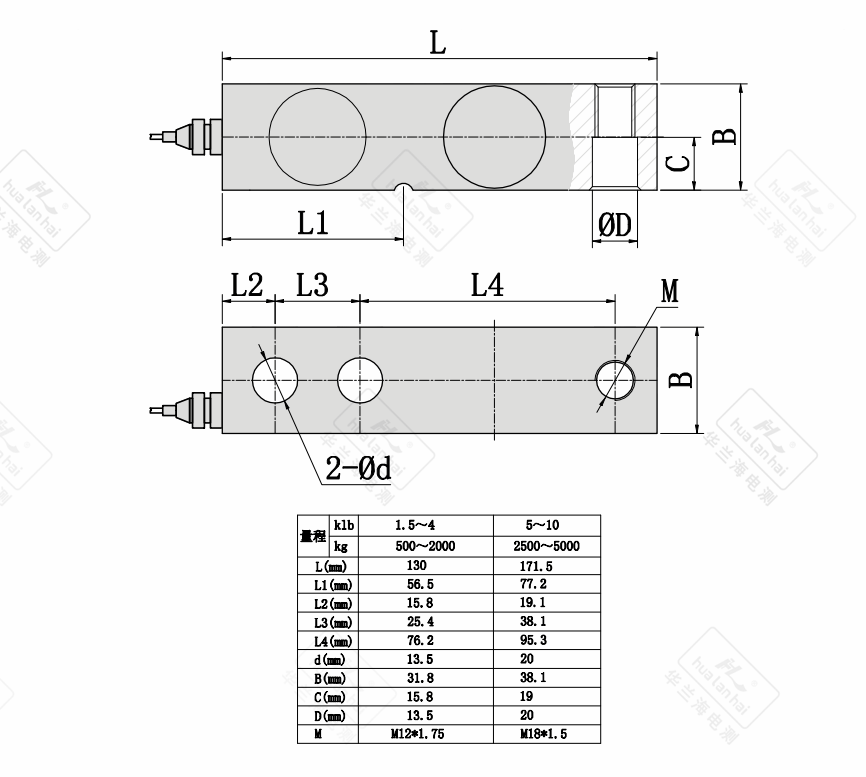

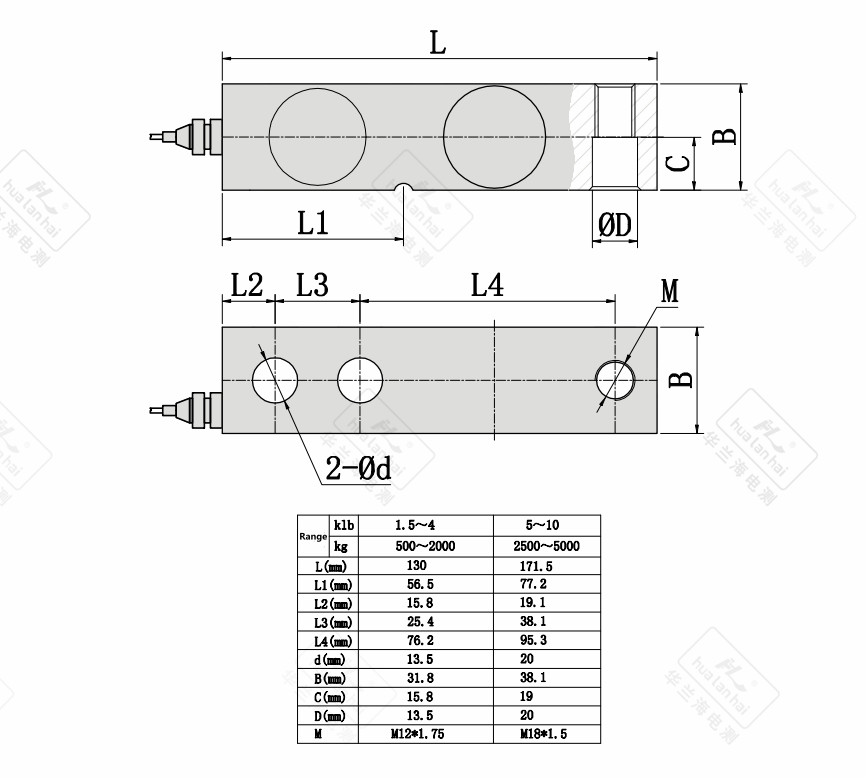

1)Structural Design: The CZL803KB adopts an integrated cantilever beam structure with beam thickness ranging from 8-50mm and length from 50-300mm, incorporating multiple mounting holes at the fixed end to enhance stability. The stress at the loaded end is concentrated in the middle section of the beam, supporting vertical downward concentrated load measurement with outstanding impact resistance capable of withstanding instantaneous impact loads of 200%-300% of the rated load capacity, and high stress transfer efficiency.

2) Precision Performance: The CZL803KB weighing sensor achieves accuracy classification covering C2-C6, with mainstream models reaching C3 level. Nonlinearity error is ≤±0.02%FS, repeatability error ≤±0.01%FS, and zero drift ≤±0.003%FS/℃, delivering accuracy stability superior to comparable sensors in medium-range scenarios spanning 50kg to 5 tons.

3) Materials and Protection: The elastic body of this load cell cantilever beam utilizes alloy steel (Q235, 40CrNiMoA) or 304/316L stainless steel, with surface treatment via shot blasting and rust removal plus nickel plating for alloy steel or passivation for stainless steel. Protection classification is typically IP66/IP67, with industrial heavy-duty models achieving IP68 rating, suitable for complex industrial environments including dust and humidity exposure.

4) Installation Compatibility: The fixed end supports bolt fastening or welding, while the loaded end connects via threads, flanges, or pressure heads, enabling multi-position installation at bottom or side of equipment. Single or multiple CZL803KB sensors can be deployed in parallel arrangements, delivering high combination flexibility for diverse application requirements.

Core Functions

1) Medium-Range Force Measurement: The CZL803KB sensor focuses on static and quasi-dynamic weighing of medium and low loads with response time ≤7ms, covering a range from 50kg to 20 tons. Conventional applications concentrate in the 1-10 ton range, while some heavy-duty models extend to 50 tons, addressing the majority of industrial medium-load measurement scenarios.

2) Standardized Signal Output: This cantilever beam weighing sensor provides analog signals (4-20mA, 0-5V, 0-10V) and digital signals (RS485/Modbus RTU), with some industrial-grade models supporting HART protocol, enabling direct connection to PLC, DCS, and weighing management systems without requiring additional signal conditioning modules.

3) Safety Protection Function: The CZL803KB integrates wide-temperature range compensation (-20℃~80℃), includes overload protection at 150%-250% of rated load (up to 300% for alloy steel models), and explosion-proof variants carry certification for Ex d IIB T4/Ex ia IIC T6 ratings, with certain models featuring cable anti-pull-off connectors.

4) Long-Term Reliability: Fatigue life exceeds 10⁶ load cycles, with annual drift ≤±0.015%FS under rated load, making the CZL803KB load cell suitable for extended continuous operation in industrial production lines and material tank monitoring applications.

2. Core Problems Solved

1) Difficulty in Edge Installation of Equipment: The "one-end fixed" structure of the CZL803KB cantilever beam weighing sensor directly addresses the limitation of traditional sensors requiring symmetrical installation, enabling direct installation on the bottom edge or side of equipment brackets, solving insufficient installation space challenges in silos and platform scales.

2) Medium-Range Concentrated Load Measurement: Within the 1-10 ton medium-range interval, optimized beam stress design in the CZL803KB controls concentrated load measurement error within ±0.02%FS, meeting accuracy requirements for industrial batching and finished product weighing applications.

3) Damage from Dynamic Impact Load: The buffer deformation characteristics of the cantilever beam elastomer in the CZL803KB effectively absorb instantaneous impact from material drop and equipment vibration, preventing damage and accuracy drift commonly experienced with traditional sensors in dynamic scenarios.

4) Multi-Sensor Combined Weighing: CZL803KB sensors demonstrate excellent batch consistency (error ≤±0.01%FS), supporting 2-4 parallel combination weighing arrangements and solving weight superposition and accuracy uniformity challenges in distributed force scenarios like large platform scales and silos.

5) Adaptability to Harsh Industrial Environments: Through strengthened alloy steel material and IP67+ protection design, the CZL803KB load cell addresses sensor corrosion and signal abnormality issues in dust-laden (mining), humid (chemical plants), and mildly corrosive (electroplating) environments.

3. User Experience

1) High Installation Flexibility: Standardized mounting holes at the fixed end ensure compatibility with various equipment structures, eliminating specialized positioning tool requirements. Installation and calibration complete using only a level, with single-person installation and wiring of a CZL803KB sensor achievable within 20 minutes.

2) Simple Operation and Calibration: The CZL803KB supports one-key zeroing through the weighing instrument interface, with three-point calibration (25%, 50%, 100% of rated load) well-suited for medium-range applications. Digital models enable remote parameter configuration and calibration completion via host computer software.

3) Controllable Maintenance Cost: The fully sealed structure minimizes dust intrusion, maintaining average annual failure rates ≤0.5%. Core components (strain gauges, terminals) feature independent packaging, allowing localized fault repair without complete sensor replacement.

4) Stable Data Feedback: Static measurement data fluctuation remains ≤±0.005%FS with responsive quasi-dynamic performance (belt conveyor applications), while digital models include built-in fault diagnosis providing real-time alerts for conditions like overload and under-voltage.

5) Strong Combination Adaptability: Multiple CZL803KB sensors connected in parallel support automatic load distribution, eliminating equalizer requirements and adapting to varying platform scale and silo design specifications, reducing system integration complexity.

4. Typical Application Scenarios

1 Weighing of Industrial Silos/Hoppers
• Chemical Raw Material Tanks: The CZL803KB weighing sensor measures 1-10 ton chemical storage tanks with 2-4 sensors symmetrically installed on tank bottom brackets. Alloy steel construction provides corrosion resistance, IP67 protection suits humid workshop environments, and ±0.02%FS accuracy ensures precise inventory measurement.
• Feed/Flour Hoppers: In grain processing industries, CZL803KB load cell cantilever beam sensors install on hopper support legs, with anti-impact design handling material drop, coordinating with control systems for accurate feeding control.

2) Weighing of Belt Scales/Conveyors
• Industrial Belt Scales: The CZL803KB sensor measures bulk material conveying in mines and power plants, installed on idler brackets bearing combined belt and material loads. Response time ≤7ms suits continuous conveying with ±0.1% measurement accuracy.

• Conveyor Integration: CZL803KB sensors embed at conveyor bottoms for real-time in-line weighing and sorting in electronics and food industries, detecting product weight and interfacing with sorting mechanisms, meeting mass production accuracy needs.

3) Small and Medium-Sized Truck Scales/Platform Scales

• Workshop Platform Scale: The 1-5 ton CZL803KB weighing sensor configuration uses four sensors at platform corners with fixed-end ground fastening and load-bearing end supporting scale weight. Anti-eccentric load capacity ensures consistent accuracy across scale positions.

• Forklift Truck Scale: Portable forklift weighing implements CZL803KB load cell cantilever beam sensors on fork carriages bearing vertical good loads, constructed from impact-resistant alloy steel matching dynamic forklift operation requirements.

4) Force Control of Automation Equipment

• Pressure Monitoring of Stamping Equipment: The CZL803KB sensor manages stamping machine pressure between stamping head and machine body, providing real-time force feedback and preventing mold overload damage, with ±0.01%FS accuracy ensuring stamping quality.

• Force Control of Robot Assembly: Industrial robot assembly processes integrate CZL803KB sensors at robotic arm ends, detecting assembly pressure and adjusting action force for automotive parts and electronic component assembly.

5) Special Industry Applications

• Explosion-Proof Scenarios: Coal mining and oil/gas industries employ explosion-proof CZL803KB weighing sensor variants with Ex d IIB T4 certification, installed in explosion-proof weighing enclosures meeting explosive environment safety standards.

• Corrosive Environments: The CZL803KB load cell with 316L stainless steel construction and surface passivation resists acid-alkali corrosion in electroplating and chemical industries for solution concentration detection and reagent weighing.

5. Usage Instructions (Practical Guide)

1) Installation Process

• Preparation: Clean installation surface (ensuring flatness, oil-free condition, with flatness error ≤0.1mm/m), inspect sensor appearance for beam deformation or cable damage, and select M12-M24 specification mounting bolts according to range requirements.

• Positioning and Fixing: Bolt the sensor fixed end to equipment bracket ensuring firm attachment without looseness; position the load-bearing end in close contact with load structure, ensuring vertical load application on the beam body while avoiding lateral and torsional forces.

• Wiring Specifications: For analog signals, follow "red - power +, black - power -, green - signal +, white - signal -" wiring; for digital signals, connect per Modbus protocol pin assignments; maintain ≥15cm distance from interference sources such as frequency converters.

• Protection Treatment: Add rain covers for outdoor installation; seal cable joints with waterproof boxes in humid environments; apply anti-corrosion coating to non-load-bearing sensor surfaces in corrosive areas.

2) Calibration and Debugging

• Zero Calibration: Power on and preheat 30 minutes, then execute "zero calibration" ensuring zero output falls within ±0.002%FS range. Investigate installation firmness and lateral force if deviation exceeds limits.

• Load Calibration: Place standard weights at 25%, 50%, and 100% of rated load sequentially, recording output values at each point and correcting linear error through calibration software to achieve error ≤allowable C3 class value (±0.02%FS).

• Linear Test: Select 5 evenly-distributed test points across the range, verify output signal linearity with linear error ≤±0.015%FS ensuring full-scale accuracy stability in mid-range.

3) Routine Maintenance

• Regular Inspection: Clean sensor surface dust and oil monthly, check bolt tightness; perform zero-point calibration quarterly and complete full-scale calibration plus performance testing annually.

• Fault Handling: When data drifts, verify power supply voltage stability (12-24V DC); for abnormal readings, check overload conditions (exceeding 300% of rated load risks damage) or beam deformation, replacing the sensor if necessary.

6. Selection Method (Precisely Match Requirements)

1) Determination of Core Parameters

• Range Selection: Select a CZL803KB model with range 1.3-1.6 times actual maximum load (e.g., for 5-ton maximum load, select 6.5-8 ton sensor), providing impact load accommodation and safety margin.

• Accuracy Class: Choose Class C3 (error ≤±0.02%FS) for industrial metrology, Class C6 (error ≤±0.03%FS) for general monitoring, and dynamic weighing applications require C3 with response time ≤7ms.

• Signal Type: Select analog signals (4-20mA) for traditional control systems, digital signals (RS485) for intelligent systems, and wireless transmission models for industrial IoT scenarios.

2) Environmental Adaptability Selection

• Temperature: Ordinary models suit normal scenarios (-20℃~60℃), high-temperature compensation models handle elevated scenarios (60℃~120℃), and low-temperature resistant models serve cold scenarios (-40℃~-20℃).

• Medium: Select alloy steel (nickel-plated) for dry environments, 304 stainless steel for humid/slightly corrosive conditions, and 316L stainless for highly corrosive environments with acid-base solutions.

• Protection Class: ≥IP66 for indoor dry spaces, ≥IP67 for outdoor/humid areas, and ≥IP68 for underwater or dust-intensive environments.

3) Installation and System Compatibility

• Installation Method: Select bolt fixing for bottom equipment installation and flange connection for side installation; multi-sensor weighing systems require digital models supporting address coding to prevent signal conflicts.

• Compatibility: Confirm sensor signal matches existing meter/PLC communication protocol; for Siemens PLC environments, prioritize Profibus protocol-supporting models to minimize integration difficulty.

4) Confirmation of Additional Requirements

• Certification Requirements: Explosion-proof applications require corresponding certification (Ex d I for coal mines, Ex ia IIC T6 for chemical industry), metrology applications need CMC certification, and export products require OIML certification.

• Special Features: Dynamic weighing requires impact-resistant enhanced types (impact load ≥300%FS); remote monitoring applications need NB-IoT/LoRa module models; high-temperature scenarios require dedicated temperature compensation chip models.

Summary

The Cantilever Beam Weighing Sensor CZL803KB demonstrates core advantages of "medium-range precision, flexible installation, and strong impact resistance," primarily addressing edge installation challenges, concentrated load measurement requirements, and dynamic impact protection in industrial medium-load scenarios. User experience emphasizes convenient installation, worry-free maintenance, and excellent system compatibility. When selecting a CZL803KB model, first clarify four core requirements: range, accuracy, installation location, and environmental conditions, then base decisions on system compatibility and additional functionality needs. During operation, avoid lateral forces and overload conditions, strictly following regular calibration schedules to ensure long-term stable CZL803KB sensor performance. This load cell cantilever beam sensor suits industrial material tanks, belt scales, small and medium-sized weighing instruments, and similar applications, representing the mainstream sensing solution for low and medium-load industrial weighing requirements across diverse industrial sectors.
