Foil Resistance Strain Gauge 3HA Series

Product Introduction
The Hualan Hai Foil Resistance Strain Gauge 3HA Series represents a sophisticated solution for precision strain measurement across diverse industrial applications. This advanced foil resistance strain gauge comprises four essential components: a precision base plate, a highly sensitive grid structure, a specialized adhesive layer, and a protective surface coating. Each unit is meticulously crafted from ultra-thin 0.005mm metal foil utilizing precision etching technology, enabling exceptional detection capabilities for subtle surface deformations in structural components and mechanical systems. The 3HA series strain gauge delivers outstanding measurement accuracy and reliability, making it the preferred choice for engineers and technicians requiring dependable strain data.

The foil resistance strain gauge technology employed in this series provides superior sensitivity and stability compared to conventional measurement methods. The ultra-thin metal foil design is engineered to respond instantaneously to mechanical stress and strain, translating minute physical deformations into precise electrical signals. This advanced precision strain measurement capability ensures that even the smallest changes in structural integrity are captured and accurately recorded, providing critical data for quality assurance, safety monitoring, and performance optimization across multiple industrial sectors.

The 3HA series strain gauge offers exceptional versatility through its fully customizable resistance specifications, accommodating values ranging from 60 to 5000 ohms. This wide resistance range enables seamless integration into diverse measurement systems and equipment configurations, allowing procurement teams to select the exact foil resistance strain gauge specifications required for their specific applications. Whether your facility requires lower impedance sensors for high-current applications or higher impedance options for sensitive measurement environments, the 3HA series delivers the flexibility and performance demanded by modern industrial operations.

Applications and Industrial Use Cases
The foil resistance strain gauge 3HA series finds extensive deployment across multiple critical industrial applications. In weighing systems, this precision strain measurement device provides the foundational technology for accurate load cells and weight measurement equipment used in warehousing, manufacturing, logistics, and quality control operations. The industrial strain sensor capabilities of the 3HA series enable reliable weight data collection for inventory management and commercial transactions.

Industrial force measurement applications benefit significantly from the advanced foil resistance strain gauge technology integrated into the 3HA series. Equipment manufacturers utilize this industrial strain sensor to develop force transducers for tensile testing machines, compression testing equipment, and multi-axis force measurement systems. The precision strain measurement delivered by this gauge ensures that force data remains accurate and consistent across extended operational periods, critical for research facilities, material testing laboratories, and production quality verification processes.

Stress analysis testing represents another vital application domain for the 3HA series strain gauge. Structural engineers and material scientists employ this precision strain measurement instrument to evaluate material properties, identify stress concentration points, and validate structural designs before full-scale manufacturing or deployment. The advanced foil resistance strain gauge technology provides the sensitivity and accuracy required for comprehensive stress mapping across complex geometries and diverse material compositions.

The 3HA series also excels in high-temperature melt pressure sensor applications, where conventional sensors prove inadequate. This industrial strain sensor maintains stable performance in elevated temperature environments, making it invaluable for plastic injection molding, metal casting, and other high-temperature manufacturing processes. The foil resistance strain gauge design ensures reliable pressure monitoring and equipment control even under challenging thermal conditions that would compromise standard measurement devices.

Technical Characteristics and Design Features
The precision strain measurement capability of the 3HA series stems from its innovative construction methodology and material selection. The 0.005mm-thick metal foil represents a breakthrough in sensor miniaturization, allowing the foil resistance strain gauge to detect minute deformations with exceptional fidelity. This ultra-thin configuration facilitates easy installation on structural components without introducing measurement artifacts or compromising the structural integrity of tested materials.

The sensitive grid structure within each 3HA series strain gauge is engineered through precision etching processes that create intricate conductor paths. These paths respond proportionally to mechanical strain, generating electrical signal variations that correlate directly with structural deformation. This design ensures that the foil resistance strain gauge delivers linear output characteristics and minimal hysteresis, essential requirements for accurate industrial strain sensor applications.

The specialized adhesive layer integrated into the 3HA series foil resistance strain gauge ensures reliable bonding to target surfaces while maintaining electrical isolation and thermal stability. The protective coating shields the sensitive grid and adhesive components from environmental contamination, moisture ingress, and mechanical damage, extending the operational lifespan of each precision strain measurement device.

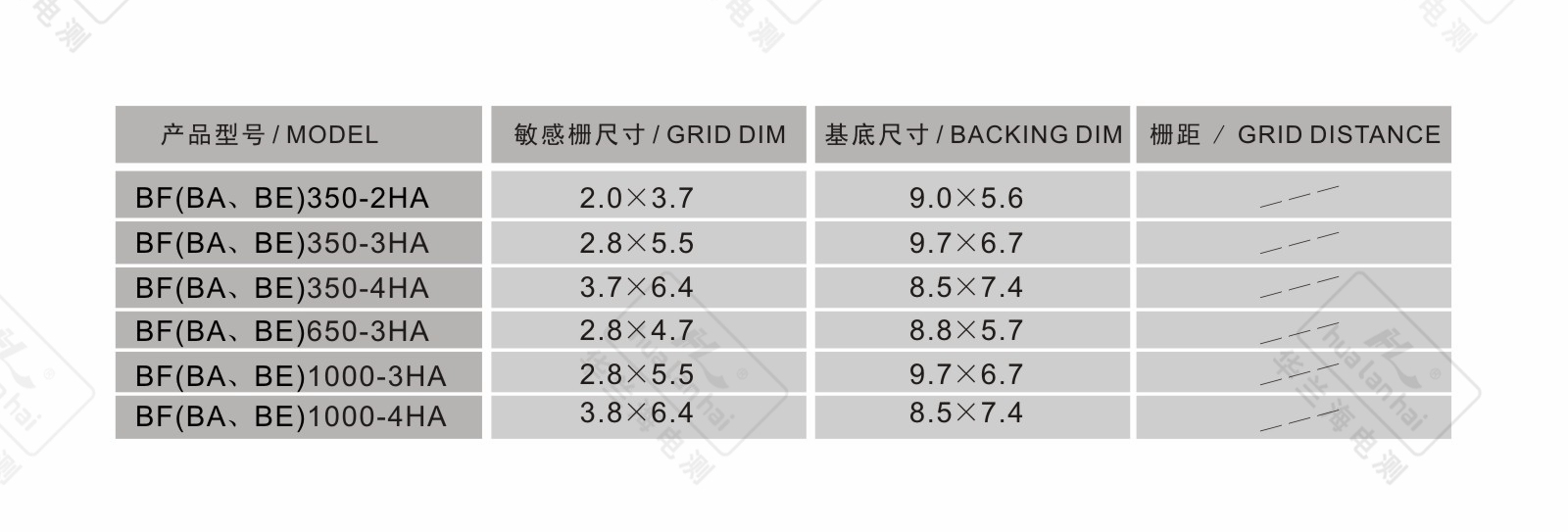

Detail Display

Value Proposition for Industrial Buyers
Procurement professionals selecting precision strain measurement solutions benefit from the proven performance characteristics of the Hualan Hai Foil Resistance Strain Gauge 3HA series. This industrial strain sensor technology delivers exceptional return on investment through extended service life, minimal maintenance requirements, and superior accuracy compared to alternative measurement methodologies. The customizable resistance specifications enable cost-effective integration into existing equipment platforms, eliminating the need for expensive system redesigns or equipment upgrades.

The 3HA series foil resistance strain gauge represents a strategic choice for organizations prioritizing measurement reliability and operational efficiency in demanding industrial environments.
