Foil Resistance Strain Gauge HA Series

Product Introduction

The Hualan Hai Foil Resistance Strain Gauge HA Series represents a sophisticated solution for precise strain measurement and deformation detection in industrial applications. This foil resistance strain gauge consists of four essential components: a precision base plate, an ultra-sensitive grid element, a specialized adhesive layer, and a protective coating system. Manufactured from exceptionally thin 0.005mm-thick metal foil through advanced etching technology, the HA series strain gauge delivers outstanding measurement accuracy for detecting even minimal surface deformations in structural components.

The foil resistance strain gauge HA Series is engineered with customizable resistance values ranging from 60 to 5,000 ohms, enabling seamless integration into diverse measurement systems and applications. The ultra-thin design of this strain gauge sensor ensures minimal interference with structural integrity while maintaining exceptional sensitivity and reliability. Each unit undergoes rigorous quality control to guarantee consistent performance across all measurement scenarios and environmental conditions.

Key Design Features

The foil strain measurement technology employed in the HA Series offers several distinct advantages for industrial strain gauge applications. The precision-etched metal foil grid provides exceptional linearity and repeatability, critical factors for accurate data acquisition in research and production environments. The bonding adhesive has been formulated to maintain consistent performance across varying temperatures, while the protective coating shields the sensitive measurement elements from environmental contamination and mechanical damage.

The compact dimensions and flexible sizing options of this strain gauge sensor accommodate applications ranging from small component analysis to large structural monitoring projects. The HA series strain gauge's design philosophy prioritizes ease of installation while maintaining the precision required in demanding industrial applications. The robust construction ensures long-term reliability without requiring specialized maintenance or environmental conditioning beyond standard laboratory practices.

Extensive Application Capabilities

This foil resistance strain gauge finds extensive applications across multiple industrial sectors. In weighing systems and force measurement applications, the HA series strain gauge delivers high-precision output signals directly proportional to applied loads. For industrial stress analysis testing, the strain gauge sensor provides accurate stress distribution mapping, enabling engineers to optimize structural designs and material specifications. In high-temperature melt pressure sensors, the foil strain measurement technology maintains measurement accuracy under extreme thermal conditions, making it ideal for plastic injection molding, extrusion processes, and industrial furnace monitoring.

Additional applications include material testing equipment, biomechanical research systems, automotive suspension analysis, civil infrastructure monitoring, and aerospace component validation. The versatility of the foil resistance strain gauge HA Series makes it an indispensable tool for any facility requiring precise deformation measurement and structural analysis capabilities. Whether deployed in laboratory environments or harsh industrial settings, this strain gauge sensor delivers consistent, reliable performance that meets the exacting standards of modern manufacturing and research operations.

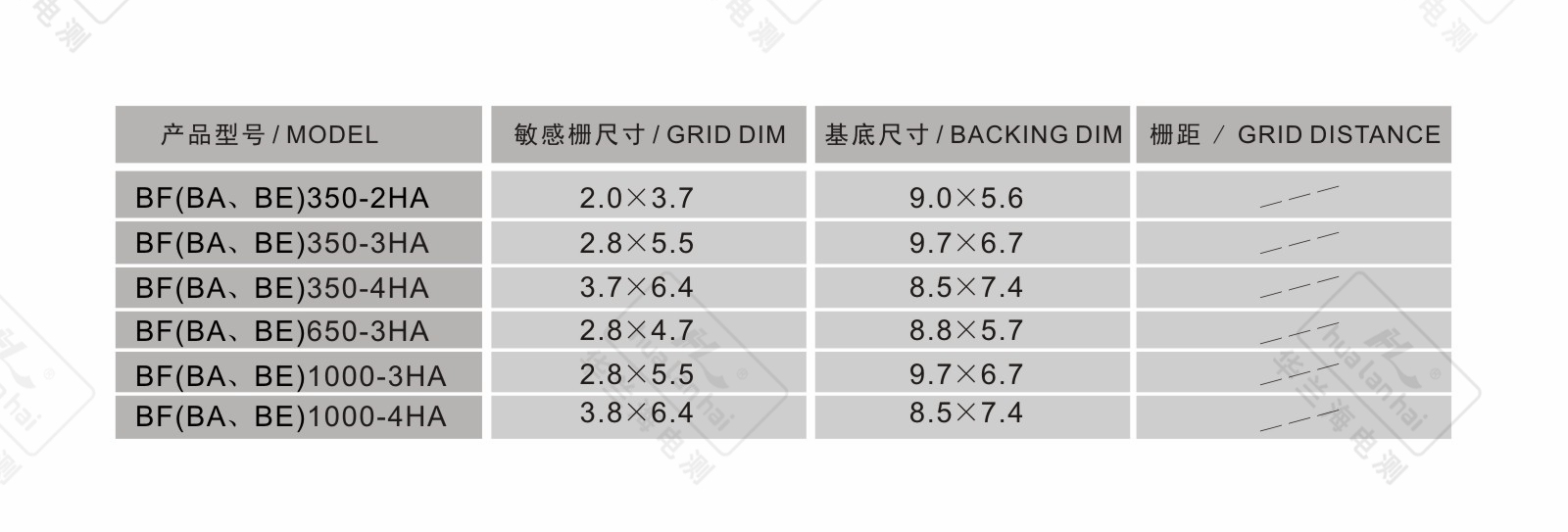

Technical Specifications

The foil strain measurement units are available in multiple configurations to accommodate specific application requirements. The grid dimensions, backing plate sizes, and resistance values have been carefully engineered to provide optimal performance for different measurement scenarios. Engineers and procurement specialists can select from the comprehensive range of HA series strain gauge models to match exact application requirements, dimensional constraints, and signal conditioning specifications.

Why Choose HA Series Strain Gauge

When selecting a foil resistance strain gauge for demanding industrial applications, precision and reliability are paramount. The HA series strain gauge from Hualan Hai combines proven manufacturing expertise with advanced material science to deliver superior measurement performance. The foil strain measurement approach provides exceptional linearity across the full measurement range, ensuring accurate data for critical decision-making and quality assurance processes.

Investment in the strain gauge sensor technology represents a commitment to measurement excellence and operational efficiency. Whether your facility focuses on research development, quality control, or production monitoring, the foil resistance strain gauge HA Series provides the foundation for confident, accurate measurements. Contact our technical team to discuss your specific strain gauge requirements and identify the optimal HA series configuration for your application.
