Aluminum Micro Sensor CZL616C

Product Introduction

The Aluminum Micro Sensor CZL616C represents an advanced breakthrough in compact weight measurement technology, engineered specifically for precision weighing in confined spaces. This micro load cell sensor is a compact weight measurement device developed based on strain gauge effect principles, converting weight signals into measurable electrical signals through innovative micro-sensitive structures. Typically measuring just a few to dozens of cubic centimeters, the CZL616C micro load cell sensor operates across a range from grams to kilograms, combining exceptional compact size with high precision accuracy. As an essential component for lightweight and confined-space weighing applications, the Aluminum Micro Sensor CZL616C is widely deployed in medical equipment, consumer electronics, smart devices, and scientific research testing, serving as the critical foundation for weight sensing in micro-scale devices where traditional sensors cannot fit or function effectively.

1. Core Features And Functions

1) The Core Feature of Miniaturization

• Ultra-compact and lightweight: The CZL616C aluminum load cell sensor features standard sizes ranging from 5mm×5mm×2mm to 30mm×20mm×10mm, with some custom variants shrinking to millimeter-level dimensions and weighing just 0.1g to 5g. This allows seamless integration into tight spaces like smartwatches and micro-pump housings without compromising the device's structural integrity.

• Compact design: Most CZL616C sensor models feature integrated packaging, combining sensitive components and signal conditioning circuits within a micro-sized housing. Some variants support slim mounting options like surface-mount technology (SMT) or lead-type connections, compatible with direct PCB soldering or snap-fit mounting.

2) Weighing Performance Advantages

• Wide-range precision measurement: The aluminum micro sensor system covers a range from 0.1g to 50kg, with core measurement accuracy of ±0.01%FS to ±0.1%FS and resolution up to 0.001g. It meets both laboratory microgram-level sample weighing requirements and consumer electronics gram-level weight monitoring needs with exceptional reliability.

• Rapid dynamic response: With a response time of ≤10ms, the CZL616C micro load cell captures instantaneous weight changes in real time, such as high-speed light-load weighing for automated sorting lines and drip rate monitoring for medical infusion, thus preventing measurement deviations caused by signal delays.

• Stable anti-interference capability: The built-in temperature compensation module (operating in -10℃ to 60℃) counteracts environmental temperature fluctuations. Featuring differential signal output or electromagnetic shielding, the aluminum load cell sensor effectively resists internal circuit interference, ensuring data stability and measurement consistency.

3) Integration and Compatibility Features

• Multi-output compatibility: The CZL616C sensor supports analog signals (0-5V, 4-20mA) and digital signals (I2C, SPI, UART), enabling direct interfacing with microcontrollers, single-chip microcontrollers, and compact PLCs without requiring additional signal amplification modules.

• Material and medium compatibility: The sensitive components of this aluminum micro sensor are primarily made of 316L stainless steel, titanium alloy, or engineering plastics, with corrosion-resistant casings. These components are compatible with various weighing media including medical fluids, food ingredients, and electronic components, effectively preventing contamination or corrosion damage.

• Low-power performance: Static power consumption ≤10mA, dropping to 10μA in sleep mode, making the CZL616C aluminum load cell ideal for battery-powered portable devices (e.g., handheld scales, smart wearables) to extend battery life significantly.

2. Core Industry Pain Points Addressed

In light-load and miniaturized weighing scenarios, traditional weighing sensors face challenges like excessive size, high power consumption, insufficient accuracy, and integration difficulties. The CZL616C micro load cell specifically addresses these core pain points:

• Challenges in micro-device integration: The CZL616C aluminum load cell sensor addresses the inability of traditional sensors to be embedded in compact devices, such as weight monitoring functions in smart wristbands or liquid dosage control in miniature medical pumps, by achieving both weighing functionality and miniaturization through innovative compact design.

• The problem of light-load and high-precision measurement: The CZL616C solves insufficient accuracy of traditional sensors in gram and milligram-scale weighing, such as laboratory micro sample weighing and electronic component pin weight detection, providing reliable data for precision production and scientific research applications.

• Power efficiency challenges for portable devices: This aluminum micro sensor addresses short battery life caused by high power consumption in traditional sensors, such as handheld parcel scales and outdoor sample collection weighing equipment, with low-power characteristics extending single-use duration.

• Complex installation space constraints: The CZL616C micro load cell addresses weighing requirements in confined or structurally unique environments, such as internal component weighing for automated equipment and fluid weight monitoring in pipelines, utilizing surface-mount or embedded installation solutions to overcome spatial limitations.

• Multi-scenario signal compatibility: This aluminum load cell sensor addresses the mismatch between traditional sensor signals and microcontroller units. The digital signal output model can directly interface with microcontrollers (MCUs), simplifying circuit design for compact devices and reducing R&D costs significantly.

3. Highlights of User Experience

• High integration convenience: Standardized pin layout and package dimensions of the CZL616C enable direct PCB soldering or snap-fit fixation without complex mechanical structures, reducing integration time to under 30 minutes and significantly boosting equipment production efficiency.

• The debugging process is straightforward: Digital signal models allow one-click calibration of zero point and range via commands, while analog signal models feature excellent linearity. With just basic circuit debugging, the CZL616C can be deployed immediately, significantly lowering the technical barrier for R&D teams.

• Highly reliable performance: The temperature compensation and anti-interference design ensures data drift ≤±0.05%FS/year, eliminating the need for frequent calibration in portable or embedded applications and significantly reducing maintenance requirements for this micro load cell.

• Flexible selection: A wide range of CZL616C models with different measurement ranges, signal types, and installation methods enables selection directly based on equipment size, power supply voltage, and precision requirements. Some manufacturers also support small-batch customization to meet personalized needs.

• The cost control is reasonable: the unit cost can be controlled in dozens to hundreds of yuan when purchasing in batches, which is more than 50% lower than customized micro sensing schemes. Meanwhile, the low power consumption characteristics of the aluminum micro sensor reduce the overall energy consumption cost of the equipment.

4. Typical Use Cases

1) Health Care

• Infusion monitoring devices: Integrated into infusion pumps, the CZL616C aluminum load cell monitors real-time changes in solution weight, calculates infusion rates, and triggers alarms when the solution is nearly depleted to prevent empty bottles, as seen in precision infusion control in intensive care units.

• Rehabilitation and nursing equipment: including smart rehabilitation scales and prosthetic weight sensors, which monitor weight fluctuations during elderly rehabilitation training or provide force feedback for prosthetics, thereby enhancing rehabilitation safety.

• Laboratory equipment: Using pipettes and biochemical analyzers to measure reagent or sample weights, ensuring precise sample addition, such as micro-sample weighing for COVID-19 testing kits using the micro load cell technology.

2) Consumer Electronics and Smart Wearables

• Smart wearables: Integrated into fitness trackers and smartwatches, the CZL616C aluminum micro sensor enables indirect measurement of body weight and body fat, as well as real-time force monitoring during exercise—such as analyzing foot strike weight during running.

• Smart home devices: Used for ingredient weighing in smart kitchen scales and coffee machines, such as precise measurement of coffee powder to control brewing concentration; or overflow monitoring in smart trash bins (determining waste capacity through weight).

• Portable weighing devices, such as mini parcel scales and luggage scales, feature compact designs and low power consumption, enabling users to carry them conveniently while measuring item weights in real time with this micro load cell.

3) Industrial Automation and Micro-manufacturing

• Electronic component manufacturing: In SMT (Surface Mount Technology) assembly lines, the CZL616C sensor monitors the weight of components like chips and resistors to screen out defective items; or in semiconductor packaging, measures the weight of encapsulant to ensure packaging quality.

• Micro-automation equipment: An end effector for micro-assembly robots that uses the CZL616C aluminum load cell to sense component weight for determining successful grasping, such as in the weighing detection of smartphone camera modules.

• Fluid control devices: embedded in micro metering pumps and fuel injectors, the micro load cell monitors fluid delivery by weight, such as precise fuel weighing in fuel injection systems, to ensure combustion efficiency.

4) Research and Testing Fields

• Materials science research: Measuring the weight of tiny material samples (e.g., nanomaterials, thin films) or weight changes during tensile or compressive processes to provide data for performance analysis using precision micro load cell technology.

• Environmental monitoring equipment: In micro water quality monitors and air sampling devices, the weight of collected samples is measured to calculate pollutant concentrations, such as weight analysis of atmospheric particulate matter after sampling.

5) Logistics and Retail Sectors

• Micro sorting system: At the end of the automated sorting line for express delivery, the CZL616C aluminum micro sensor weighs small parcels to classify them by weight; or at self-service checkout counters in unmanned supermarkets, it identifies products through weighing (with the aid of a weight database).

• Retail weighing equipment, such as jewelry scales and precious metal scales, is designed for precise measurement of valuable items like gold and diamonds. Compact in size, these devices can be easily placed on counters without taking up much space using micro load cell technology.

Summary

The Aluminum Micro Sensor CZL616C, with its core strengths of "compact size, high precision, and low power consumption," has overcome the spatial and measurement limitations of traditional weighing devices. This micro load cell precisely meets the light-load weighing demands in fields such as medical, consumer electronics, and micro-manufacturing. The convenient integration, stable performance, and cost-effective design of the CZL616C aluminum load cell sensor not only drive functional upgrades in micro-devices but also provide reliable support for achieving "precision, miniaturization, and intelligence" in weighing across industries. As a result, the CZL616C has become an indispensable component of modern sensing technology solutions.

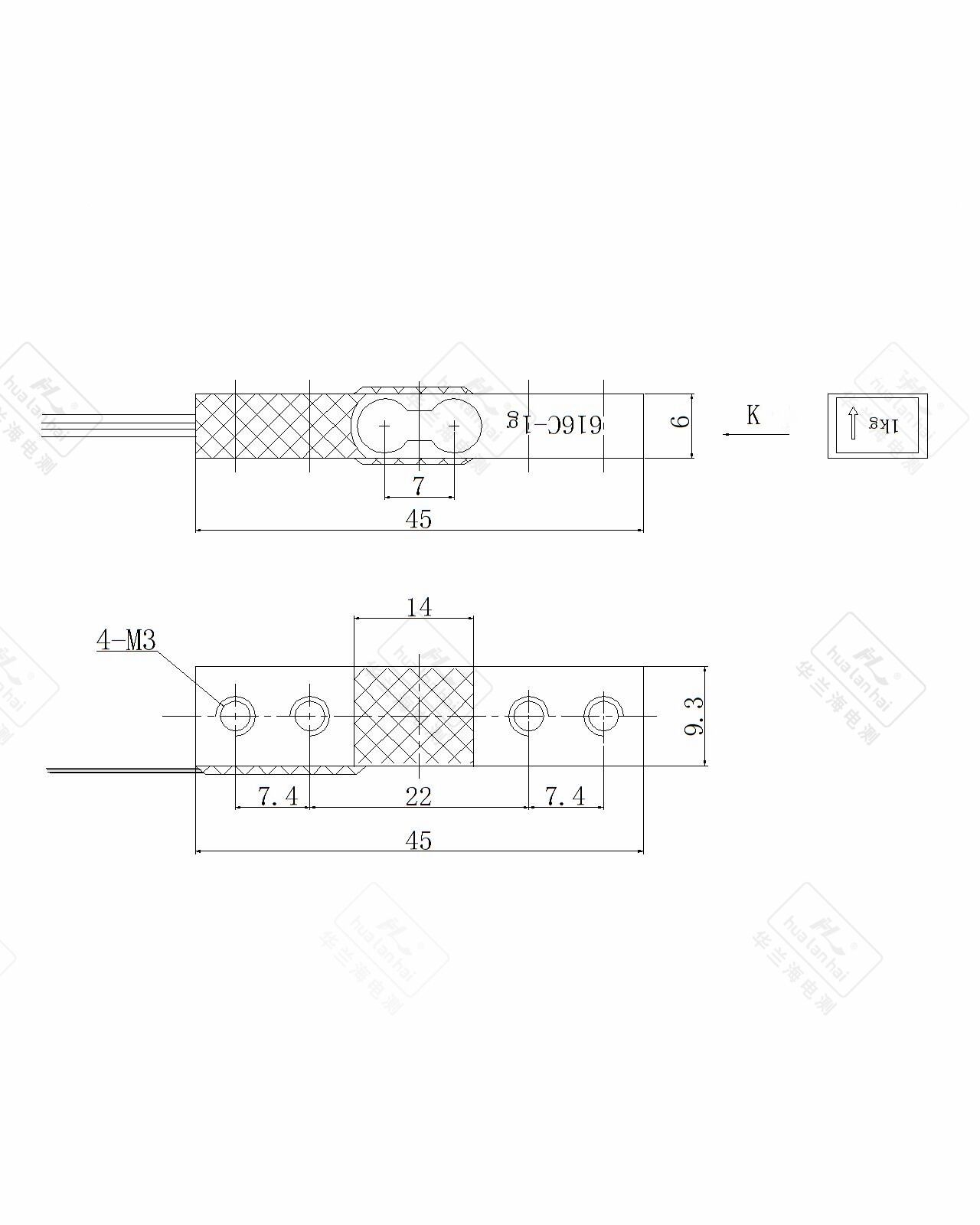

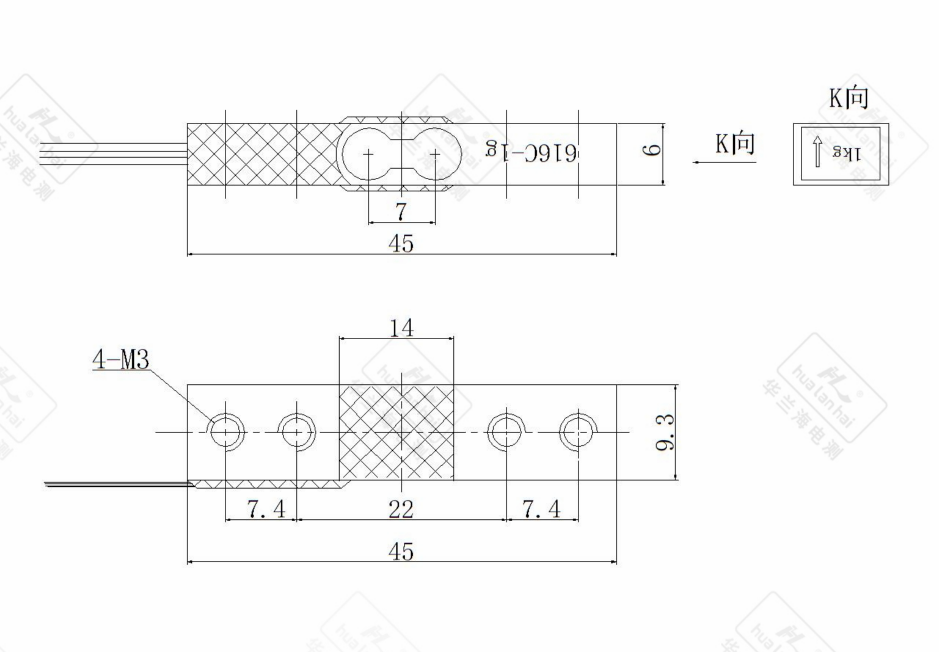

Detail Display

Parameters
