Foil Resistance Strain Gauge FB Series

Product Introduction

The Hualan foil resistance strain gauge FB series represents a precision measurement solution engineered for demanding industrial applications. This advanced foil strain sensor consists of four essential components: a precision substrate, a highly sensitive grid structure, an industrial-grade adhesive layer, and a protective coating system. Manufactured through precision etching of 0.005mm-thick metal foil, the foil resistance strain gauge delivers an ultra-thin sensitive grid that effectively captures minute surface deformations with exceptional accuracy. The FB series foil strain sensor is available in customizable resistance ranges spanning from 60 to 5000 ohms, accommodating diverse measurement requirements across multiple industries.

The foil resistance strain gauge FB series excels in applications requiring real-time stress monitoring and precise strain measurement. Its innovative design ensures minimal measurement interference while maintaining exceptional sensitivity to surface deformation. The foil strain sensor technology employed in the FB series has been refined through years of industrial testing, making it the trusted choice for engineers and manufacturers worldwide. Whether measuring dynamic loads or static stresses, this foil resistance strain gauge delivers consistent, reliable data that engineers depend on for critical decision-making.

Key Features and Benefits

The FB series foil strain sensor offers several distinct advantages for industrial measurement applications. The precision-etched metal foil grid ensures superior sensitivity, allowing the foil resistance strain gauge to detect minimal deformations that other technologies might miss. This exceptional sensitivity translates directly into higher measurement accuracy and more reliable data for structural analysis and performance monitoring. The compact design of the FB series foil strain sensor enables installation in confined spaces where traditional measurement tools cannot access, expanding the range of possible applications.

Durability represents another cornerstone advantage of the foil resistance strain gauge technology. The protective coating system shields the sensitive grid from environmental contaminants, moisture, and mechanical damage. This robust construction extends the operational lifespan of each foil strain sensor, reducing replacement frequency and maintenance costs. The FB series foil resistance strain gauge maintains measurement accuracy across extended service periods, delivering exceptional value for long-term monitoring installations.

Comprehensive Application Spectrum

The foil resistance strain gauge FB series serves as a critical component in weighing instruments where precise load measurement is fundamental to accuracy. Industrial force measurement systems rely on the exceptional sensitivity of the FB series foil strain sensor to deliver real-time force data for process control and safety monitoring. Stress analysis testing applications benefit significantly from the foil strain sensor's ability to capture complex stress distributions across structural components. High-temperature melt pressure sensors utilize the FB series foil resistance strain gauge to monitor extreme conditions in manufacturing environments where standard sensors would fail.

Beyond these primary applications, the foil resistance strain gauge finds use in bridge monitoring systems, aircraft structural health assessment, medical device development, and automotive crash testing. The versatility of the FB series foil strain sensor stems from its customizable resistance range and multiple grid configurations, enabling engineers to select the optimal foil resistance strain gauge variant for each specific application requirement.

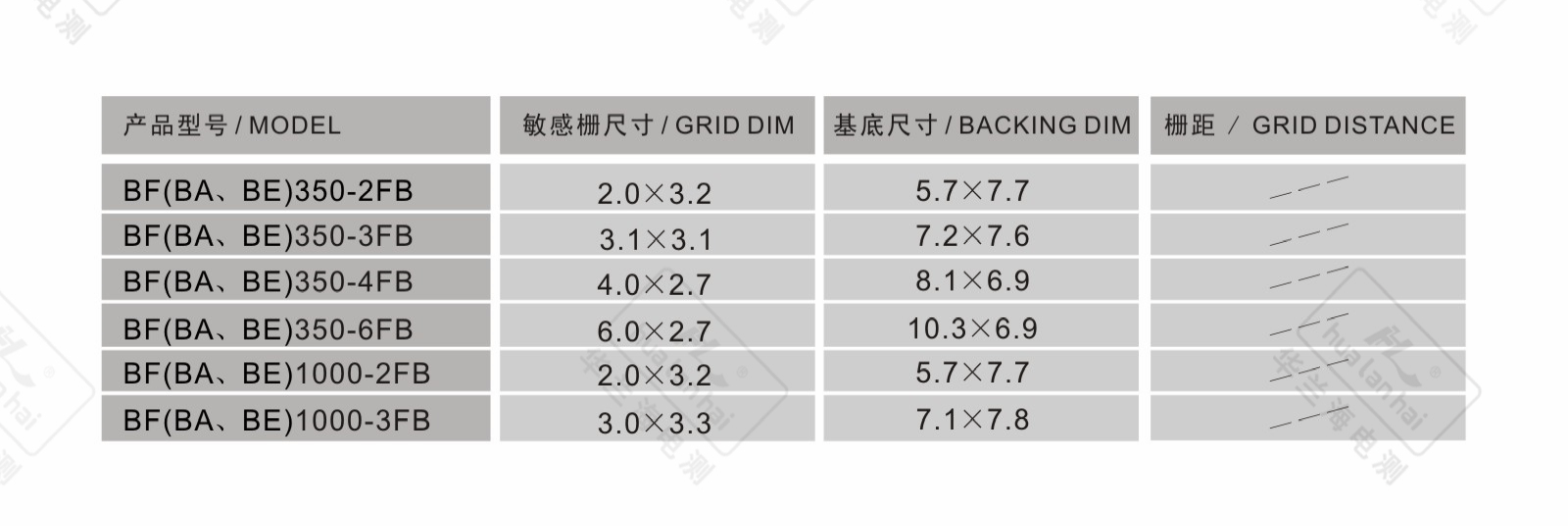

Technical Specifications

Why Choose the FB Series Foil Strain Sensor

Selecting the right foil resistance strain gauge requires careful consideration of accuracy requirements, installation constraints, and environmental conditions. The FB series foil strain sensor addresses these considerations through flexible configuration options and proven reliability. Engineers appreciate the consistent performance of the foil resistance strain gauge, which simplifies integration into complex measurement systems. The FB series foil strain sensor's compatibility with standard data acquisition equipment streamlines implementation timelines and reduces overall project costs.

For organizations seeking to upgrade their measurement capabilities, the foil resistance strain gauge FB series offers an accessible entry point to precision strain measurement technology. The range of available configurations ensures that procurement teams can identify the optimal foil strain sensor variant for their specific requirements without overspending on unnecessary features. This pragmatic approach to product selection has made the FB series foil resistance strain gauge a preferred standard across manufacturing, research, and quality assurance departments globally.
