Foil Resistance Strain Gauge 2FB Series

Product Introduction
The Hualan Hai Foil Resistance Strain Gauge 2FB Series represents a precision instrument engineered for demanding industrial measurement applications. This advanced strain measurement sensor consists of four essential components: a precision base plate, a finely-etched sensitive grid, a high-performance adhesive layer, and a protective coating that ensures long-term reliability. Crafted from ultra-thin 0.005mm-thick metal foil through precision etching technology, the foil resistance strain gauge delivers exceptional sensitivity and accuracy in detecting surface deformations. The innovative ultra-thin design of this resistance strain gauge enables precise detection of even subtle component deformations, delivering measurement accuracy that meets the stringent requirements of modern industrial applications. With customizable resistance values ranging from 60 to 5,000 ohms, the 2FB strain gauge accommodates diverse measurement requirements across multiple industrial sectors, making it an exceptionally versatile solution for equipment manufacturers and testing laboratories worldwide.

Key Features and Design Excellence
The foil resistance strain gauge features a revolutionary construction that sets industry standards for performance and reliability. The precision-etched metal foil grid, measuring just 0.005mm in thickness, provides outstanding sensitivity to structural stress and deformation. This strain measurement sensor's exceptional thinness allows it to conform perfectly to component surfaces while maintaining excellent measurement fidelity. The protective coating shields the sensitive grid from environmental contamination, moisture, and mechanical damage, extending the operational lifespan of the 2FB strain gauge significantly. The robust base plate provides structural support and ensures stable mounting across diverse surface geometries, while the specialized adhesive layer guarantees secure bonding without compromising measurement accuracy. These design features combine to make the foil resistance strain gauge an ideal choice for applications demanding sustained precision under challenging conditions.

Comprehensive Application Range
The 2FB strain gauge finds extensive applications across multiple critical industrial domains. In weighing systems, the foil resistance strain gauge provides precise load cell integration, enabling accurate weight measurement in industrial scales and laboratory equipment. Industrial force measurement applications benefit from the strain measurement sensor's exceptional linearity and repeatability, delivering reliable data for force monitoring and control systems. Stress analysis testing laboratories utilize the resistance strain gauge for comprehensive material evaluation, component durability assessment, and structural integrity verification. High-temperature melt pressure sensors leverage the foil resistance strain gauge's thermal stability, enabling accurate pressure monitoring in demanding manufacturing environments including plastics processing, extrusion equipment, and injection molding systems. The versatile 2FB strain gauge also serves applications in bridge monitoring, building structural analysis, aerospace component testing, automotive crash testing, and quality control processes across manufacturing industries. Each application benefits from the strain measurement sensor's superior accuracy, reliability, and consistent performance characteristics.

Technical Specifications and Customization
The resistance range of the foil resistance strain gauge spans from 60 ohms to 5,000 ohms, providing flexibility to match specific measurement circuit requirements and equipment specifications. This broad customization capability ensures the 2FB strain gauge integrates seamlessly into existing measurement systems without requiring additional conversion equipment. The strain measurement sensor's precision construction maintains excellent stability across environmental temperature variations, making it suitable for both laboratory and field deployment. The ultra-thin 0.005mm foil construction of the foil resistance strain gauge minimizes measurement errors associated with surface irregularities, providing superior data quality compared to conventional strain gauges. The protective coating resists thermal cycling, humidity exposure, and chemical contamination, maintaining measurement accuracy throughout the sensor's operational lifetime. These technical advantages make the resistance strain gauge the preferred choice for quality-conscious equipment manufacturers and testing facilities requiring dependable long-term performance.

Installation and Integration Benefits
The compact design of the foil resistance strain gauge enables straightforward installation on component surfaces with minimal modification requirements. The 2FB strain gauge's thin profile makes it suitable for space-constrained applications where conventional measurement devices prove impractical. The strain measurement sensor's robust construction withstands mechanical stress during installation and provides stable performance throughout extended operational periods. Integration with modern data acquisition systems is straightforward, with standard resistance measurement interfaces compatible with most industrial control equipment. The foil resistance strain gauge requires minimal maintenance, reducing operational costs and system downtime. Its reliable performance under sustained stress makes the resistance strain gauge an economical choice for budget-conscious facilities seeking premium measurement quality without excessive lifecycle costs. The proven reliability of the 2FB strain gauge has established it as a trusted solution for engineering professionals and manufacturing operations demanding consistent, accurate strain measurement sensor performance.

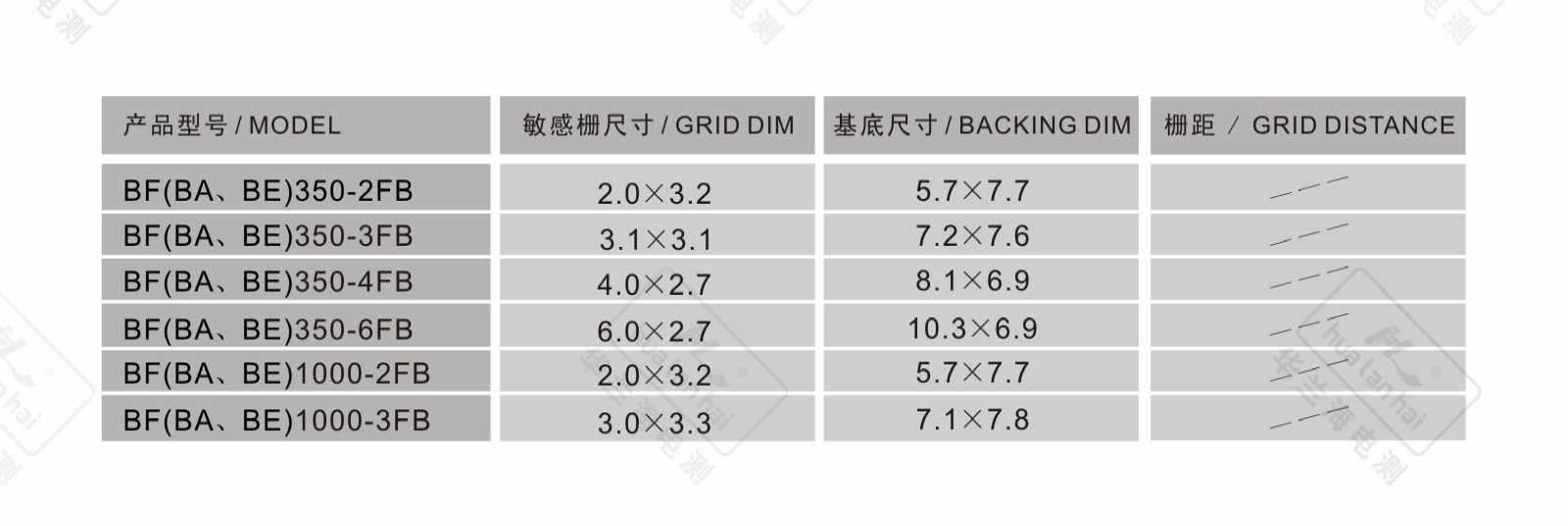

Detail Display
