Product Introduction
1. This product features multiple load sensors and a unified ultra-thin structure for easy mobility, weighing less than 20kg;
2. Special protective treatment makes it suitable for harsh environments;
3. The patented sloping design reduces impact force from vehicle wheels.

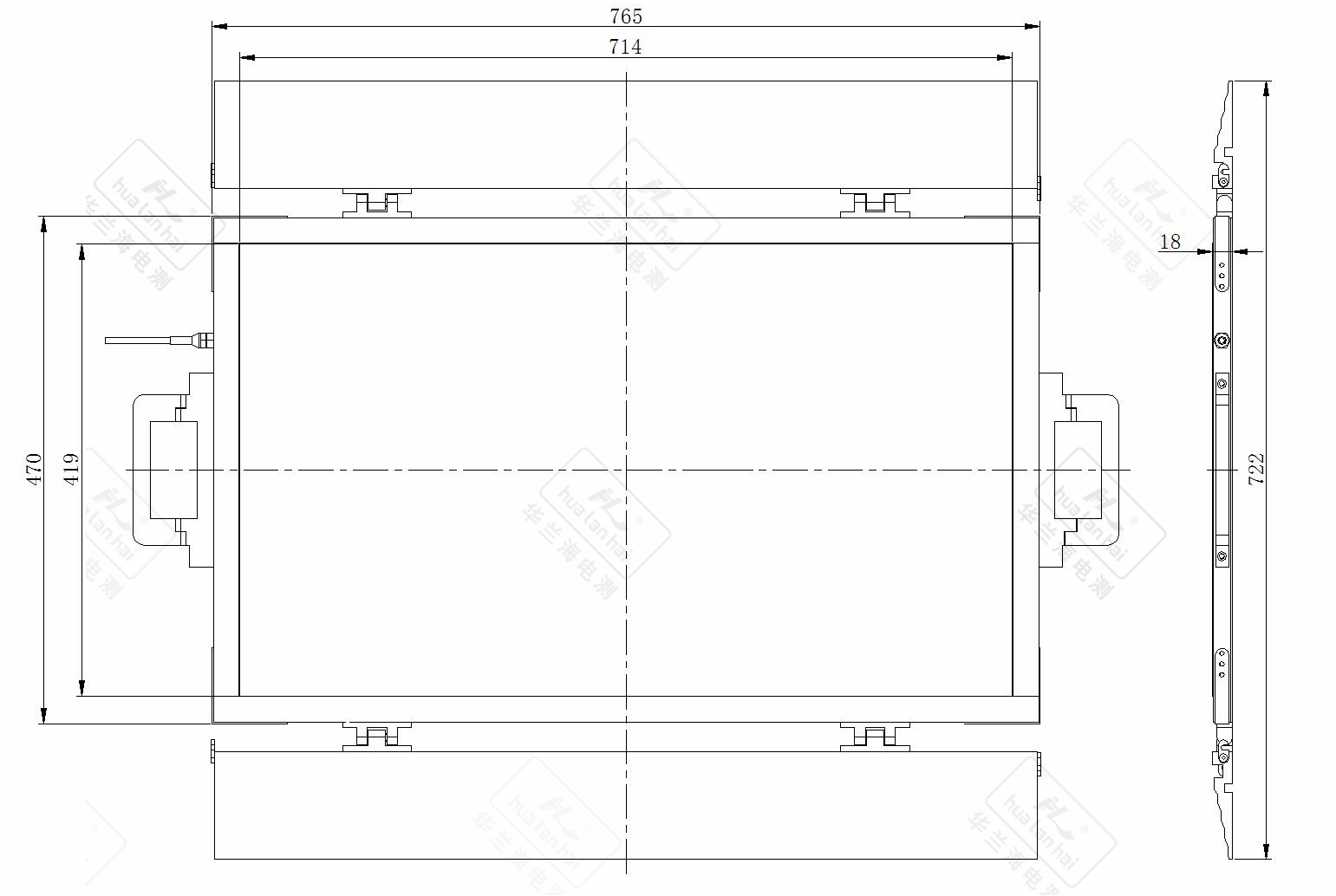

Detail Display
Parameters
| Parameter Name | Parameter Value |
| Rated load | 10t/20t/30t/40t |
| sensitivity | 1.0/0.9/1.1/1.5±0.1 mV/V |
| Nonlinearity | ≤0.30% FS |
| Repeatability | ≤0.05% FS |
| Sensitivity temperature effect | 0.05% FS/10℃ |
| Zero temperature effect | 0.05% FS/10℃ |
| Output impedance | 10t:700±10Ω;20t:560±10Ω;30t:560±10Ω;40t:467±10Ω |
| insulation resistance | ≥1000 MΩ(100VDC) |
| Bias load error | ≤1.5% FS (1/4 table top stress) |
| Safe overload range | 120% FS |
