Parallel Beam Weighing Sensor CZL632

Product Introduction

The Parallel Beam Weighing Sensor CZL632 represents an advanced force-sensitive detection element engineered on strain resistance principles. This industrial weighing sensor features a dual parallel beam or single parallel beam elastomer core structure that converts mechanical force into precise electrical signals. When subjected to load, the beam's controlled bending deformation activates integrated strain gauges, generating resistance changes that are converted into standardized output signals. The parallel beam load cell design combines exceptional accuracy under light loads, superior planar anti-off-center load capacity, and simplified installation methods, making it ideal for small-range weighing applications, precision force measurement, and embedded measurement scenarios across multiple industries.

1. Product Features and Functions

Core Features

• Structural Design: The CZL632 parallel beam load cell adopts an integrated parallel beam structure with beam thickness ranging from 2-15mm and length from 20-150mm. This design ensures uniform stress distribution concentrated in the middle section of the beam, supporting multi-angle planar forces with outstanding anti-off-center load capacity. The sensor can withstand planar off-center loads of ±20%-±30% of rated load without obvious stress blind spots, providing reliable measurement regardless of load placement position.

• Precision Performance: This industrial weighing sensor offers accuracy levels from C1-C3, with mainstream models achieving C2 classification. Nonlinearity error is controlled to ≤±0.01%FS, repeatability error ≤±0.005%FS, and zero drift ≤±0.002%FS/℃. The parallel beam load cell delivers superior precision performance compared to similar sensors in small-range scenarios from 0.1kg-500kg, making it the optimal choice for demanding measurement applications.

• Materials and Protection: Elastomers are available in aluminum alloy for lightweight scenarios, alloy steel for conventional industrial use, or 304/316L stainless steel for corrosive environments. Surface treatments include anodizing, nickel plating, or passivation. The weighing sensor maintains IP65/IP67 protection levels, with food-grade models achieving IP68, ensuring reliable operation across diverse environmental conditions.

• Installation Compatibility: Standardized mounting holes including threaded or smooth options support bolt fixing or adhesive installation. Micro models enable embedded mounting suitable for desktop weighing instruments and automated equipment, with a single unit capable of meeting comprehensive planar weighing requirements without complex modifications.

Core Functions

• Light Load Force Measurement: The CZL632 industrial weighing sensor focuses on static and quasi-dynamic light load weighing with response times ≤4ms. Operating range spans 0.1kg-500kg, with typical applications concentrated in the 1kg-200kg range. Micro models achieve ultra-small range measurement down to 0.01kg for specialized applications.

• Multiple Signal Output Types: The parallel beam load cell provides analog signals (4-20mA, 0-3V, 0-5V) and digital signals (RS485/Modbus RTU, I2C). Micro intelligent models integrate signal conditioning modules enabling direct connection to single-chip microcomputers and IoT platforms for seamless system integration.

• Safety Protection Function: Built-in wide temperature range compensation (-10℃~70℃) provides stable operation across varying climates. The weighing sensor includes overload protection at 150%-200% of rated load, with some models featuring anti-shock buffer structures for enhanced durability in demanding environments.

• Long-Term Stability: Fatigue life exceeds 10⁷ load cycles, with annual drift ≤±0.01%FS under rated load. This ensures the load cell measurement device suits long-term continuous operation in supermarkets, laboratories, and industrial facilities requiring consistent performance.

2. Core Problems Solved

• Insufficient Precision in Light Load Scenarios: Traditional sensors exhibit excessive error in small-range applications below 10kg. The parallel beam load cell CZL632 solves this through optimized beam stress design, controlling measurement error within ±0.005%FS for applications like food weighing and pharmaceutical ingredient measurement requiring high precision.

• Inaccurate Measurement of Planar Eccentric Load: The uniform stress distribution of the parallel beam weighing sensor effectively neutralizes accuracy loss from off-center load placement. This solves measurement inconsistencies in desktop scales and sorting equipment where material positioning varies.

• Equipment Integration Challenges: The compact structure and flexible mounting options of this load cell measurement device overcome embedded installation requirements for automated equipment and smart appliances without requiring main structure modifications, reducing integration complexity and costs.

• Environmental Adaptability Issues: Material and protection level upgrades resolve sensor damage and signal drift in humidity-rich scenarios (aquaculture), corrosive environments (chemical processing), and dusty locations (flour production), ensuring reliable performance across diverse industrial settings.

• Cost Pressures on Compact Equipment: A single parallel beam load cell satisfies planar weighing requirements, eliminating expensive multi-sensor configurations. Aluminum alloy construction reduces weight and cost, addressing budget constraints in small weighing instruments and consumer electronics applications.

3. User Experience

• Simplified Installation: Standardized mounting holes and positioning reference surfaces enable rapid deployment without professional calibration tools. Standard screwdriver-only installation, low flatness requirements (≤0.1mm/m), and single-person debugging completion within 10 minutes streamline deployment processes.

• Low Operation Threshold: One-key zeroing and single-point calibration using 100% rated load standard weights simplify setup procedures. Digital models support rapid software-based calibration, enabling non-professionals to achieve proper operation easily.

• Minimal Maintenance Requirements: Fully sealed structure reduces dust and moisture intrusion, maintaining annual average failure rates ≤0.2%. Lightweight aluminum alloy models simplify component replacement without disassembling major equipment structures.

• Reliable Data Performance: Static measurement data fluctuation remains within ±0.003%FS with zero hysteresis in quasi-dynamic conditions. Digital models feature automatic zero drift compensation, reducing calibration frequency requirements and ensuring exceptional data stability.

• Integration Flexibility: Micro dimensions (minimum 20mm×10mm×5mm) enable seamless embedding within smart devices without appearance impact. Signal output compatibility with mainstream controllers supports plug-and-play installation for IoT and consumer device applications.

4. Typical Application Scenarios

Civil and Commercial Weighing Equipment

• Supermarket and retail pricing scales utilize the parallel beam load cell CZL632 as their core sensing unit in 3-30kg applications. Lightweight aluminum alloy construction combined with anti-eccentric load characteristics ensures consistent weighing accuracy across different placement positions with error ≤±1g.

• Express parcel weighing systems (1-50kg range) benefit from stainless steel construction providing anti-fouling and easy-cleaning surfaces. IP67 protection levels adapt to humid and dusty express delivery environments while supporting continuous rapid weighing operations.

• Kitchen and baking scales (0.01-5kg) employ micro parallel beam load cells achieving milligram-level accuracy. Digital signal output compatibility with high-definition displays meets precise ingredient proportioning requirements for culinary applications.

Industrial Automation and Equipment

• Automated sorting systems in food and hardware industries install this industrial weighing sensor under conveyor belts for real-time product weight detection linked to sorting mechanisms, achieving sorting accuracy to ±0.1g.

• Assembly line material detection identifies missing components through weighing measurements (such as mobile phone battery assembly) with response times ≤4ms suitable for high-speed production pipelines.

• Packaging machine quantitative control for small particle and powder applications uses C2 precision parallel beam load cells ensuring weight error per bag ≤±0.2%, meeting metrological standards and regulatory compliance.

Food and Pharmaceutical Industries

• Pharmaceutical ingredient weighing (0.1-10kg small-dose materials) uses 316L stainless steel construction with GMP certification. Polished surfaces without dead corners enable complete disinfection and sterilization, maintaining precision ≤±0.01%FS for regulatory compliance.

• Aquatic product and meat processing weighing equipment features waterproof and anti-corrosion design (IP68) enabling direct washing. This industrial weighing sensor suits humid water-rich slaughterhouse and market environments.

Scientific Research and Laboratory Applications

• Laboratory weighing of reagents and samples uses ultra-small range models (0.01-1kg) meeting high-precision requirements for microbial culture and chemical proportioning applications.

• Medical equipment force measurement in rehabilitation devices and clinical scales employs lightweight aluminum alloy design improving portability while delivering precision to ±0.005%FS for accurate health assessment.

Smart Consumer Electronics and IoT Solutions

• Smart home appliances integrate micro embedded parallel beam load cells for laundry weight detection in washing machines and coffee bean bin monitoring, enabling intelligent equipment control and enhanced user experience.

• IoT endpoint monitoring on smart shelves and intelligent trash cans uses low-power digital models supporting NB-IoT wireless transmission for remote management scenarios requiring continuous weight monitoring.

5. Usage Method (Practical Guide)

Installation Process

• Preparation: Clean installation surfaces removing oil stains and burrs. Inspect sensor appearance checking for beam deformation and cable damage. Select appropriate mounting bolts matching the load cell range, avoiding high-strength bolts for aluminum alloy models.

• Positioning and Fixing: Horizontally install the parallel beam load cell on load-bearing surfaces ensuring vertical load application above the beam body. Avoid lateral impact. Use torque wrenches for bolt tightening (5-10N·m for aluminum alloy, 10-20N·m for alloy steel) preventing beam damage from over-tightening.

• Wiring Specifications: Follow "red-power+, black-power-, green-signal+, white-signal-" for analog signals, and connect digital signals per pin definitions. Reserve 5cm redundant cable length for micro models, avoiding cable tension damage.

• Protection Treatment: Seal cable connectors with waterproof tape in humid environments. Clean sensor surfaces immediately after use in food industry applications preventing corrosive material damage.

Calibration and Adjustment

• Zero Calibration: Power on and preheat for 10 minutes before executing "zero calibration" commands. Verify zero output within ±0.001%FS. Investigate excessive deviation checking installation surface flatness.

• Load Calibration: Place standard weights at 100% rated load (use certified standards for small-range scenarios). Record output signal values and correct errors through meter or software, ensuring error ≤ corresponding precision level allowance (C2 level ≤ ±0.01%FS).

• Eccentric Load Testing: Place identical weights at different positions on sensor load surfaces observing reading consistency. Deviation should remain ≤ ±0.02%FS, otherwise adjust installation level.

Daily Maintenance

• Regular Inspection: Clean sensor surfaces weekly and check wiring looseness monthly. Calibrate supermarket scales quarterly and laboratory equipment monthly.

• Fault Handling: Verify power supply voltage (stable 5-24V DC, typically 5V for micro models) when data drifts occur. Check for overload conditions (aluminum alloy models prone to permanent deformation) when readings become abnormal. Replace sensor if necessary.

6. Selection Method (Precise Matching)

Core Parameter Determination

• Range Selection: Select capacity at 1.2-1.5 times actual maximum weight (10kg maximum requires 12-14kg sensor) preventing insufficient accuracy from excessive range in light load applications.

• Accuracy Level: Laboratory and pharmaceutical applications choose C1 level (error ≤ ±0.005%FS), industrial measurement scenarios choose C2 level (error ≤ ±0.01%FS), civil weighing instruments choose C3 level (error ≤ ±0.02%FS).

• Signal Type: Civil weighing systems use analog signals (0-5V), intelligent devices select digital signals (I2C/RS485), IoT applications require wireless-enabled models.

Environmental Adaptability Selection

• Temperature: Regular scenarios (-10℃~60℃) use standard models; low-temperature refrigeration (-20℃~0℃) requires specialized low-temperature models; elevated temperature scenarios (60℃~80℃) need high-temperature compensation types.

• Materials: Dry environments suit aluminum alloy construction; humid and food industry settings require 304 stainless steel; chemical corrosive environments need 316L stainless steel protection.

• Protection Level: Indoor dry areas require ≥IP65; humid or flushing environments need ≥IP67; underwater or highly corrosive settings demand ≥IP68 ratings.

Installation and System Compatibility

• Installation Method: Desktop scales use bolt fixing; smart devices select embedded installation; space-constrained scenarios prioritize micro models with length ≤30mm.

• System Compatibility: Confirm power supply voltage and signal output match controller specifications. Verify micro model pin definitions preventing wiring errors and component damage.

Additional Requirement Confirmation

• Certifications: Food and pharmaceutical industries require FDA/GMP certification; measurement applications need CMC certification; export products demand OIML certification compliance.

• Special Functions: High-speed sorting requires response time ≤3ms; low-power scenarios select IoT models with sleep current ≤10μA; hygiene applications need integrated designs without threads or dead corners.

Summary

The parallel beam weighing sensor CZL632 provides core advantages including light load high precision, flat anti-bias load capacity, and convenient system integration. This industrial weighing sensor solves critical problems in small-range precise weighing, material eccentric loading, and compact equipment integration. User experience emphasizes simple operation, minimal maintenance requirements, and controlled implementation costs. During selection, prioritize range, accuracy level, installation space, and environmental conditions, then confirm system compatibility and additional functional requirements. Proper use requires avoiding overload and lateral impact while strictly following regular calibration protocols for sustained stable operation. The parallel beam load cell suits light load weighing instruments, industrial automation equipment, food and pharmaceutical applications, and represents the optimal sensing solution for small-range planar weighing requirements across diverse industries.

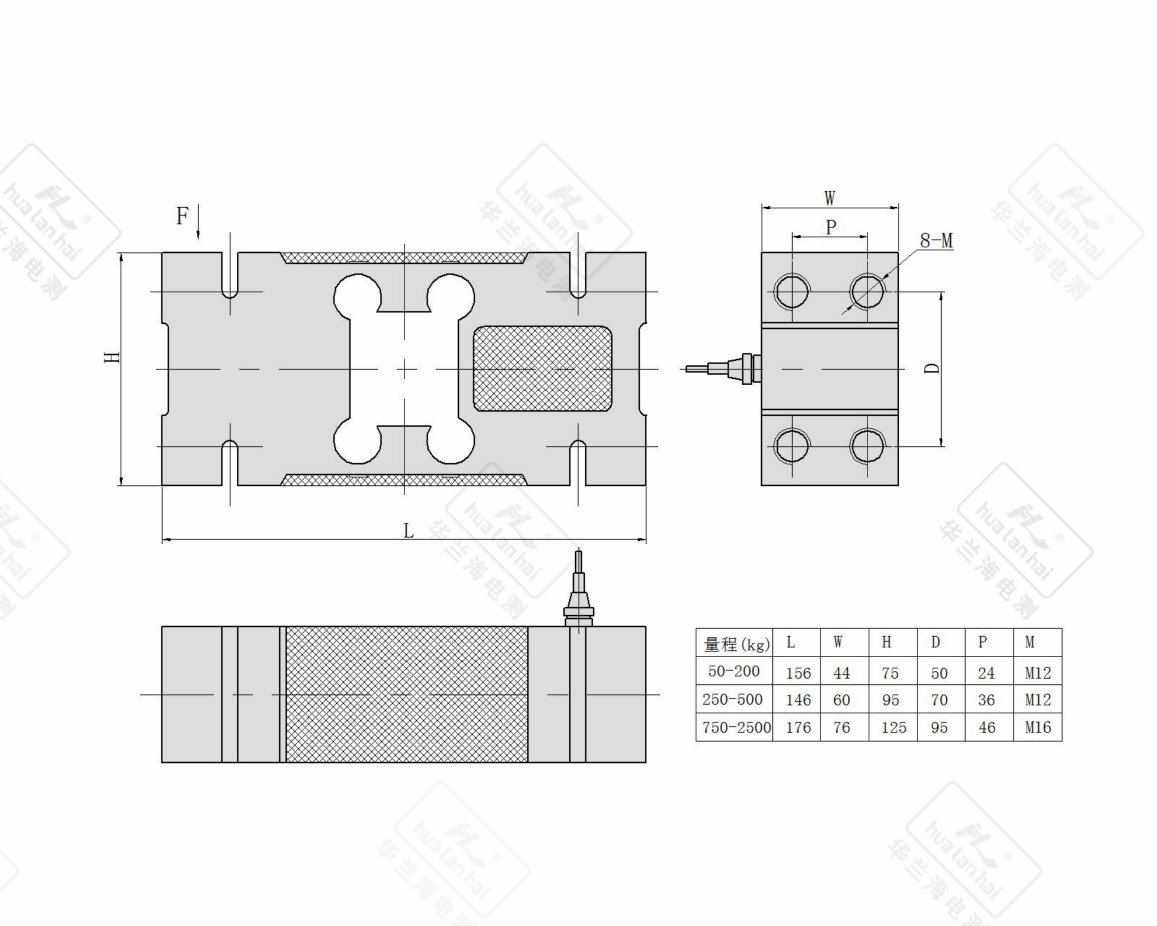

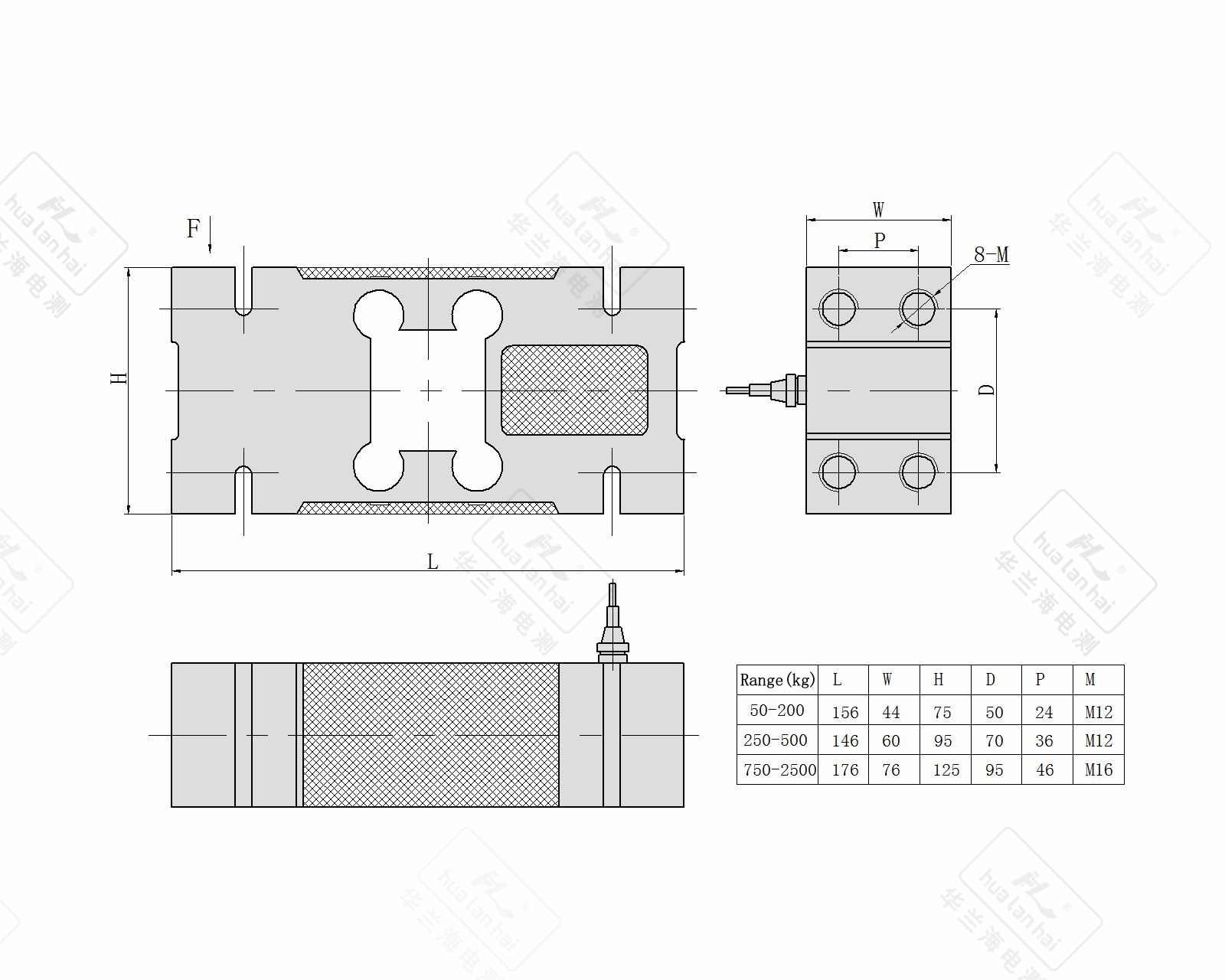

Detail Display

Parameters
