Product Introduction
1. This product features multiple load sensors integrated into a unified ultra-thin structure for easy mobility;
2. Specialized protective treatment ensures durability in harsh environments, enabling better adaptation to complex road conditions;
3. The plastic slope connector with scale body hook allows flexible disassembly for versatile use;
4. Combining aviation-grade aluminum and stainless steel materials, the product delivers robust construction and long-lasting performance.

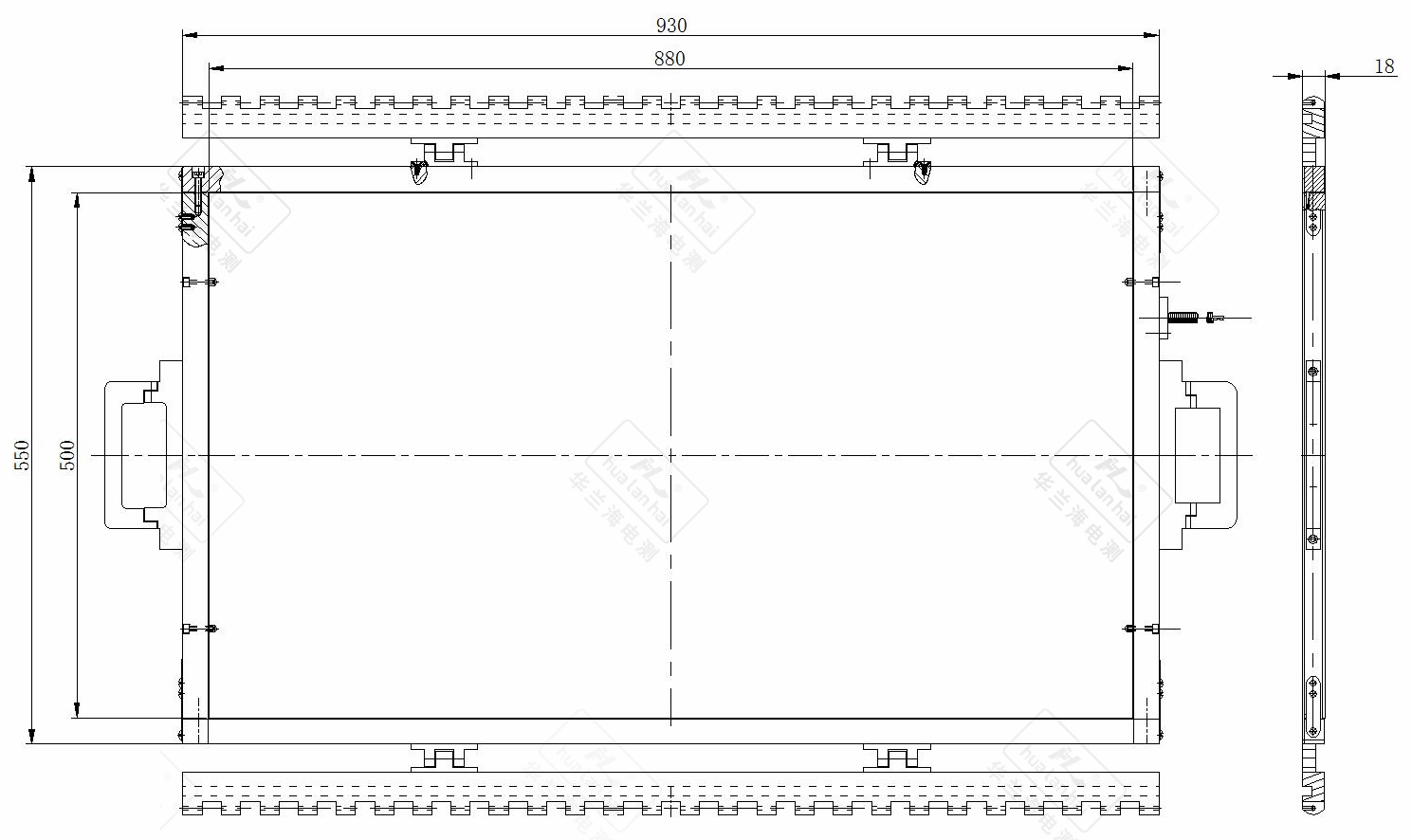

Detail Display
Parameters
| Parameter Name | Parameter Value |
| Rated load | 15t |
| sensitivity | 1.0±0.1 mV/V |
| Nonlinearity | ≤0.30% FS |
| Repeatability | ≤0.05% FS |
| Sensitivity temperature effect | 0.05% FS/10℃ |
| Zero temperature effect | 0.05% FS/10℃ |
| Output impedance | 1000±10Ω |
| insulation resistance | ≥1000 MΩ(100VDC) |
| Bias load error | ≤1.5% FS (1/4 table top stress) |
| Safe overload range | 120% FS |
