Curved Plate Dynamic Truck scale CZL-15-1500

Product Introduction

Overview

The Curved Plate Dynamic Truck Scale CZL-15-1500 features an advanced bending plate load cell, a patented integral and dynamic strain type load cell independently developed and produced by our company (Patent Nos.: ZL 2008 2 0042578.3 and ZL 2010 2 0170029.1). This curved plate dynamic truck scale has obtained the manufacturing license for measuring instruments issued by the state (Guangdong License No.: 00000545). The portable axle weighing system is primarily utilized in highway weigh-in-motion toll collection systems and high-speed pre-inspection systems, enabling real-time monitoring of vehicle axle loads and providing accurate weight data for road management departments and administrative law enforcement agencies worldwide. During installation, two curved plate dynamic truck scale units are typically installed in one lane, with the load cells mounted in a steel bracket and the entire bracket grouted into a shallow groove on the road surface using epoxy resin. This dynamic truck weighing solution has earned widespread recognition from highway management and administrative law enforcement departments due to its exceptional advantages including high weighing accuracy, outstanding long-term stability, and extended service life. The CZL-15-1500 truck scale represents the cutting edge of portable axle weighing system technology for modern highway infrastructure.

Main Features

1. High metrological accuracy and fast dynamic response – The curved plate dynamic truck scale delivers precise measurements with rapid response times, ensuring reliable dynamic truck weighing performance under operational conditions

2. Integral structure, thin thickness, convenient for construction and installation – The compact design of this portable axle weighing system minimizes installation complexity and reduces infrastructure disruption

3. Surface treated with one-time full vulcanization sealing process, with a protection rating of IP68, thus suitable for long-term and stable operation under harsh and complex environmental conditions

4. Strong overload capacity, extended service life, superior lateral consistency, and minimal off-center load error – The CZL-15-1500 truck scale maintains performance integrity across varying load distributions

5. Anti-slip stripes are provided on the front surface to increase the friction between the platform and tires, enhancing safety during dynamic truck weighing operations

6. Capable of continuous operation within the range of -40°C to +100°C, making the portable axle weighing system suitable for diverse geographical and climatic applications

7. Curved plate components can be customized according to specific customer requirements and project specifications

Applications and Benefits

The CZL-15-1500 curved plate dynamic truck scale serves critical functions in modern transportation infrastructure. Highway toll collection systems benefit from accurate, real-time axle weight monitoring, enabling fair toll assessment and traffic regulation. Pre-inspection checkpoints utilize this dynamic truck weighing technology to identify overloaded vehicles before they damage road networks or pose safety hazards. The portable axle weighing system's integration into existing road infrastructure is seamless, requiring minimal surface preparation and disruption to traffic flow. Road maintenance teams and regulatory agencies depend on consistent, precise data from this curved plate dynamic truck scale to optimize maintenance schedules and enforce weight regulations effectively. The robust construction ensures reliable performance even in high-traffic corridors experiencing constant vehicle passage, while the compact footprint allows flexible deployment across multiple lanes and checkpoint locations.

Technical Advantages

The patented design of this portable axle weighing system incorporates advanced materials and precision engineering to deliver superior performance. The full vulcanization sealing process provides exceptional protection against moisture, salt spray, and environmental contaminants that typically compromise sensor performance in highway environments. Temperature stability across the wide operational range ensures consistent accuracy regardless of seasonal variations or geographic location. The integral structure eliminates potential connection points that could introduce measurement errors or structural weaknesses. Installation specialists appreciate the thin profile design of the CZL-15-1500 truck scale, which simplifies site preparation and reduces overall project timelines and costs. The curved plate dynamic truck scale's ability to handle sustained overloads up to 150% of rated capacity demonstrates engineering excellence and provides safety margins for unexpected heavy vehicles.

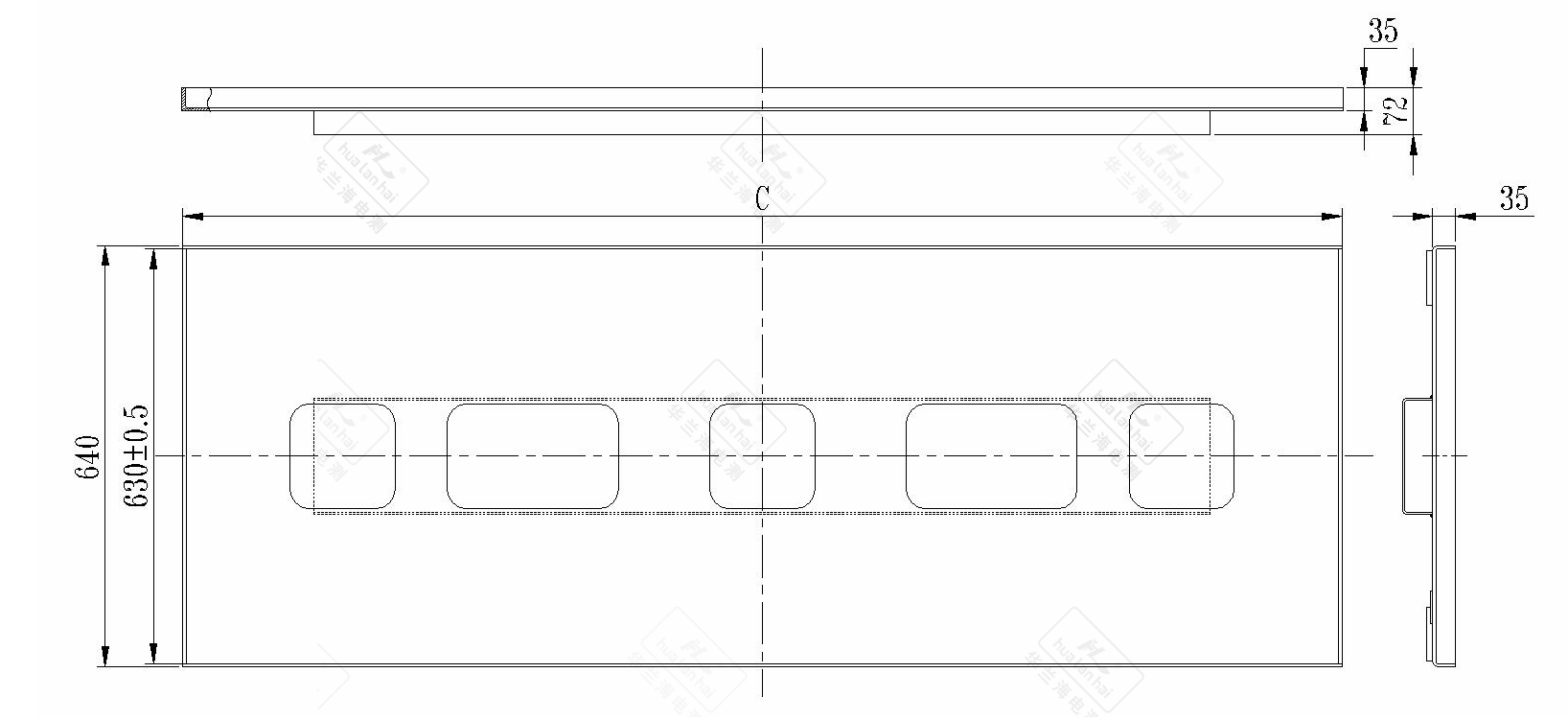

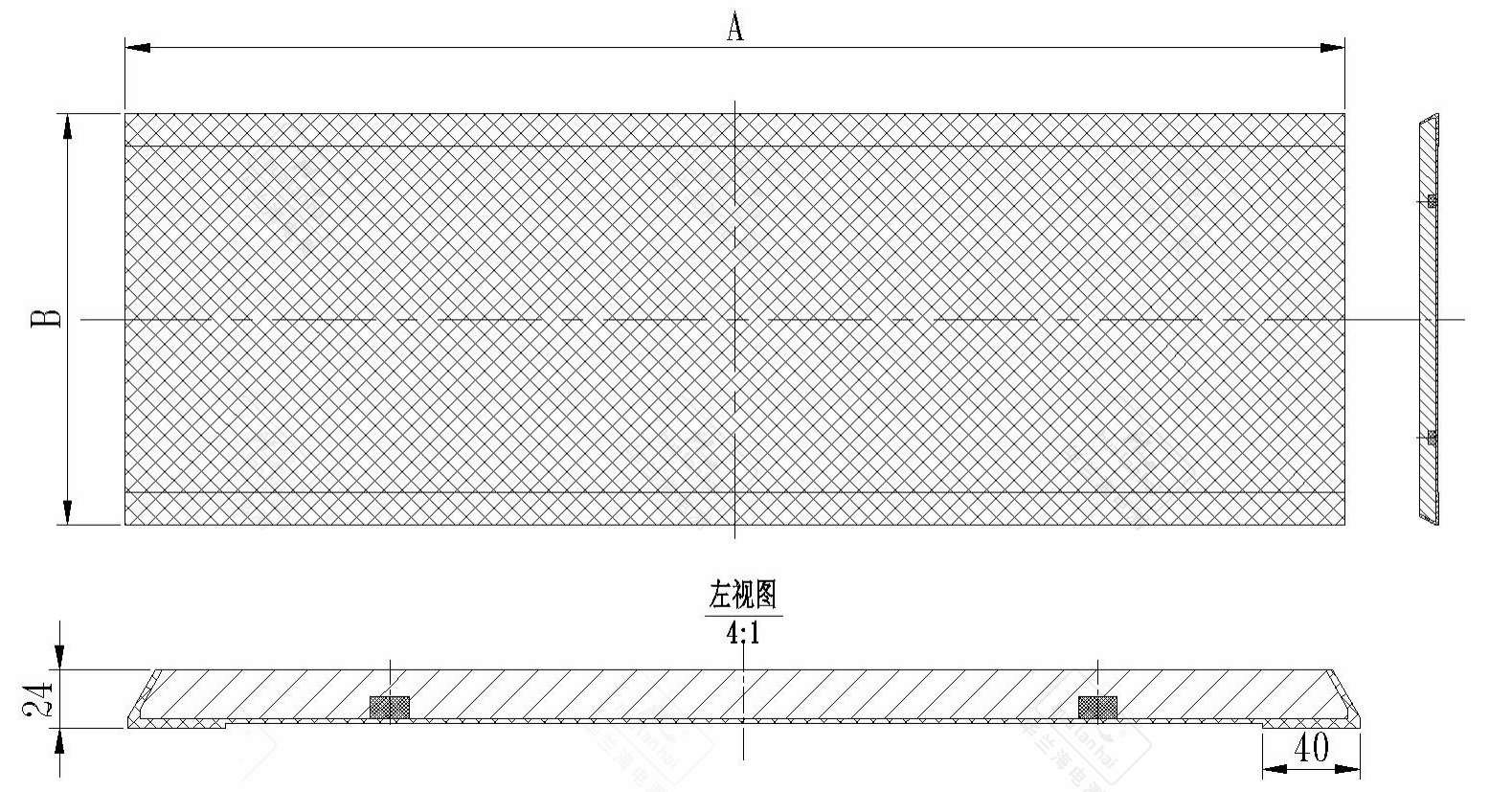

Detail Display

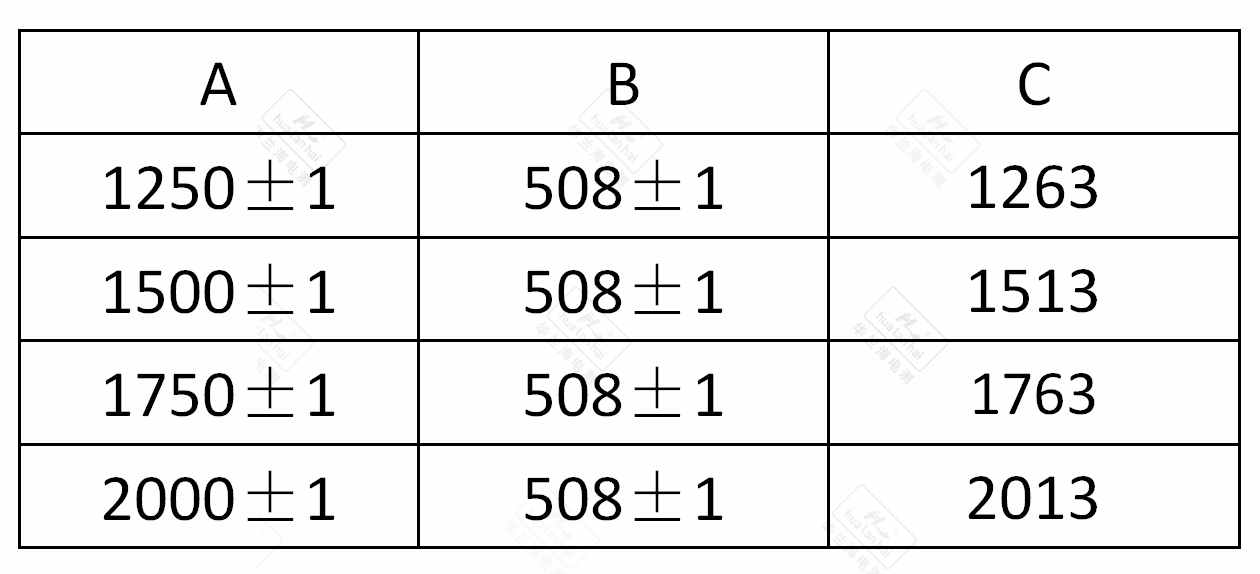

Parameters
