Parallel Beam Weighing Sensor CZL638

Product Introduction

The CZL638 parallel beam weighing sensor is a precision force-sensing detection element engineered on the strain resistance principle, featuring a double or single parallel beam elastomer as its core structure. When subjected to applied force, the beam's bending deformation drives integrated strain gauges to produce resistance changes, which convert into standardized electrical signals. This parallel beam load cell combines exceptional advantages including high precision under light loads, superior planar anti-off-center load capacity, and convenient installation flexibility. The CZL638 is extensively utilized in small-range weighing, planar force measurement, and embedded measurement applications across commercial and industrial sectors. This comprehensive guide presents core dimensions, technical specifications, and practical applications to support informed product selection, technical evaluation, and solution development.

1. Product Features and Functions

Core Features

• Structural Design: The CZL638 parallel beam load cell adopts an integrated parallel beam structure with beam thickness ranging from 2 to 15mm and length from 20 to 150mm. This design ensures uniform stress distribution concentrated in the beam's middle section, supporting multi-angle forces within the plane. The sensor demonstrates outstanding anti-off-center load capacity, capable of withstanding planar eccentric loads of ±20% to ±30% of rated load without significant stress concentration or blind spots.

• Precision Performance: This parallel beam load cell achieves accuracy levels spanning C1 to C3, with mainstream models reaching C2 classification. Performance metrics include nonlinearity error ≤ ±0.01%FS, repeatability error ≤ ±0.005%FS, and zero drift ≤ ±0.002%FS/℃, delivering superior precision compared to similar sensors in small-range weighing scenarios between 0.1kg and 500kg.

• Materials and Protection: The CZL638 beam sensor employs elastomers constructed from aluminum alloy for lightweight applications, alloy steel for conventional industrial use, or 304/316L stainless steel for corrosive environments. Surface treatments include anodizing, nickel plating, or passivation, with protection ratings typically IP65/IP67 and food-grade models achieving IP68 certification for diverse environmental conditions.

• Installation Compatibility: Standardized mounting holes with threaded or smooth configurations enable bolt fixation or adhesive installation. Micro models support embedded mounting within compact spaces, ideal for desktop weighing instruments and automated equipment where single-unit planar weighing requirements are necessary.

Core Functions

• Light Load Force Measurement: The CZL638 weighing sensor specializes in static and quasi-dynamic light load measurement with response times ≤ 4ms. Operating ranges span 0.1kg to 500kg, with conventional applications concentrated between 1kg and 200kg. Micro models achieve ultra-small range precision of 0.01kg.

• Multiple Signal Output Types: This industrial load cell provides both analog outputs (4-20mA, 0-3V, 0-5V) and digital signals (RS485/Modbus RTU, I2C). Micro intelligent models integrate signal conditioning modules enabling direct connection to microcontrollers and IoT platforms without intermediate conversion electronics.

• Safety Protection Function: The beam sensor integrates comprehensive temperature compensation across the -10℃ to 70℃ range and incorporates overload protection at 150% to 200% of rated capacity. Selected models feature anti-shock buffer structures protecting against mechanical impact.

• Long-Term Stability: With fatigue life exceeding 10⁷ load cycles and annual drift ≤ ±0.01%FS under rated load, this parallel beam load cell ensures reliable continuous operation in supermarkets, laboratories, and industrial facilities.

2. Core Problems Solved

• Insufficient Precision in Light Load Scenarios: The CZL638 addresses excessive errors from traditional sensors in small-range applications below 10kg through optimized beam stress design, maintaining measurement error within ±0.005%FS for food weighing and pharmaceutical metering applications.

• Inaccurate Planar Eccentric Load Measurement: The uniform stress distribution characteristic of this parallel beam load cell effectively compensates for eccentric loads caused by material offset placement, resolving accuracy issues in desktop weighing instruments and sorting equipment.

• Equipment Integrated Installation Challenges: The compact structure and flexible mounting methods of the beam sensor eliminate requirements for modifying main equipment structures, reducing integration costs for automated equipment and smart appliances.

• Poor Environmental Adaptability: Material and protection upgrades solve sensor damage and signal drift problems in humidity-rich aquaculture weighing, corrosive chemical environments, and dust-laden flour processing applications.

• Cost Pressures on Small Equipment: Single-unit planar weighing capability eliminates expensive multi-sensor combinations, while aluminum alloy construction reduces weight and cost, addressing budget constraints in small weighing instruments and consumer electronics.

3. User Experience

• Extremely Simplified Installation: Standardized mounting holes and positioning references eliminate professional calibration requirements. Installation completes with ordinary tools within 10 minutes, with low flatness requirements (≤0.1mm/m) achievable by single operators.

• Low Operation Threshold: One-key zeroing and single-point calibration functionality require only a standard weight matching 100% rated load. Digital models support computer software calibration, enabling non-professionals to operate with confidence.

• Extremely Low Maintenance Cost: Fully sealed construction minimizes dust and moisture infiltration, with annual failure rates ≤0.2%. Lightweight aluminum alloy models (minimum 5g) facilitate simple replacement without major structural disassembly.

• Accurate Data Feedback: Static measurement stability maintains ≤±0.003%FS data fluctuation with zero hysteresis in quasi-dynamic scenarios. Digital models include drift compensation eliminating frequent calibration needs.

• Good Integration and Adaptability: Micro models measure as small as 20mm×10mm×5mm, embedding invisibly within smart devices without aesthetic impact. Signal outputs remain compatible with mainstream controllers for seamless Plug and Play integration.

4. Typical Application Scenarios

Civil and Commercial Light Load Weighing Instruments

• Supermarket Pricing Scales: The CZL638 parallel beam weighing sensor serves as the core sensing unit in 3-30kg pricing scales. Lightweight aluminum alloy construction and anti-eccentric load characteristics ensure consistent accuracy regardless of material placement position, maintaining errors ≤±1g.

• Express Delivery Electronic Scales: In 1-50kg express weighing equipment, stainless steel construction provides fouling resistance and easy cleaning. IP67 protection handles humid and dusty express outlet environments while supporting continuous fast weighing operations.

• Kitchen and Baking Scales: This beam sensor achieves milligram-level accuracy in 0.01-5kg kitchen scales, with digital output compatible with high-resolution displays for precise ingredient proportioning.

Industrial Automation Equipment

• Automated Sorting Equipment: Weight sorters in food and hardware industries utilize the industrial load cell installed beneath sorting conveyors for real-time product weight detection linked to sorting mechanisms, achieving ±0.1g sorting accuracy.

• Assembly Line Material Detection: Electronic component assembly lines employ this load cell for material shortage detection, determining missing components like mobile phone batteries through weighing with response times ≤4ms for high-speed production.

• Quantitative Packaging Control: Small particle and powder packaging machines utilize C2 precision models ensuring per-bag weight errors ≤±0.2%, meeting metrological certification standards.

Food and Pharmaceutical Industries

• Pharmaceutical Ingredient Weighing: Small-dose raw material weighing (0.1-10kg) employs 316L stainless steel GMP-certified models featuring polished surfaces without dead corners for sterilization compatibility, maintaining precision ≤±0.01%FS.

• Aquatic and Meat Weighing: Slaughterhouse and aquatic market cutting-line equipment incorporates waterproof, anti-corrosion IP68 designs allowing direct washing in wet, water-rich environments.

Scientific Research and Experimental Equipment

• Biological Laboratory Weighing: Research facility reagent and sample weighing employ ultra-small range models (0.01-1kg) meeting high-precision microbial culture and chemical reagent proportioning requirements.

• Medical Equipment Force Measurement: Rehabilitation equipment handgrip dynamometers and baby scales utilize lightweight aluminum alloy designs improving portability, with precision reaching ±0.005%FS.

Smart Consumer Electronics and IoT Devices

• Smart Home Appliances: Washing machine laundry weight detection and coffee maker bean bin weighing employ micro-embedded sensors enabling intelligent equipment control and enhanced user experience.

• IoT Endpoints: Smart shelf and trash can weight monitoring utilize low-power digital models supporting NB-IoT wireless transmission for remote IoT management scenarios.

5. Usage Instructions and Practical Guide

Installation Process

• Preparation: Clean installation surfaces removing oil and burrs, inspect sensor appearance for beam deformation or cable damage, and select appropriate mounting bolts avoiding high-strength fasteners on aluminum alloy models.

• Positioning and Fixing: Install the sensor horizontally on load-bearing surfaces ensuring vertical force application above the beam body, avoiding lateral impact. Apply torque wrench tightening at 5-10 N·m for aluminum models and 10-20 N·m for alloy steel, preventing over-tightening damage.

• Wiring Specifications: Follow analog signal color coding (red-power +, black-power -, green-signal +, white-signal -) or connect digital signals per pin definitions, avoiding cable pulling on micro models with 5cm redundant length recommendation.

• Protection Treatment: Seal cable connectors with waterproof tape in humid environments and clean sensor surfaces promptly in food industries to prevent material residue corrosion.

Calibration and Debugging

• Zero Calibration: Power on and preheat for 10 minutes, execute zero calibration commands ensuring output within ±0.001%FS, and verify installation flatness if deviation exceeds tolerance.

• Load Calibration: Place standard weights equivalent to 100% rated load, record output signals, and correct errors through meters or software ensuring deviation ≤ applicable precision class tolerance (C2 ≤ ±0.01%FS).

• Eccentric Load Test: Position identical weights at different sensor loading surface locations and confirm reading consistency with deviation ≤ ±0.02%FS, adjusting installation levelness as necessary.

Routine Maintenance

• Regular Inspection: Weekly surface cleaning, monthly wiring verification, quarterly supermarket scale calibration, and monthly laboratory equipment calibration maintain optimal performance.

• Fault Handling: Check power supply voltage stability (5-24V DC, typically 5V for micro models) when data drifts, verify against overloading (aluminum alloy models deform under excess load), and replace sensors when abnormal readings persist.

6. Selection Method and Parameter Determination

Select range models at 1.2-1.4 times actual maximum weight to maintain adequate light load precision. Choose accuracy Class C1 (≤±0.005%FS) for laboratory applications, C2 (≤±0.01%FS) for industrial metrology, and C3 (≤±0.02%FS) for commercial weighing. Select analog signals (0-5V) for commercial scales, digital signals (I2C/RS485) for smart devices, and wireless-equipped models for IoT applications. Match material selection to environment (aluminum alloy for dry settings, 304 stainless for food/wet environments, 316L stainless for chemical corrosion) and confirm protection rating adequacy (≥IP65 indoors, ≥IP67 for wet environments, ≥IP68 for submersible applications). Verify mounting compatibility and controller signal type matching, particularly for micro models requiring precise pin definition confirmation.

Summary

The CZL638 parallel beam load cell delivers core advantages of light load high precision, superior planar anti-off-center load performance, and convenient system integration. This beam sensor solves critical problems including small-range precise weighing accuracy, material eccentric load compensation, and equipment embedded installation requirements while emphasizing simple operation, maintenance-free reliability, and controllable costs. Successful implementation requires clarifying four core requirements: measurement range, accuracy class, available installation space, and operating environment. Following strict installation procedures, performing proper calibration protocols, and maintaining scheduled maintenance ensures long-term stable operation. This industrial load cell represents the optimal sensing solution for light load and planar weighing applications across retail, industrial automation, food processing, pharmaceutical, research, and consumer electronics sectors.

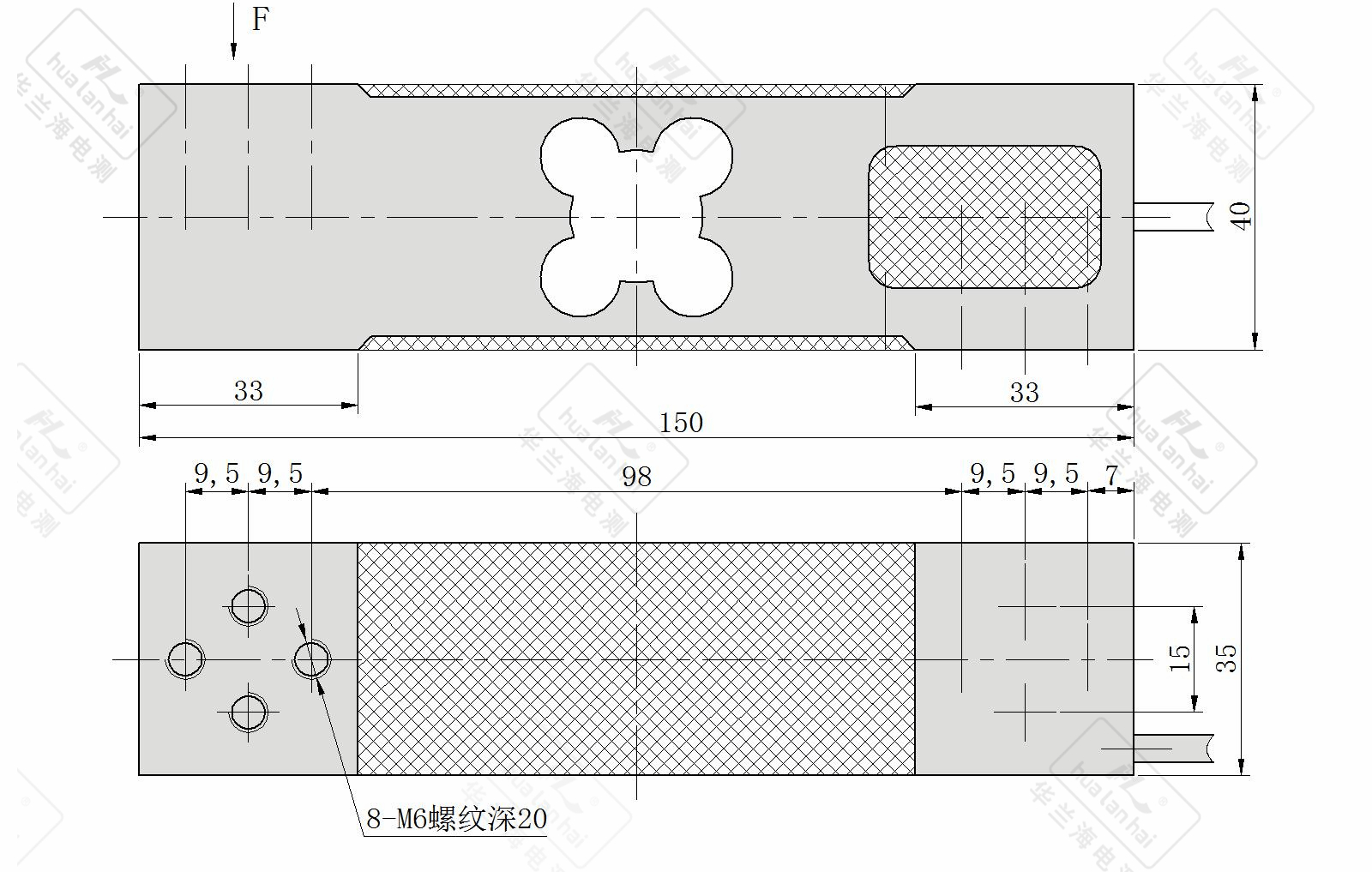

Detail Display

Technical Parameters
