Product Introduction
Strain gauge pressure sensors/transmitters are widely used in industrial equipment, water conservancy, hydraulic, pneumatic control system, power, air conditioning, environmental protection, air compressor, diamond press, metallurgy, vehicle brake, building automation and constant pressure water supply for pressure measurement and control.

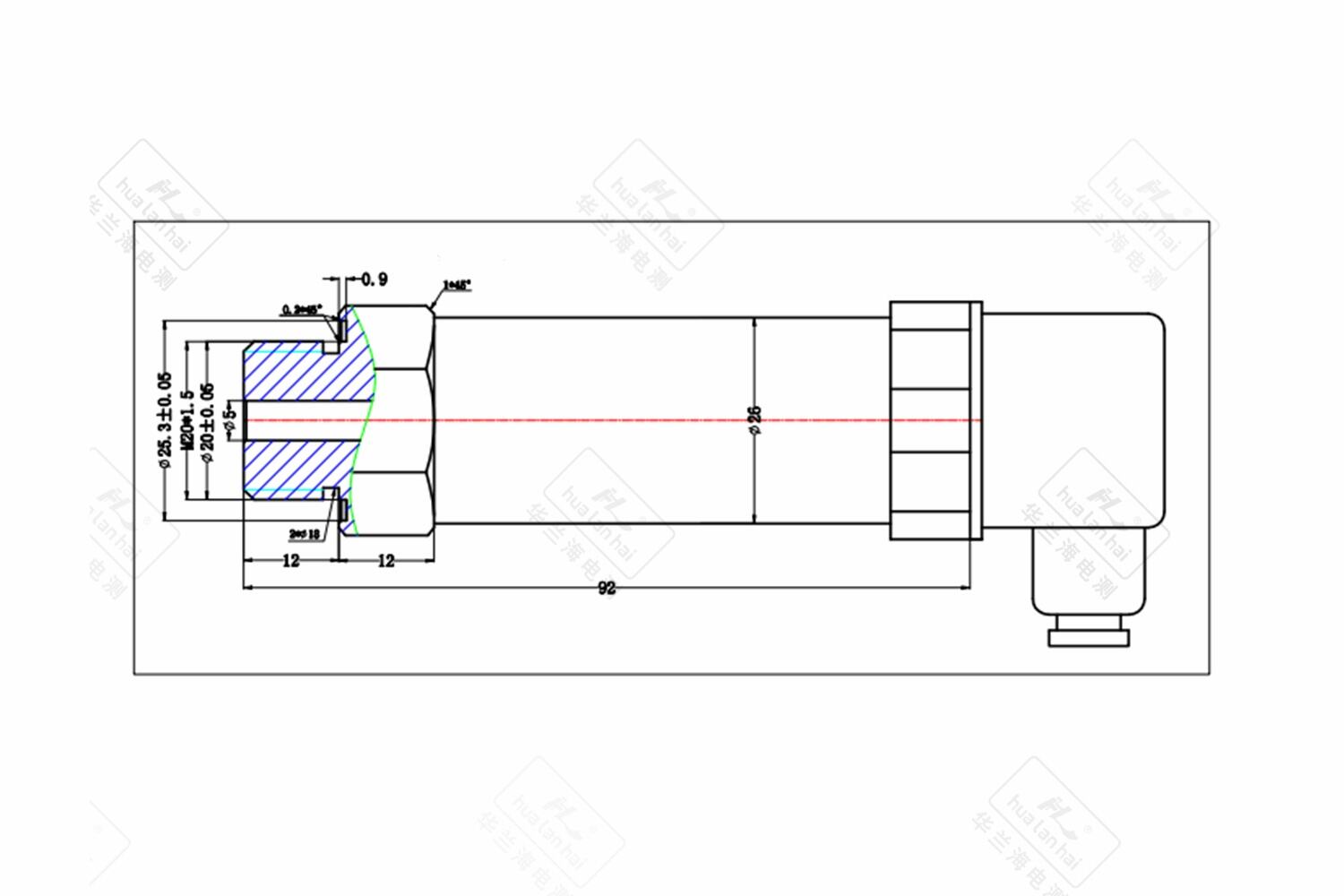

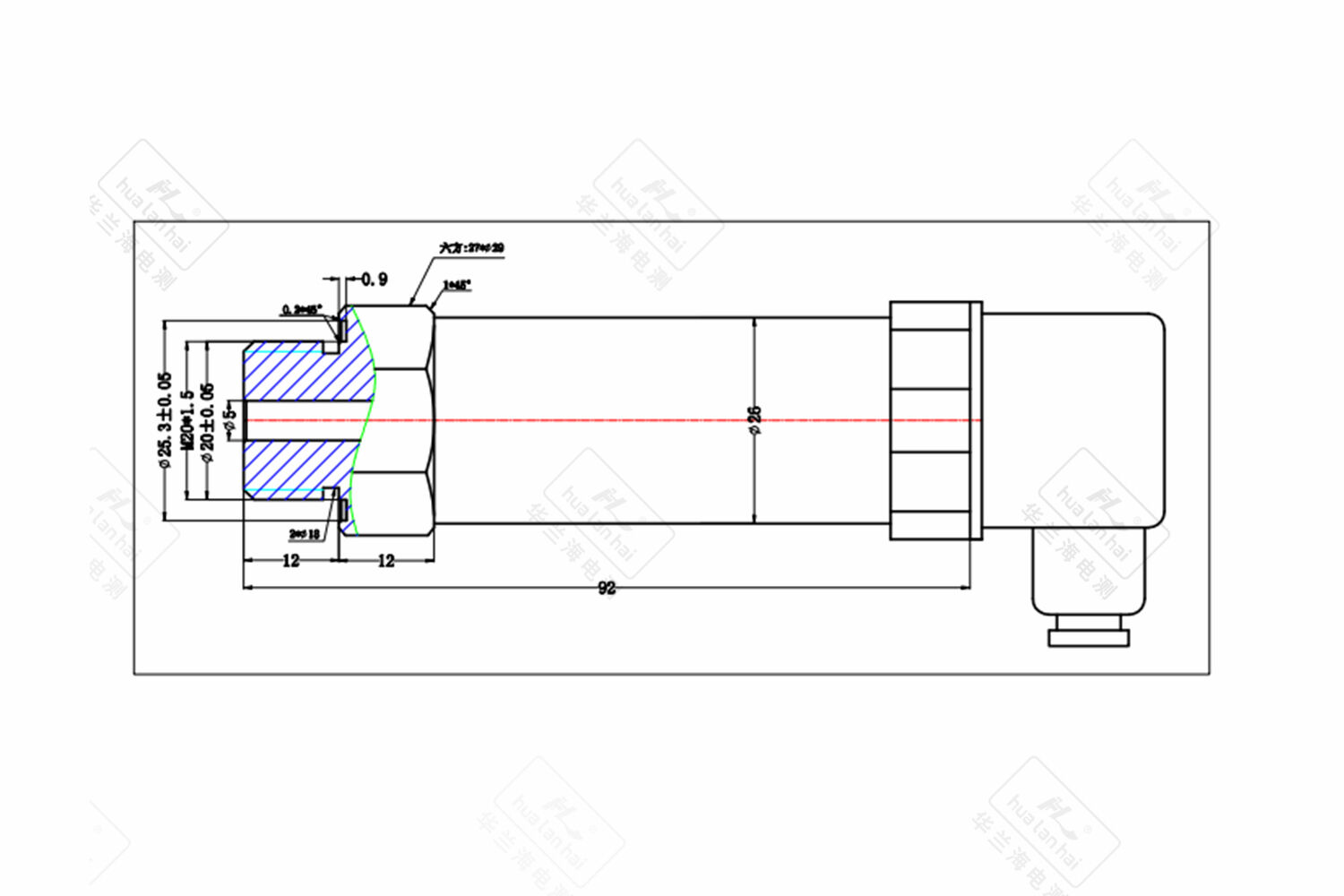

Detail Display
Parameters
| Parameter Name | Parameter Value |
| Pressure Range | 0-6MPa ~ 0-150MPa |
| Accuracy | 0.2% FS；0.3% FS；0.5% FS；1.0% FS |
| Output Signal | 4mA ~ 20mA；0V ~ 5V；0V ~ 10V |
| Excitation Voltage | 24VDC |
| Thread Connection | M20*1.5；Customize |
| Use Temp Range | -10℃ ~ 80℃ |
| Burden Resistance | Electric Current output:≤800Ω；Voltage output:≥50KΩ |
| Defend Grade | IP65 |
| Safe Overload | 120% |
| Ultimate Overload | 150% |
