Foil Resistance Strain Gauge AB Series

Product Introduction

The foil resistance strain gauge is a precision sensing component that serves as the core sensitive element in various strain measurement systems and pressure sensors. Hualanhai's foil strain gauge technology represents over 25 years of continuous development and innovation in precision strain measurement. Our foil resistance strain gauge portfolio includes both industrial-grade precision sensors and cost-effective consumer electronics variants to meet diverse application requirements.

Our precision foil strain gauge designs utilize imported foil materials combined with rigorous heat treatment protocols and advanced phenolic aldehyde substrates to achieve exceptional performance specifications. The resistance strain sensor achieves creep, hysteresis, and temperature performance characteristics within 0.007%, ensuring reliable long-term measurement accuracy. The consumer-grade foil strain gauge line maintains high production efficiency and outstanding cost-effectiveness for volume applications.

In 2023, Hualanhai introduced medium and high-temperature strain gauges specifically engineered for elevated temperature environments up to 200°C, representing a significant advancement for high-temperature pressure sensor applications. These specialized resistance strain sensor designs expand application possibilities in demanding thermal environments. With resistance ranges from 60 to 3000 ohms and sensitive grid sizes spanning 0.5 to 100mm, our foil resistance strain gauge products accommodate virtually any measurement scenario. Operating temperature range extends from -50°C to 200°C, providing versatility across industrial applications. Our manufacturing capacity reaches one million pieces daily with most production processes achieving full automation or semi-automated efficiency.

Structural Composition and Design

Each foil resistance strain gauge comprises four critical components: the substrate, sensitive grid, adhesive layer, and protective coating. The sensitive grid is precision-etched from exceptionally thin 0.005mm metal foil through advanced microfabrication techniques. This ultra-thin construction enables superior sensitivity and response, allowing the foil strain gauge to accurately capture even minimal surface deformations. The refined geometry of the sensitive grid ensures precise reflection of component surface movement, directly contributing to high measurement accuracy and reliable sensor performance in critical applications.

Technical Specifications and Customization

The AB series foil strain gauge offers extensive customization capability to match specific application requirements. Resistance values range from 60 to 5000 ohms, accommodating diverse circuit configurations and measurement systems. The sensitive grid dimensions vary from 0.5mm to 100mm, enabling precise matching to component geometry and measurement objectives. Temperature operation extends across -50°C to 200°C, providing reliable performance across seasonal variations and industrial temperature ranges. Engineers can specify exact resistance, grid size, and temperature requirements to ensure optimal sensor performance within target applications.

Diverse Industrial Applications

The foil resistance strain gauge finds extensive application across multiple industrial sectors. In weighing instruments and load cells, the strain gauge AB series provides accurate force measurement and weight determination. Industrial force measurement systems rely on our resistance strain sensor for precise tension and compression analysis. Stress analysis testing applications utilize foil strain gauge technology to understand material behavior under various loading conditions. High-temperature melt pressure sensors benefit from our specialized high-temperature foil strain gauge variants, enabling reliable pressure monitoring in thermal processing environments. Structural health monitoring, machinery diagnostics, and material testing laboratories consistently depend on Hualanhai's foil resistance strain gauge products for dependable measurement data.

Manufacturing Excellence and Quality Assurance

Hualanhai's production infrastructure combines advanced automation with rigorous quality control protocols. The foil strain gauge manufacturing process achieves high consistency and repeatability through semi-automated and fully automated production systems. Daily production capacity of one million units demonstrates our ability to support large-scale commercial projects while maintaining individual unit quality standards. Each resistance strain sensor undergoes comprehensive testing and validation before shipment, ensuring that every foil resistance strain gauge meets specified performance parameters and reliability requirements.

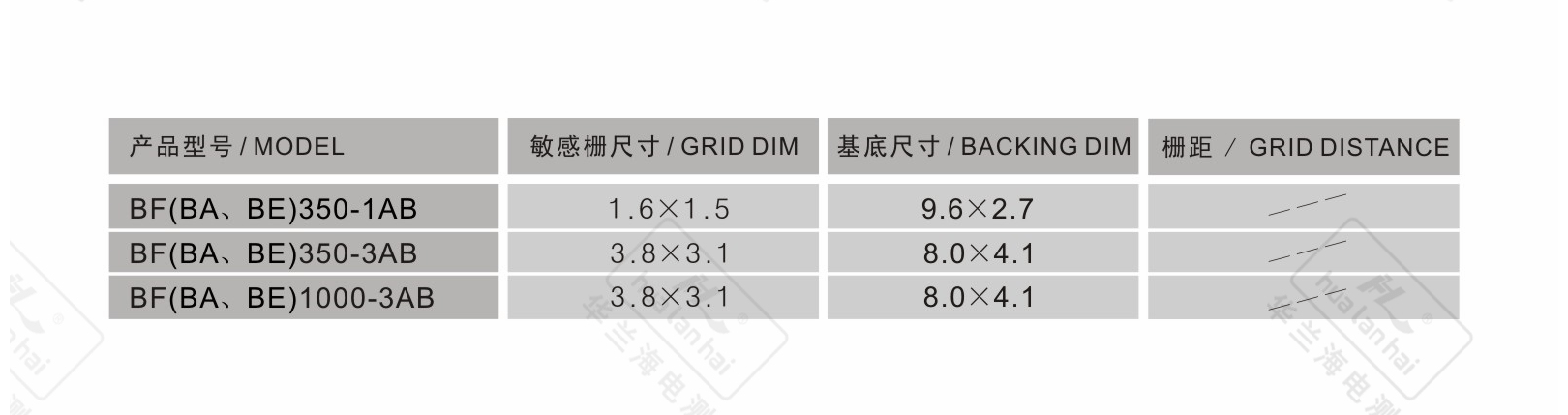

Detail Display

Why Choose Hualanhai Foil Strain Gauge Products

Selecting Hualanhai's foil resistance strain gauge ensures access to decades of development expertise, proven reliability, and comprehensive technical support. Our strain gauge AB series combines precision engineering with cost-effective manufacturing, delivering superior value across volume purchases and specialized requirements. Whether your application demands standard foil strain gauge configurations or custom resistance strain sensor specifications, Hualanhai provides reliable solutions backed by consistent quality and responsive customer service.
