Foil Resistance Strain Gauge KA Series

Product Introduction

The Hualan foil resistance strain gauge KA series represents the pinnacle of precision strain measurement technology, engineered to deliver exceptional accuracy in demanding industrial applications. Constructed with meticulous precision, this foil strain sensor consists of four essential components: a high-quality substrate, an ultra-sensitive grid pattern, a specialized adhesive layer, and a protective coating system that ensures long-term reliability and performance.

The sensitive element is meticulously crafted from 0.005mm-thick metal foil through advanced etching processes, creating an ultra-thin gauge that effectively captures minute surface deformation patterns with exceptional sensitivity. This innovative design of the KA series strain gauge ensures high measurement accuracy while maintaining excellent stability across varying environmental conditions. The foil strain sensor technology enables precise quantification of mechanical stress and strain in real-time applications.

Our foil resistance strain gauge is available in fully customizable versions with resistance ranges spanning from 60 to 5000 ohms, allowing engineers and technicians to select the optimal configuration for their specific measurement requirements. This versatility makes the KA series strain gauge an ideal choice for applications requiring tailored electrical and performance characteristics.

The precision strain measurement capabilities of our foil strain sensor have established it as an industry standard across multiple sectors. The KA series strain gauge is widely utilized in precision scales requiring accurate load cell integration, industrial force measurement systems for quality control and process optimization, comprehensive stress analysis testing equipment for material research, and high-temperature melt pressure sensors in thermoplastic processing environments. Each application demonstrates the reliability and performance consistency that defines the foil resistance strain gauge experience.

The structural design of the foil strain sensor minimizes measurement errors while the protective coating provides robust defense against moisture, chemical exposure, and mechanical damage during installation and operation. Engineers appreciate the stable temperature coefficient and excellent linearity characteristics inherent in the KA series strain gauge technology, which ensure consistent performance across extended operational periods.

Whether deployed in laboratory environments, manufacturing facilities, or field installations, the foil resistance strain gauge delivers reliable data acquisition and precise documentation of mechanical behavior. The compact design facilitates easy integration into existing measurement systems, while the robust construction of the foil strain sensor ensures compatibility with both traditional and modern data acquisition platforms.

Technical Specifications and Model Selection

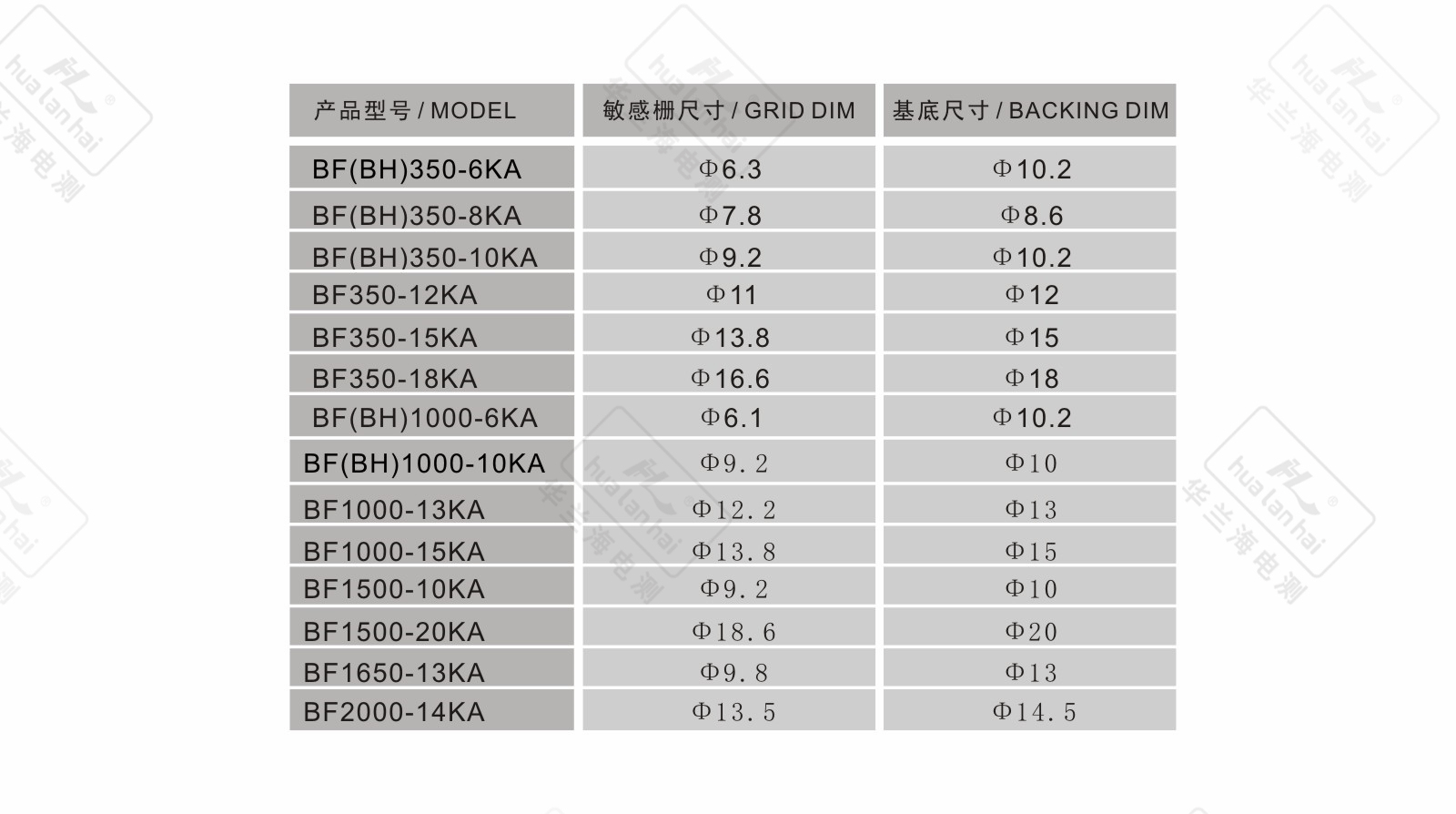

The KA series strain gauge lineup offers diverse options to accommodate various measurement geometries and installation requirements. The comprehensive model range ensures that engineers can identify the ideal foil resistance strain gauge configuration for their specific application parameters. Below is the complete technical reference table detailing grid dimensions, backing dimensions, and resistance specifications for all available KA series strain gauge models.

Key Performance Features and Applications

The foil strain sensor technology employed in the KA series represents decades of refinement in precision strain measurement instrumentation. The ultra-thin metal foil grid design ensures minimal mass addition to measurement surfaces, preventing signal distortion and maintaining structural integrity of test specimens. The foil resistance strain gauge exhibits exceptional sensitivity to localized deformation, making it ideal for applications demanding high-resolution data capture in limited measurement areas.

Installation of the KA series strain gauge is straightforward when proper surface preparation protocols are followed. The adhesive layer bonds securely to carefully prepared surfaces, creating a durable strain gauge installation that withstands thermal cycling, mechanical vibration, and environmental exposure. The protective coating provides additional assurance against contamination and mechanical damage during transport, installation, and operational service.

For precision scales and load cell applications, the foil strain sensor delivers the measurement repeatability and zero-drift characteristics essential for accurate weight determination. Industrial force measurement systems benefit from the KA series strain gauge's rapid response time and minimal hysteresis, ensuring consistent force data throughout extended measurement intervals. In stress analysis testing equipment, the foil resistance strain gauge captures complex strain distributions, enabling comprehensive material behavior documentation and structural assessment across diverse test conditions.

High-temperature melt pressure sensors represent a demanding application where the KA series strain gauge performs reliably, maintaining measurement accuracy even under thermal stress. The robust protective coating and stable material properties of the foil strain sensor ensure dependable operation in thermoplastic processing environments where temperature fluctuations and chemical exposure present continuous challenges.

Selecting the appropriate model from the comprehensive KA series strain gauge lineup ensures optimal performance for your specific measurement requirements. With resistance options and dimensional configurations carefully engineered for compatibility with diverse mounting geometries and electrical systems, the foil resistance strain gauge provides precision strain measurement solutions that exceed industry expectations for accuracy, reliability, and longevity in demanding industrial applications.
