Parallel Beam Weighing Sensor CZL628

Product Introduction

The CZL628 parallel beam weighing sensor represents a precision load cell engineered for force-sensitive detection applications based on advanced strain resistance principles. This parallel beam load cell features a dual or single parallel beam elastomer core structure that converts force into standardized electrical signals through precision strain gauge technology. When subjected to load, the bending deformation of the beam drives the strain gauge to produce resistance changes, which are then converted into calibrated electrical signals. The CZL628 combines exceptional advantages including high precision performance in light load scenarios, superior planar anti-eccentric load capability, and streamlined installation, making it ideal for small-range weighing, planar force measurement, and embedded measurement applications. This industrial load cell is particularly suited for precision weight measurement across diverse environments and equipment configurations.

1. Product Features and Functions

Core Features

• Structural Design: The CZL628 parallel beam load cell adopts an integrated parallel beam structure with beam thickness ranging from 2-15mm and length from 20-150mm. Stress distribution is uniformly concentrated in the middle section of the beam, supporting multi-angle forces in the plane with outstanding anti-eccentric load capability. This precision load cell can withstand planar eccentric loads of ±20% to ±30% of rated load without significant stress blind spots.

• Precision Performance: This industrial load cell achieves accuracy levels from C1 to C3, with mainstream CZL628 models reaching C2 classification. Nonlinearity error remains ≤ ±0.01%FS, repeatability error ≤ ±0.005%FS, and zero drift ≤ ±0.002%FS/°C, delivering superior precision performance compared to similar sensors in small-range scenarios of 0.1kg to 500kg.

• Materials and Protection: The CZL628 weighing sensor utilizes aluminum alloy for lightweight applications, alloy steel for general industrial scenarios, or 304/316L stainless steel for corrosive environments. Surface treatments include anodizing, nickel plating, or passivation, with protection levels of IP65/IP67 for standard applications and IP68 for food-grade models, ensuring reliability in complex operating conditions.

• Installation Compatibility: Standardized mounting holes accommodate both threaded and plain configurations, supporting bolt fixing or adhesive installation methods. Micro models enable embedded installation suited for narrow installation spaces in desktop weighing instruments and automated equipment, with a single unit meeting comprehensive planar weighing requirements.

Core Functions

• Light Load Force Measurement: The CZL628 focuses on static and quasi-dynamic light load weighing with response time ≤ 4ms, covering ranges from 0.1kg to 500kg. Common applications concentrate in the 1kg to 200kg range, with micro models achieving ultra-small precision weight measurement down to 0.01kg.

• Multiple Signal Output Types: This parallel beam weighing sensor provides analog signals (4-20mA, 0-3V, 0-5V) and digital signals (RS485/Modbus RTU, I2C). Micro intelligent models integrate signal conditioning modules for direct connection to microcontrollers and IoT platforms with seamless compatibility.

• Safety Protection Function: The CZL628 integrates wide temperature range compensation (-10°C to 70°C), features overload protection at 150-200% of rated load (typically 150% for aluminum alloy versions), and includes anti-shock buffer structures in selected configurations for enhanced durability.

• Long-Term Stability: Fatigue life exceeds 10⁷ load cycles with annual drift ≤ ±0.01%FS under rated load, making this industrial load cell suitable for long-term continuous operation in supermarkets, laboratories, and automated facilities.

2. Core Problems Solved

• Insufficient Precision in Light Load Scenarios: The CZL628 parallel beam weighing sensor addresses excessive error from traditional sensors in small-range applications below 10kg through optimized beam stress design, controlling measurement error within ±0.005%FS to meet high-precision requirements for food weighing and pharmaceutical counting.

• Inaccurate Measurement of Planar Eccentric Load: The uniform stress distribution of this precision load cell effectively offsets influence from eccentric loading, solving accuracy challenges in desktop weighing instruments and sorting equipment where material placement varies.

• Difficulties in Equipment Integrated Installation: The compact CZL628 structure and flexible installation methods resolve embedded installation requirements for automated equipment and smart appliances, eliminating modifications to main equipment structures and reducing integration costs.

• Poor Adaptability to Multiple Environments: Through material and protection level upgrades, this industrial load cell prevents sensor damage and signal drift in humidity-intensive scenarios (aquaculture weighing), corrosive environments (chemical reagent weighing), and dust-laden settings (flour processing).

• Cost Pressure on Small Equipment: A single CZL628 weighing sensor meets planar weighing requirements, eliminating need for multiple units. The aluminum alloy material reduces product weight and cost, solving cost control challenges for small weighing instruments and consumer electronics.

3. User Experience

• Extremely Simplified Installation: Standardized mounting holes and positioning reference surfaces eliminate professional calibration tools. Installation completes with an ordinary screwdriver on surfaces with ≤0.1mm/m flatness requirement, with single-person debugging completed within 10 minutes.

• Low Operation Threshold: The CZL628 supports one-key zeroing and single-point calibration requiring only 100% rated load standard weights. Digital models calibrate rapidly through computer software, enabling non-professional operation.

• Extremely Low Maintenance Cost: The fully sealed structure reduces dust and moisture intrusion with annual failure rate ≤0.2%. The lightweight aluminum alloy model simplifies replacement without disassembling large structures.

• Accurate Data Feedback: Static measurement data fluctuation remains ≤±0.003%FS with no hysteresis in quasi-dynamic scenarios. Digital models feature built-in zero drift compensation, eliminating frequent calibration needs and ensuring strong data stability.

• Good Integration Adaptability: Micro CZL628 models feature compact dimensions (minimum 20mm×10mm×5mm), embedding inside smart devices without affecting appearance. Signal output remains compatible with mainstream controllers for plug-and-play integration.

4. Typical Application Scenarios

1) Civil and Commercial Light Load Weighing Instruments

• Supermarket pricing scales/electronic platform scales: The CZL628 parallel beam load cell serves as the core sensing unit for 3-30kg pricing scales with lightweight aluminum alloy design. Anti-eccentric load characteristics ensure consistent weighing accuracy across different placement positions with error ≤±1g.

• Express electronic scales: This precision load cell equips 1-50kg express weighing equipment with stainless steel construction for anti-fouling and easy cleaning. IP67 protection suits humid and dusty express delivery environments for fast continuous weighing.

• Kitchen scales/baking scales: The CZL628 weighing sensor enables 0.01-5kg high-precision kitchen scales with micro parallel beam configuration achieving milligram-level accuracy. Digital signal output integrates with high-definition displays for precise ingredient proportioning.

2) Industrial Automation Equipment

• Automated sorting equipment: This industrial load cell installs under sorting conveyor belts for real-time product weight detection linked to sorting mechanisms, achieving ±0.1g sorting accuracy in food and hardware industries.

• Material detection on assembly lines: The CZL628 determines material shortage on electronic component assembly lines through weighing with ≤4ms response time suitable for high-speed production pipelines.

• Quantitative control of packaging machines: This precision weight measurement sensor ensures quantitative weighing for small particle and powder packaging with C2 accuracy models maintaining per-bag weight error ≤±0.2%, meeting metrological standards.

3) Food and Pharmaceutical Industries

• Weighing of pharmaceutical ingredients: The CZL628 parallel beam load cell handles small-dose raw material weighing (0.1-10kg) with 316L stainless steel and GMP certification. Polished surfaces without dead corners enable easy disinfection while maintaining accuracy ≤±0.01%FS.

• Weighing of aquatic products/meat: This industrial load cell features waterproof anti-corrosion design (IP68) for slaughterhouse and market applications, withstanding direct washing in humid water-rich environments.

4) Scientific Research and Experimental Equipment

• Weighing in biological experiments: Ultra-small range CZL628 models (0.01-1kg) meet high-precision requirements for microbial culture and chemical reagent proportioning in laboratory settings.

• Force measurement in medical equipment: This precision load cell measures force and weight in rehabilitation equipment and medical scales with lightweight aluminum design improving portability while delivering accuracy up to ±0.005%FS.

5) Smart Consumer Electronics and IoT Devices

• Smart home appliances: The CZL628 detects laundry weight in washing machines and coffee bean quantities in coffee makers, with micro embedded sensors enabling intelligent equipment control and enhanced user experience.

• IoT endpoints: This weighing sensor monitors weight on smart shelves and smart trash cans with low-power digital models supporting NB-IoT wireless transmission for remote management scenarios.

5. Usage Method (Practical Guide)

1) Installation Process

• Preparation: Clean the installation surface of oil stains and burrs, inspect sensor appearance for beam deformation or cable damage, select appropriate mounting bolts for the range avoiding high-strength bolts for aluminum alloy models.

• Positioning and fixing: Horizontally install the CZL628 load cell on load-bearing surface ensuring vertical load above beam body without lateral impact. Use torque wrench for bolt tightening (5-10N·m for aluminum alloy, 10-20N·m for alloy steel) preventing over-tightening damage.

• Wiring specifications: For analog signals follow "red-power+, black-power-, green-signal+, white-signal-"; for digital signals connect per pin definition. Avoid pulling micro model cables and reserve 5cm redundant length.

• Protection treatment: Seal cable connectors with waterproof tape in humid environments and clean sensor surfaces after use in food industry to prevent corrosion.

2) Calibration and Adjustment

• Zero calibration: Power on and preheat for 10 minutes, execute "zero calibration" command ensuring zero output within ±0.001%FS, checking installation surface flatness if deviation exceeds limits.

• Load calibration: Place standard weights at 100% rated load, record output signal values, correct error through meter or software maintaining error ≤ corresponding accuracy level allowance (C2 level ≤ ±0.01%FS).

• Eccentric load test: Position equal weights at different locations on sensor bearing surface observing reading consistency with deviation ≤ ±0.02%FS, adjusting installation level if necessary.

3) Daily Maintenance

• Regular inspection: Clean sensor surface weekly, inspect wiring monthly, calibrate supermarket scales quarterly, and calibrate laboratory equipment monthly for consistent accuracy.

• Fault handling: Check power supply voltage (stable 5-24V DC, typically 5V for micro models) when data drifts, check overload conditions when readings become abnormal (aluminum alloy prone to permanent deformation), and replace if necessary.

6. Selection Method (Precise Matching of Requirements)

1) Core Parameter Determination

• Range selection: Select at 1.2-1 times maximum actual weight (10kg maximum requires 12-14kg sensor) avoiding insufficient accuracy from oversized ranges in light load scenarios.

• Accuracy level: Laboratory/medicine applications choose C1 level (error ≤ ±0.005%FS), industrial metrology selects C2 level (error ≤ ±0.01%FS), and civil weighing instruments opt for C3 level (error ≤ ±0.02%FS).

• Signal type: Civil weighing instruments select analog signal (0-5V), intelligent devices choose digital signal (I2C/RS485), and IoT scenarios use models with wireless modules.

2) Environmental Adaptability Selection

• Temperature: Regular scenarios (-10°C to 60°C) use standard models, low-temperature refrigeration (-20°C to 0°C) requires low-temperature resistant models, and high-temperature scenarios (60°C to 80°C) need high-temperature compensation models.

• Medium: Dry environments use aluminum alloy, humid/food industries choose 304 stainless steel, and chemical corrosive environments select 316L stainless steel.

• Protection level: Indoor dry environments require ≥IP65, humid/flushing environments need ≥IP67, and underwater or highly corrosive environments demand ≥IP68.

3) Installation and System Compatibility

• Installation method: Desktop scales use bolt fixing, smart devices select embedded installation, and space-limited scenarios prioritize micro models with length ≤30mm.

• Compatibility: Confirm sensor power supply voltage and signal type match controller specifications. For micro models verify pin definitions to avoid wiring errors and module damage.

4) Additional Requirement Confirmation

• Certification requirements: Food and pharmaceutical industry applications require FDA/GMP certification, measurement scenarios need CMC certification, and export products require OIML certification.

• Special functions: High-speed sorting applications select models with ≤3ms response time, low-power consumption scenarios choose IoT models with ≤10μA sleep current, and hygiene scenarios select integrated models without threads or dead corners.

Summary

The CZL628 parallel beam weighing sensor delivers core advantages of light load high precision, flat anti-eccentric load capability, and convenient system integration. This precision load cell solves critical challenges including precise small-range weighing, material eccentric load compensation, and embedded equipment installation. User experience emphasizes simple operation, minimal maintenance requirements, and controlled total cost of ownership. When selecting an industrial load cell, prioritize four core requirements: measurement range, accuracy classification, available installation space, and operating environment. Combine these decisions with system compatibility evaluation and special function assessment. During operation, prevent overload conditions and lateral impacts while strictly following regular calibration protocols to ensure long-term stable performance. The CZL628 parallel beam load cell represents the optimal sensing solution for light load weighing instruments, industrial automation equipment, food and pharmaceutical applications, and advanced measurement scenarios requiring precision weight measurement and planar force detection.

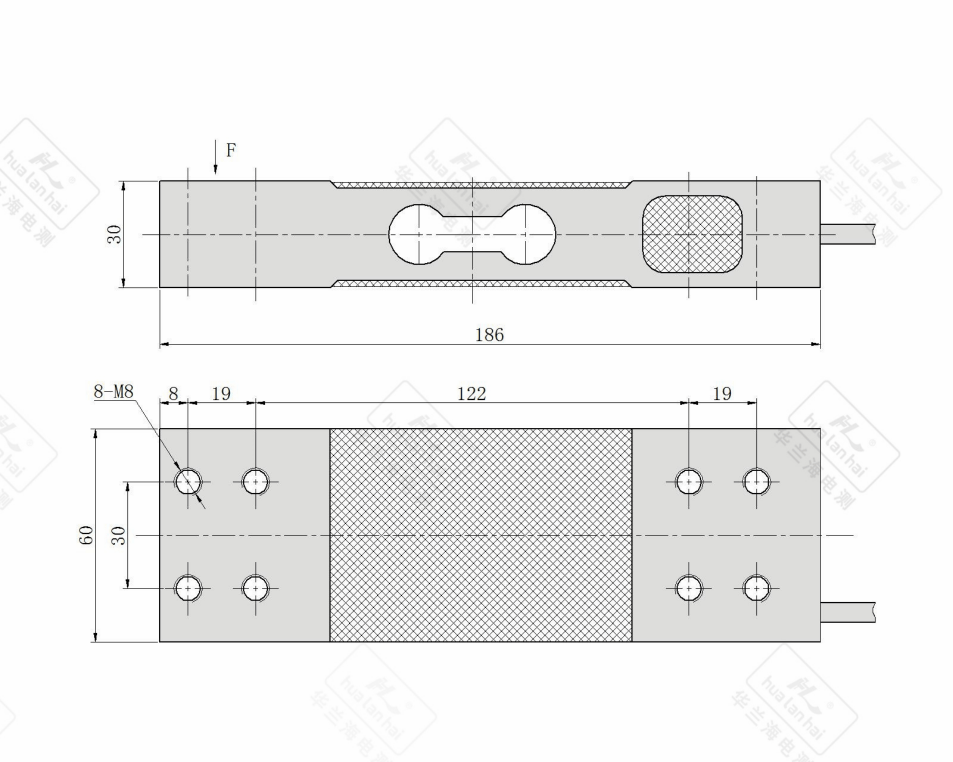

Detail Display
