Aluminum Micro Sensor CZL611N

Product Introduction

The CZL611N aluminum micro sensor represents an advanced miniaturized weight measurement component developed based on proven strain gauge technology. This micro load cell converts weight signals into precise electrical signals through highly sensitive strain-gauge elastomer structures, delivering exceptional accuracy in compact form. With dimensions typically ranging from 5mm×5mm×2mm to 30mm×20mm×10mm and weighing only 0.1g to 5g, the CZL611N load cell combines superior measurement capability with extreme portability. The measurement range spans from grams to kilograms, making this pressure sensor load cell ideal for applications in confined spaces and lightweight scenarios. As a core component for precision weighing in medical equipment, consumer electronics, intelligent devices, and scientific research, the aluminum micro sensor serves as the essential foundation for enabling weight sensing capabilities in modern micro devices.

1. Core Features And Functions

1) Miniaturization Core Characteristics

• Ultra-small volume and lightweight: The CZL611N micro load cell features dimensions controlled within 5mm×5mm×2mm to 30mm×20mm×10mm range, with customized versions available down to millimeter-level specifications. Weighing only 0.1g to 5g, this aluminum micro sensor embeds seamlessly into confined spaces such as smartwatches and micro pumps without compromising device structure or performance.

• Compact structural design: Most models employ integrated packaging, consolidating sensitive elements and signal conditioning circuits into a single micro housing. The CZL611N load cell supports installation methods including surface mount and lead-type configurations, allowing direct soldering or snap-fit fixation on PCB boards for streamlined assembly.

2) Weighing Performance Advantages

• Wide-range accurate measurement: This pressure sensor load cell delivers measurement ranges from 0.1g to 50kg, with core measurement accuracy of ±0.01%FS to ±0.1%FS and resolution capability reaching 0.001g. The CZL611N aluminum micro sensor accommodates both microgram-level laboratory sample weighing and gram-level consumer electronics weight monitoring applications.

• Fast dynamic response: Response time remains at or below 10ms, enabling real-time capture of instantaneous weight variations. The micro load cell excels in high-speed light-load automated sorting operations and medical infusion drip-rate monitoring, preventing measurement delays that could compromise system accuracy.

• Stable anti-interference ability: Integrated temperature compensation modules adapt to -10°C to 60°C operating environments, offsetting environmental temperature fluctuations. The CZL611N load cell employs differential signal output and electromagnetic shielding design to resist internal circuit interference, ensuring consistent data stability and reliability.

3) Integration and Adaptation Functions

• Multi-signal output adaptation: The CZL611N micro load cell supports both analog signals (0-5V, 4-20mA) and digital signals (I2C, SPI, UART) output configurations. Direct connectivity to micro control units including MCUs, single-chip microcomputers, and compact PLCs eliminates the need for additional signal amplification modules, simplifying system integration.

• Material and medium compatibility: The aluminum micro sensor features sensitive elements constructed from 316L stainless steel, titanium alloy, or engineering plastics, with anti-corrosion housing treatment. This pressure sensor load cell resists contamination and corrosion when exposed to medical body fluids, food materials, and electronic components.

• Low power consumption characteristics: Static power consumption remains at or below 10mA, with sleep mode capability as low as 10μA. The CZL611N load cell suits battery-powered portable devices including handheld weighing scales and smart wearable devices, significantly extending operational battery life.

2. Solving Core Industry Pain Points

The CZL611N aluminum micro sensor directly addresses critical limitations of traditional load cells in light-load and miniaturized weighing applications. This micro load cell overcomes integration obstacles in micro devices, resolving the incompatibility of conventional sensors with small embedded systems such as smartbracelet body weight monitoring and medical pump medication control. The pressure sensor load cell delivers light-load high-precision measurement capability, providing accurate gram-level and milligram-level weighing for laboratory samples and electronic component verification. Its superior power efficiency solves portable device battery-life challenges affecting handheld express scales and outdoor sample collection equipment. The compact design penetrates complex installation spaces including automated equipment internal components and pipeline fluid monitoring where traditional sensors cannot fit. Additionally, the multi-signal compatibility of the CZL611N load cell eliminates integration friction between legacy sensors and modern control systems, reducing circuit design complexity and R&D expenses for small device manufacturers.

3. User Experience Highlights

• High integration convenience: Standardized pin layout with compact package size enables direct PCB soldering or snap fixation without complex mechanical structures. The CZL611N micro load cell reduces integration time below 30 minutes, substantially improving equipment production efficiency and time-to-market performance.

• Simple debugging operation: Digital signal models support one-click zero and range calibration through simple instructions, while analog variants deliver excellent linearity requiring only basic circuit configuration. The aluminum micro sensor reduces technical requirements for R&D personnel and accelerates product development cycles.

• Strong stability in use: Temperature compensation and interference rejection design maintain data drift below ±0.05% FS annually, eliminating frequent recalibration requirements in portable and embedded applications. This reliability significantly reduces maintenance workload and ownership costs throughout the product lifecycle.

• Flexible and diverse selection: The CZL611N load cell family offers multiple configurations including varied measurement ranges, signal types, and mounting methods. Buyers select models matching specific equipment size, power supply voltage, and accuracy requirements, with manufacturers supporting small-batch customization for specialized applications.

• Reasonable cost control: Bulk purchasing enables single-unit costs ranging from tens to hundreds of yuan, delivering savings exceeding 50% compared to customized micro-sensing solutions. The low power consumption characteristics further reduce overall equipment energy consumption and operational expenses.

4. Typical Usage Scenarios

Medical and Health Field: The CZL611N aluminum micro sensor integrates into infusion monitoring equipment for real-time drug solution weight tracking and flow rate calculation with empty-bottle alerts. This pressure sensor load cell supports rehabilitation scales and prosthetic weight modules, enabling safe weight feedback during therapy. Laboratory applications employ the micro load cell in micro-pipettes and biochemical analyzers for reagent and sample weight verification.

Consumer Electronics and Smart Wearables: The CZL611N load cell embeds within smartwatches and bracelets for indirect weight measurement and exercise force monitoring. Smart kitchen devices utilize this aluminum micro sensor for precise material weighing in cooking applications. Portable scales benefit from the compact, power-efficient design enabling convenient real-time measurement.

Industrial Automation and Micro-manufacturing: SMT production lines employ the CZL611N micro load cell for component weight verification and quality screening. Micro-assembly robots use this pressure sensor load cell as end-effector weight sensors for grasp confirmation. Fluid control systems integrate the aluminum micro sensor for precise metering pump and fuel injector volume monitoring.

Research and Testing: Material science applications measure nanomaterial and thin-film sample weights during mechanical testing. Environmental monitoring equipment employs the CZL611N load cell for pollutant sample weight analysis in water quality and air sampling systems.

Logistics and Retail: Automated sorting systems utilize this micro load cell for package weight classification. Jewelry and precious metal scales benefit from the compact aluminum micro sensor design for counter-space-efficient placement.

Summary

The CZL611N aluminum micro sensor delivers competitive advantages through its combination of miniaturization, measurement precision, and power efficiency. This pressure sensor load cell transcends traditional space and range limitations, precisely matching light-load weighing requirements across medical, consumer electronics, and micro-manufacturing sectors. The convenient integration methodology, reliable performance characteristics, and cost-effective positioning enable functional upgrades in micro-devices while providing dependable support for achieving precision, miniaturization, and intelligent weighing capabilities. The CZL611N load cell represents an essential component within modern sensing technology infrastructure, enabling innovation and performance advancement across diverse industrial applications.

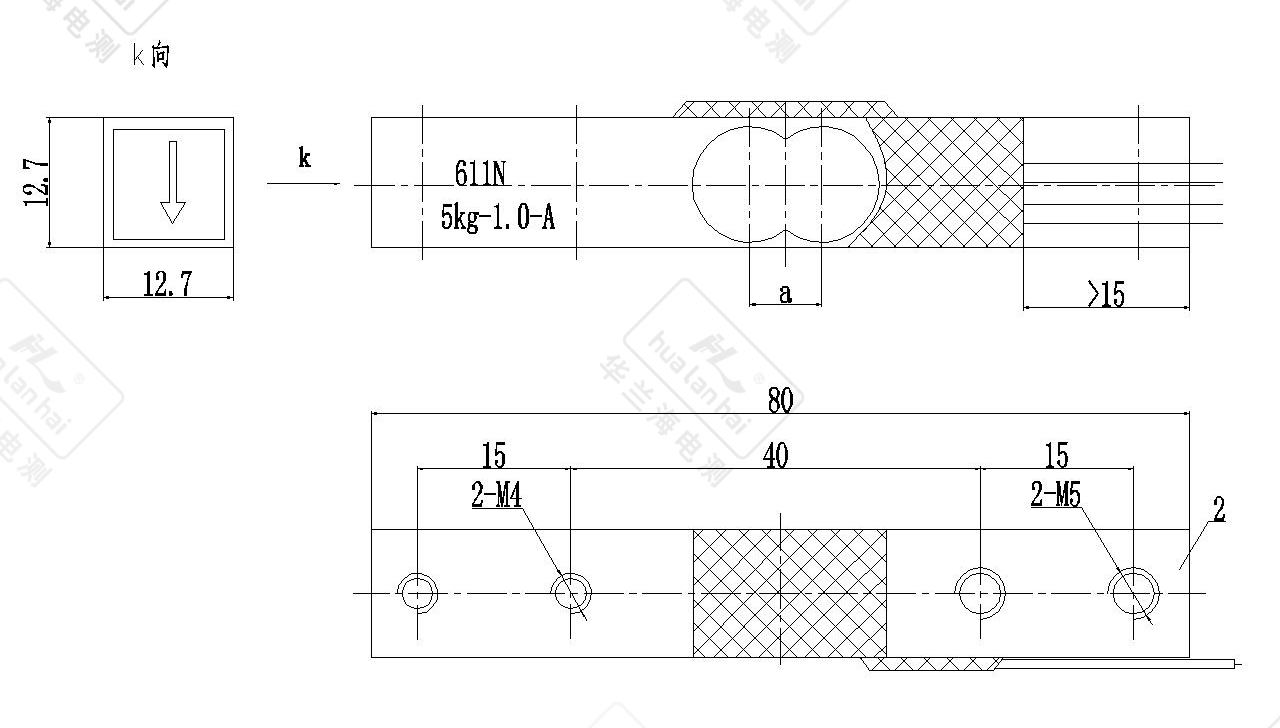

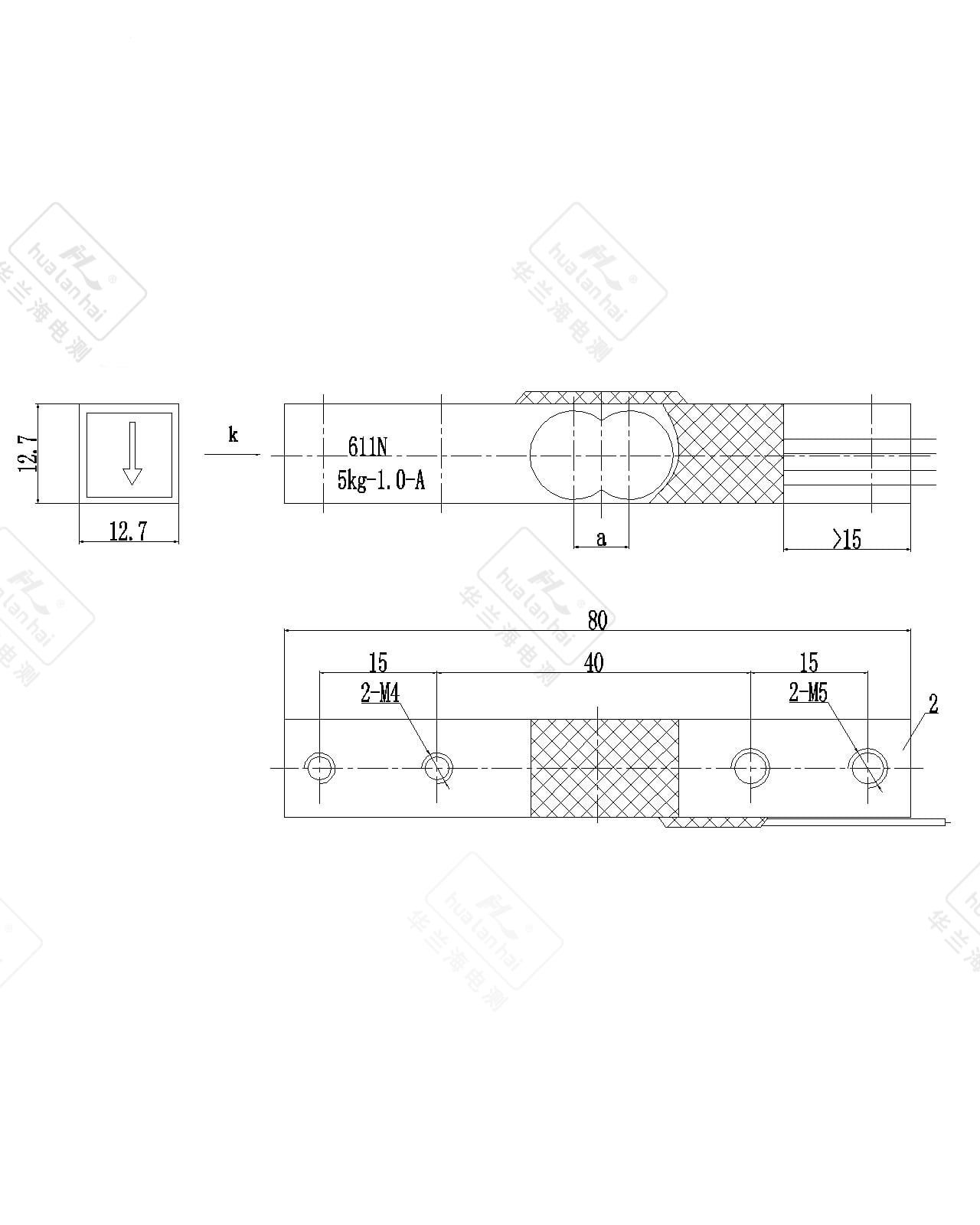

Detail Display

Parameters
