Foil Resistance Strain Gauge 2GB Series

Product Introduction
The Hualan foil resistance strain gauge 2GB series represents a precision measurement solution engineered for demanding industrial applications. This advanced foil strain gauge comprises four essential components: a high-quality substrate, a sensitive etched grid, a specialized adhesive layer, and a protective coating system. The strain gauge sensor is meticulously crafted from ultra-thin 0.005mm metal foil using precision etching technology, which creates an exceptionally responsive sensing element capable of capturing minute surface deformations with exceptional accuracy. This foil strain gauge design ensures reliable performance across diverse measurement scenarios where precision and durability are paramount. The 2GB series strain gauge is available in fully customizable resistance ranges spanning 60 to 5000 ohms, allowing engineers and manufacturers to select the ideal configuration for their specific measurement requirements.

Technical Advantages
The foil resistance strain gauge 2GB series delivers superior performance through its innovative construction methodology. The ultra-thin sensitive grid measures just 0.005mm in thickness, enabling exceptional sensitivity to structural deformation while maintaining excellent stability over extended measurement periods. This foil strain gauge configuration allows for rapid response to dynamic loading conditions, making it suitable for real-time monitoring applications. The strain gauge sensor's multilayered design provides mechanical protection while preserving measurement fidelity. The protective coating ensures longevity and maintains calibration accuracy, even when exposed to challenging environmental conditions. Advanced adhesive formulations used in the 2GB series strain gauge allow for reliable bonding to diverse substrate materials, ensuring consistent signal transmission and eliminating measurement errors caused by poor adhesion.

Application Spectrum
The foil resistance strain gauge technology finds extensive utilization across multiple industrial sectors. In weighing instruments and load cells, the strain gauge sensor provides precise weight measurement capabilities essential for commercial and industrial scales. Force measurement systems rely on the 2GB series strain gauge for accurate load quantification in compression and tension applications. Stress analysis testing utilizes this foil strain gauge to evaluate material properties, structural integrity, and component behavior under various loading conditions. High-temperature melt pressure sensors benefit from the robust construction of the foil strain gauge, which maintains measurement accuracy in thermally demanding environments. Additionally, the strain gauge sensor proves invaluable in structural health monitoring, aerospace component testing, automotive crash analysis, and precision manufacturing quality control applications. Engineers and technical professionals across industries recognize the 2GB series strain gauge as a dependable solution for critical measurement challenges.

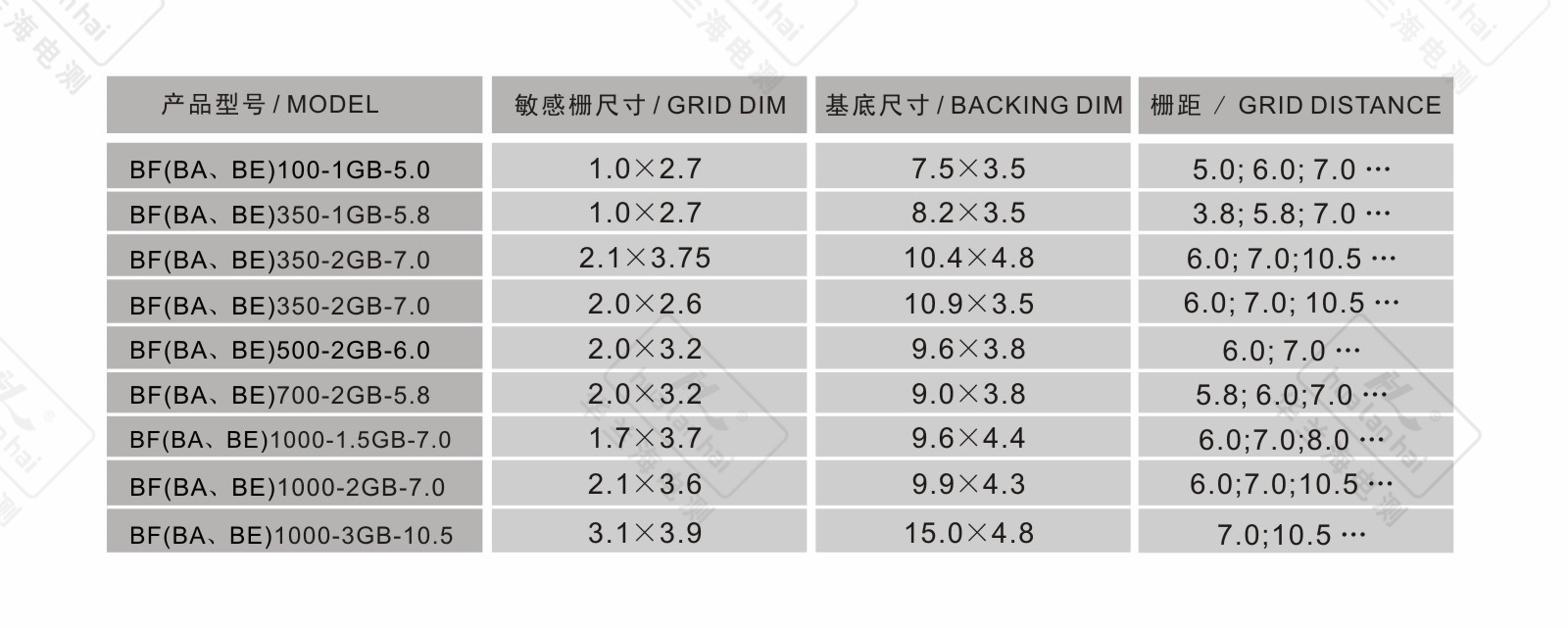

Design and Construction Details

Installation and Integration
Installing the foil resistance strain gauge requires careful surface preparation to ensure optimal performance. The substrate surface must be clean, dry, and properly prepared according to industry standards. The specialized adhesive layer bonds securely to the measurement surface, creating a reliable connection that transmits structural deformation signals to the sensitive grid. The strain gauge sensor configuration allows straightforward integration into existing measurement systems and data acquisition equipment. Proper wiring and signal conditioning ensure accurate transmission of strain measurements to monitoring or recording devices. The foil strain gauge operates effectively with standard bridge circuits, amplifiers, and digital measurement instruments commonly found in industrial laboratories and production facilities.

Performance Characteristics
The 2GB series strain gauge exhibits exceptional linearity across its measurement range, providing consistent and reproducible results. The foil resistance strain gauge maintains calibration stability over extended service periods, reducing the need for frequent recalibration. Temperature compensation features inherent to the design minimize thermal drift effects commonly encountered in precision measurement applications. The strain gauge sensor's frequency response enables accurate measurement of both static and dynamic loading conditions. The foil strain gauge construction provides excellent fatigue resistance, making it suitable for cyclical loading environments. Long-term reliability of the 2GB series strain gauge has been validated through rigorous testing protocols, establishing it as a trusted solution for mission-critical measurement applications where accuracy and dependability cannot be compromised.

Customization and Selection
The foil resistance strain gauge 2GB series accommodates diverse application requirements through comprehensive customization options. Resistance values from 60 to 5000 ohms enable compatibility with various measurement systems and signal conditioning equipment. The strain gauge sensor configuration can be tailored to specific geometric requirements, dimensional constraints, and substrate types. Engineers can specify gauge factor values, temperature compensation characteristics, and protective coating options based on their particular operational environments. This flexibility in the foil strain gauge design allows procurement professionals and technical teams to obtain instruments precisely matched to their measurement objectives, ensuring optimal performance and cost efficiency throughout the product lifecycle.
