Portable Weighing Instrument BX1E3W

Product Introduction

The Portable Weighing Instrument BX1E3W represents an advanced solution for dynamic truck scale and axle weight measurement applications. This portable axle weighing system combines wireless technology with precision engineering to deliver reliable weight data for road enforcement, traffic management, and overload detection. The portable truck scale is engineered for mobile deployment, enabling rapid and accurate assessment of vehicle loads in compliance with modern transportation regulations.

1. Product Configuration

The Portable Weighing Instrument BX1E3W system includes the following core components:

① Two wireless weighing platforms for dual-axle measurement capability ② One wireless key-operated instrument with integrated display and control interface ③ Standard accessories including AC charger, vehicle charger, printing paper, ribbon cartridges, and connection cables

2. Specification Parameters

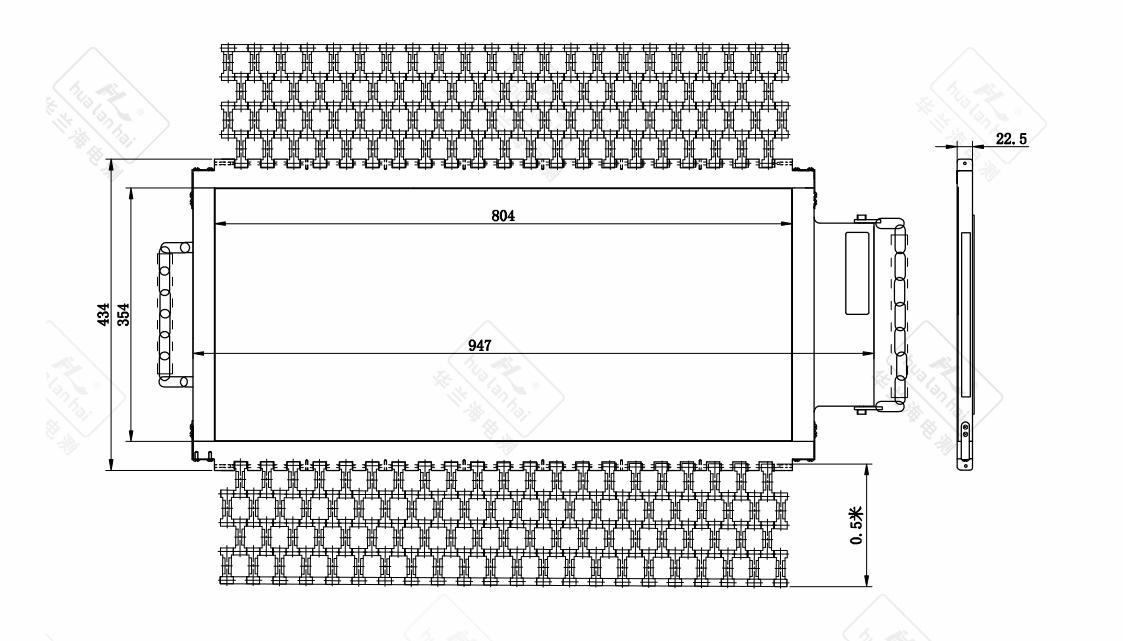

• Dimensions: ① Weighing platform: 800×350×22mm (compact design for portable deployment) ② Instrument: 430×335×170mm (handheld-friendly dimensions)

• Weight: ① Weighing platform: 28Kg per unit (lightweight for field transportation) ② Instrument: 9Kg including battery (ergonomic portability)

• Weighing Range: ① Wheel load capacity: 0～20 tons ② Single axle load capacity: 0～40 tons ③ Gross vehicle weight rating: 0～1000 tons

• Accuracy Performance: Static accuracy ±1.0% FS; Dynamic accuracy ±3.0% FS (meets precision requirements for enforcement)

• Wireless Transmission Range: ① Open field (without obstacles): 25 meters ② Obstructed environment: 20 meters

• Operating Temperature Range: -30～80℃ operational; -40～80℃ storage temperature (all-weather capability)

• Relative Humidity Tolerance: <90%RH (suitable for diverse climate conditions)

• Environmental Protection Rating: ① Wireless weighing platform IP67 (full dust protection, submersion resistant) ② Wireless instrument IP65 (dust and water resistant)

3. Functional Characteristics

• Advanced Wireless Technology: The portable axle weighing system utilizes digital wireless transmission, eliminating cable damage and operational inconvenience. Ultra-high carrier frequency technology significantly enhances anti-interference capabilities, providing superior dynamic measurement accuracy and reliable performance in electromagnetic-dense environments.

• Multi-Mode Operation: The portable truck scale features three operational modes (Road Administration, Traffic Police, and Eight Ministries & Commissions), plus dedicated printing mode. Configuration aligns with China's "Regulations on the Administration of Overloaded Transport Vehicles on Highways" (Ministry of Transport Order No. 62, 2016), ensuring regulatory compliance.

• Enhanced Accuracy Through Calibration: Each weighing platform undergoes independent calibration with 10-point correction capability, significantly elevating measurement precision and consistency across different load conditions and operational scenarios.

• Comprehensive Data Logging: The instrument displays real-time time, date, and vehicle identification information. Integrated battery level monitoring for both the instrument and weighing platforms ensures operational reliability, while vehicle speed display (Km/h) supports dynamic assessment.

• Zero-Drift Elimination: Floating zero technology combined with zero tracking technology completely eliminates measurement drift, ensuring long-term accuracy and reducing recalibration requirements.

• Multi-Axle Measurement: The portable weighing instrument can sequentially measure up to 20 axles, accommodating complex vehicle configurations and providing comprehensive load distribution analysis.

• Legal Enforcement Documentation: The integrated micro-printer generates comprehensive compliance reports including inspection unit, timestamp, vehicle number, axle weights, total measured weight, approved capacity, overload percentage, and inspector identification—all formatted as legally admissible evidence documentation.

• Computer Integration Capability: Standard RS-232 interface enables seamless connectivity with external computer systems. Single-unit data storage capacity reaches 1000 measurement records, supporting comprehensive record-keeping and fleet analysis.

• Extended Operational Autonomy: Dual charging capability (AC wall charger and automotive charger) with high-capacity internal battery delivers hundreds of inspection cycles per single charge, maximizing field deployment productivity and reducing charging frequency requirements.
