Parallel Beam Weighing Sensor CZL650

Product Introduction

The CZL650 parallel beam weighing sensor is a precision force-sensitive detection element engineered on the strain-resistive principle, featuring a robust double or single parallel beam elastomer core structure. When subjected to loading, the beam's bending deformation activates strain gauges that generate precise resistance changes, which are converted into standardized electrical signals. This parallel beam weighing sensor combines exceptional advantages including high precision for light loads, superior planar anti-eccentric load capacity, and streamlined installation compatibility. These characteristics make the CZL650 load cell ideal for small-range weighing applications, planar force measurement, and embedded sensing scenarios across diverse industrial and commercial sectors.

1. Product Features and Functions Core Features

• Structural Design: The CZL650 beam load cell sensor adopts an integrated parallel beam architecture (beam thickness 2-15mm, length 20-150mm) with uniform stress distribution concentrated in the middle beam section. This design supports multi-directional planar forces with outstanding anti-eccentric load capacity, withstanding planar off-center loads of ±20%-±30% of rated load, while eliminating stress blind spots.

• Precision Performance: This industrial weighing sensor achieves accuracy levels spanning C1-C3, with mainstream configurations reaching C2 certification. Nonlinearity error remains ≤±0.01%FS, repeatability error ≤±0.005%FS, and zero drift ≤±0.002%FS/°C, delivering superior precision performance compared to comparable sensors in small-range scenarios between 0.1kg-500kg.

• Materials and Protection: Elastomer materials include aluminum alloy (lightweight applications), alloy steel (general industrial use), or 304/316L stainless steel (corrosive environments), with surface treatments of anodizing, nickel plating, or passivation. Protection levels typically reach IP65/IP67, with food-grade variants achieving IP68 for complex environmental conditions.

• Installation Compatibility: The CZL650 load cell sensor provides standardized mounting holes (threaded or plain) supporting bolt fixing or adhesive installation. Micro models enable embedded mounting suitable for narrow equipment spaces, desktop weighing instruments, and automated systems, achieving planar weighing requirements with a single unit.

Core Functions

• Light Load Force Measurement: Focused on static and quasi-dynamic light load weighing with response time ≤4ms, this parallel beam weighing sensor covers 0.1kg-500kg range, with typical applications concentrated in 1kg-200kg. Micro models achieve ultra-small range measurement down to 0.01kg precision.

• Multiple Signal Output Types: Supports both analog signals (4-20mA, 0-3V, 0-5V) and digital signals (RS485/Modbus RTU, I2C). Micro intelligent models integrate signal conditioning and connect directly to microcontrollers and IoT modules for seamless integration.

• Safety Protection Function: Integrated wide temperature range compensation (-10°C~70°C), overload protection (150%-200% rated load, typically 150% for aluminum models), and optional anti-shock buffer structures ensure reliable operation under challenging conditions.

• Long-Term Stability: Fatigue life exceeds 10⁷ load cycles with annual drift ≤±0.01%FS under rated load, making this beam load cell sensor suitable for continuous long-term operation in supermarkets, laboratories, and industrial facilities.

2. Core Problems Solved

• Insufficient Precision in Light Load Scenarios: Addressing traditional sensor errors in ranges below 10kg, the CZL650 parallel beam weighing sensor controls measurement error within ±0.005%FS through optimized beam stress design, solving high-precision requirements for food weighing and pharmaceutical quantity verification.

• Inaccurate Eccentric Load Measurement: The parallel beam structure's uniform stress distribution effectively counteracts off-center loading effects, solving accuracy problems for non-fixed material placement in desktop weighing instruments and sorting equipment.

• Equipment Integration Difficulties: Compact architecture and flexible mounting methods address embedded installation requirements for automated equipment and smart appliances, eliminating structural modifications and reducing integration costs.

• Environmental Adaptability Challenges: Material and protection upgrades solve sensor damage and signal drift issues in humidity-rich environments (aquaculture), corrosive conditions (chemical reagent storage), and dust-laden settings (flour processing).

• Cost Pressure for Small Equipment: Single sensor fulfillment of planar weighing requirements eliminates multi-unit combinations. Lightweight aluminum construction reduces weight and cost, addressing price control demands for compact weighing instruments and consumer electronics.

3. User Experience

• Extremely Simplified Installation: Standardized mounting holes and positioning references eliminate professional calibration tool requirements. Installation completes with standard screwdrivers under low flatness requirements (≤0.1mm/m), with single-person debugging achievable within 10 minutes.

• Low Operation Threshold: One-key zeroing and single-point calibration functionality (requiring only 100% rated load standard weight) simplifies setup. Digital models enable rapid computer-based calibration, allowing non-professionals straightforward operation.

• Minimal Maintenance Cost: Fully sealed construction minimizes dust and moisture intrusion, with annual average failure rate ≤0.2%. Lightweight aluminum variants (minimum 5g) facilitate easy replacement without major structural disassembly.

• Accurate Data Feedback: Static measurement fluctuation remains ≤±0.003%FS with no hysteresis in quasi-dynamic applications. Digital models feature automatic zero drift compensation, eliminating frequent recalibration and ensuring robust data stability.

• Superior Integration Capability: Micro models (minimum dimensions 20mm×10mm×5mm) embed within smart devices without aesthetic impact. Signal output compatibility with mainstream controllers enables plug-and-play functionality.

4. Typical Application Scenarios

1) Commercial Light Load Weighing Instruments

• Supermarket pricing scales utilize the CZL650 as core sensing unit for 3-30kg applications, with lightweight aluminum design ensuring consistent accuracy at various placement positions (error ≤±1g). • Express delivery scales (1-50kg) employ stainless steel construction for anti-fouling protection in humid, dusty environments with IP67 rating supporting continuous fast weighing. • Kitchen and baking scales (0.01-5kg) leverage micro parallel beam sensors achieving milligram-level accuracy compatible with high-definition displays for precise recipe formulation.

2) Industrial Automation Equipment

• Automated sorting equipment detects product weight in real-time with ±0.1g precision, enabling conveyor belt integration for accurate material routing. • Assembly line material detection identifies component shortages through precision weighing (response time ≤4ms) suitable for high-speed operations. • Quantitative packaging machines employ C2 accuracy models ensuring per-bag weight error ≤±0.2%, meeting metrological standards for food and powder applications.

3) Food and Pharmaceutical Industries

• Pharmaceutical ingredient weighing (0.1-10kg) utilizes 316L stainless steel with GMP certification, polished surfaces enabling complete sterilization with accuracy ≤±0.01%FS. • Aquatic and meat processing applies waterproof, anti-corrosion design (IP68) supporting direct wash-down in wet environments typical of slaughterhouses and markets.

4) Scientific Research and Laboratory Equipment

• Biological experiments employ ultra-small range models (0.01-1kg) for reagent and sample weighing meeting microbial culture requirements. • Medical equipment force measurement integrates into rehabilitation devices and baby scales with lightweight construction improving portability, achieving ±0.005%FS accuracy.

5) Smart Consumer Electronics and IoT Devices

• Smart appliances detect laundry weight in washing machines and coffee bean levels in coffee makers using embedded micro sensors enabling intelligent equipment control. • IoT terminals monitor smart shelf inventory and trash can fill levels with low-power digital models supporting NB-IoT wireless transmission for remote management applications.

5. Usage Method (Practical Guide)

1) Installation Process

• Preparation: Clean installation surfaces removing oils and burrs, inspect sensor appearance for beam deformation or cable damage, select appropriate mounting bolts. • Positioning and fixing: Install horizontally ensuring vertical load alignment with beam body, employ torque wrench application (5-10N·m for aluminum, 10-20N·m for alloy steel) preventing over-tightening. • Wiring specifications: Follow color coding (red=power+, black=power-, green=signal+, white=signal-) for analog signals; reserve 5cm cable length for micro models. • Protection treatment: Seal connectors with waterproof tape in humid environments and clean sensor surfaces regularly in food applications.

2) Calibration and Adjustment

• Zero calibration: Power on and preheat 10 minutes, execute zero calibration ensuring output within ±0.001%FS. • Load calibration: Apply standard weight at 100% rated load, record signal values and correct errors ensuring accuracy ≤C2 level (±0.01%FS). • Eccentric load testing: Verify reading consistency at various weight positions, maintaining deviation ≤±0.02%FS.

3) Daily Maintenance

• Regular inspection: Clean surfaces weekly, verify wiring monthly; calibrate quarterly for commercial scales and monthly for laboratory equipment. • Fault handling: Check power supply voltage stability (5-24V DC typical), verify no overload conditions causing permanent deformation, replace sensor if necessary.

6. Selection Method (Precise Matching of Requirements)

1) Core Parameter Determination

• Range selection: Choose 1.2-1.5 times maximum anticipated weight to maintain accuracy in light load scenarios. • Accuracy level: Laboratory applications require C1 (error ≤±0.005%FS), industrial metrology needs C2 (error ≤±0.01%FS), commercial scales utilize C3 (error ≤±0.02%FS). • Signal type: Commercial instruments employ analog signals, intelligent devices utilize digital outputs, IoT scenarios require wireless module variants.

2) Environmental Adaptability Selection

• Temperature: Standard models (-10°C~60°C), low-temperature variants (-20°C~0°C), high-temperature compensation types (60°C~80°C). • Medium: Dry environments specify aluminum alloy, humid/food industries choose 304 stainless steel, chemical corrosion scenarios require 316L stainless. • Protection level: Indoor dry spaces need ≥IP65, humid/wash-down environments require ≥IP67, underwater/corrosive applications demand ≥IP68.

3) Installation and System Compatibility

• Installation method: Desktop scales use bolt fixing, smart devices employ embedded mounting, space-limited applications prioritize micro models (length ≤30mm). • Compatibility: Confirm power supply voltage and signal type match controller specifications, verify pin definitions preventing module damage.

Summary

The CZL650 parallel beam weighing sensor delivers core advantages of light load high-precision measurement, superior flat-surface anti-bias characteristics, and seamless equipment integration. This precision load cell solves critical challenges including small-range accurate weighing, eccentric load compensation, and embedded system installation. Selection prioritizes range, accuracy requirements, installation space constraints, and environmental conditions, then combines system compatibility assessment and additional functionality decisions. Proper operation requires avoiding overload and lateral impact while strictly adhering to regular calibration protocols ensuring long-term stability. The parallel beam weighing sensor represents the optimal sensing solution for light load and flat weighing applications across commercial scales, automation equipment, food processing, pharmaceutical industries, and IoT device integration.

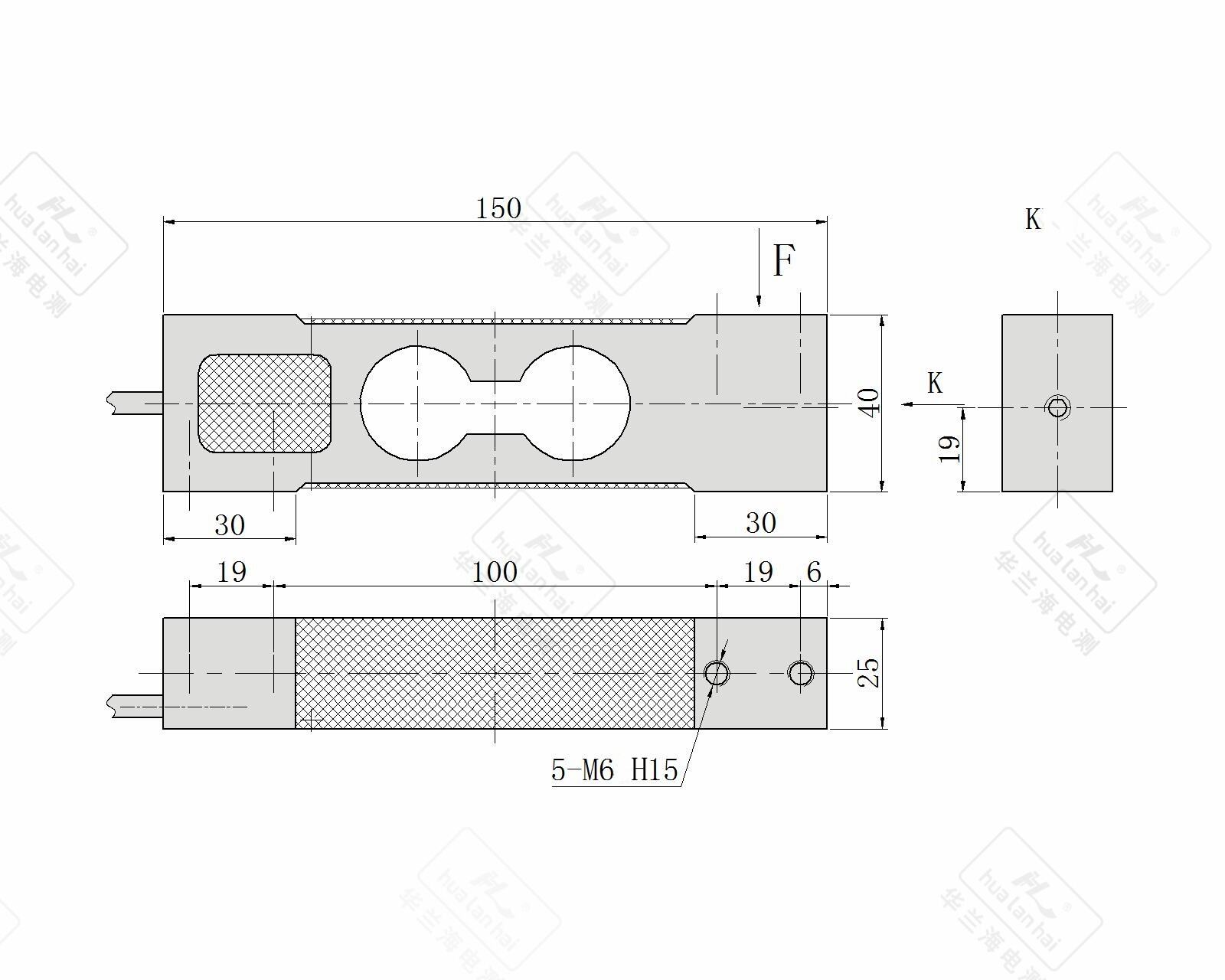

Detail Display

Parameters
