Steel Micro Sensor CZL913AB

Product Introduction

The Steel Micro Sensor CZL913AB is a miniaturized weight measurement component engineered on advanced strain gauge technology. This load cell sensor converts weight signals into precise electrical signals through innovative micro-sensitive structures, delivering exceptional measurement accuracy in a compact form factor. With a typical volume ranging from a few to dozens of cubic centimeters and a measurement range spanning from grams to kilograms, the Steel Micro Sensor CZL913AB combines the dual advantages of ultra-small size and high precision. As a core component for weighing applications in light load and confined space environments, this micro load cell is extensively deployed across medical equipment, consumer electronics, intelligent automation systems, and scientific research facilities, establishing itself as a fundamental enabler of weight sensing in modern micro-device applications.

1. Core Features and Functions

1) Miniaturization Core Characteristics

• Ultra-small volume and lightweight: The Steel Micro Sensor CZL913AB features a compact form factor ranging from 5mm×5mm×2mm to 30mm×20mm×10mm, with select customized models achievable at millimeter scale and weighing only 0.1g to 5g. This exceptional compactness enables seamless integration into confined spaces such as smart watches and micro pumps without compromising overall device structural design.

• Compact structural design: The Steel Micro Sensor CZL913AB predominantly employs integrated packaging architecture, consolidating sensitive elements and signal conditioning circuits within a micro housing. Multiple models support surface-mount and lead-type installation configurations, enabling direct PCB board soldering or snap-fit fixation for streamlined assembly processes.

2) Weighing Performance Advantages

• Wide-range accurate measurement: The CZL913AB micro load cell spans a measurement range from 0.1g to 50kg with core measurement accuracy of ±0.01%FS to ±0.1%FS and resolution capabilities reaching 0.001g. This performance level effectively addresses both microgram-level laboratory sample weighing and gram-level consumer electronics weight monitoring requirements.

• Fast dynamic response: With response time ≤10ms, the Steel Micro Sensor CZL913AB captures instantaneous weight fluctuations in real-time, proving invaluable for high-speed light load weighing on automated sorting lines and drip rate monitoring in medical infusion systems, effectively eliminating measurement deviations caused by signal delay.

• Stable anti-interference ability: The load cell sensor incorporates integrated temperature compensation modules adapted to -10℃ to +60℃ operating environments, offsetting environmental temperature fluctuation impacts. Differential signal output or electromagnetic shielding design resists device internal circuit electromagnetic interference, ensuring consistent data stability.

3) Integration and Adaptation Functions

• Multi-signal output adaptation: The Steel Micro Sensor CZL913AB supports both analog signals (0-5V, 4-20mA) and digital signals (I2C, SPI, UART) output, offering direct connectivity to microcontroller units, single-chip microcomputers, and compact PLCs without requiring additional signal amplification modules.

• Material and medium compatibility: The micro load cell utilizes 316L stainless steel, titanium alloy, or engineering plastic sensitive elements with anti-corrosion treated housings, ensuring reliable performance across diverse weighing media including medical body fluids, food materials, and electronic components, while preventing pollution or corrosion damage.

• Low power consumption characteristics: Static power consumption remains ≤10mA with sleep mode operation as low as 10μA, making the load cell sensor ideally suited for battery-powered portable devices such as handheld weighing scales and smart wearable systems, significantly extending operational battery life.

2. Solving Core Industry Pain Points

Traditional load cells and industrial weighing modules demonstrate significant limitations in light load and miniaturized measurement scenarios, including excessive volume, high power consumption, insufficient accuracy, and difficult integration challenges. The Steel Micro Sensor CZL913AB specifically addresses these critical industry pain points:

• Integration Obstacles in Micro Devices: This micro load cell resolves the fundamental challenge that conventional sensors cannot be embedded in compact devices, exemplified by body weight monitoring in smart bracelets and liquid medicine weight control in micro medical pumps, achieving the dual requirements of weighing functionality and device miniaturization through innovative size optimization.

• Difficulties in Light Load High-precision Measurement: The steel load cell eliminates accuracy deficiencies of traditional sensors in gram-level and milligram-level weighing applications such as micro sample laboratory analysis and electronic component pin weight detection, delivering reliable measurement data for precision manufacturing and scientific research initiatives.

• Power Consumption Issues in Portable Devices: The micro load cell addresses extended battery drain problems associated with traditional high-power sensors used in handheld express scales and outdoor sample collection equipment, with low power consumption characteristics extending single-use operational duration.

• Limitations in Complex Installation Spaces: This load cell sensor fulfills weighing requirements in narrow and specialized structure environments such as internal component weighing in automated equipment and pipeline fluid weight monitoring, effectively overcoming spatial constraints through surface-mount and embedded installation capabilities.

• Signal Compatibility Issues in Multiple Scenarios: The digital signal output models of the Steel Micro Sensor CZL913AB enable direct microcomputer and MCU connectivity, reducing circuit design complexity and lowering research and development costs for compact device applications.

3. User Experience Highlights

• High Integration Convenience: Standardized pin layout and package dimensions of the micro load cell support direct PCB board soldering or snap fixation without complex mechanical structures. Integration time can be reduced to within 30 minutes, substantially improving equipment production efficiency.

• Simple Debugging Operation: Digital signal models support one-click zero point and range calibration through instructions, while analog signal versions exhibit excellent linearity, enabling rapid deployment with basic circuit debugging and reducing technical expertise requirements for development personnel.

• Strong Stability in Use: Temperature compensation and anti-interference design ensure data drift ≤ ±0.05%FS per year, eliminating frequent recalibration requirements in portable and embedded applications and reducing ongoing maintenance workload.

• Flexible and Diverse Selection: The steel load cell range includes abundant models with varied ranges, signal types, and installation methods, enabling direct model selection based on equipment size, power supply voltage, and accuracy specifications. Selected manufacturers offer small-batch customization supporting personalized requirements.

• Reasonable Cost Control: Bulk purchasing enables unit costs ranging from tens to hundreds of yuan, reducing costs exceeding 50% compared to customized micro-sensing solutions. Low power consumption characteristics simultaneously decrease equipment overall energy consumption expenses.

4. Typical Usage Scenarios

1) Medical and Health Field

• Infusion monitoring equipment: Embedded within infusion pumps, the load cell sensor provides real-time weight change monitoring of drug solutions, calculates infusion delivery rates, and triggers alerts when solutions near depletion, preventing empty bottle risks in intensive care settings.

• Rehabilitation and nursing equipment: The micro load cell serves intelligent rehabilitation scales and prosthetic weight sensing modules, monitoring weight variations during elderly rehabilitation training or providing prosthetic weight feedback to enhance rehabilitation safety protocols.

• Laboratory medical equipment: Integration into micro-pipettes and biochemical analyzers enables precise reagent or sample weight measurement, ensuring accurate sample addition, such as micro-sampling and weighing in COVID-19 detection reagent applications.

2) Consumer Electronics and Smart Wearables

• Smart wearable devices: The load cell sensor integrates into smart bracelets and smartwatches for indirect weight and body fat measurement, or weight monitoring under force during physical exercise, analyzing foot landing weight during running activities.

• Smart home devices: Implemented in intelligent kitchen scales and coffee machines for raw material weighing, precisely measuring coffee powder for brewing concentration control, or monitoring smart trash can overflow through weight-based garbage capacity assessment.

• Portable weighing tools: Mini express scales and luggage weighers benefit from the micro load cell's compact design and low power characteristics, providing convenient real-time item weight measurement for user portability requirements.

3) Industrial Automation and Micro-manufacturing

• Electronic component production: The steel load cell monitors chip and resistor component weights on SMT production lines to screen unqualified products, or measures semiconductor encapsulant weight ensuring packaging quality standards.

• Micro-automation equipment: Functioning as end effector sensors on micro-assembly robots, the load cell detects gripping part weight and confirms successful gripping, exemplified in mobile phone camera module assembly detection.

• Fluid control equipment: Embedded in micro-metering pumps and fuel injectors, the steel load cell monitors fluid delivery volume through weight measurement, ensuring fuel injection system micro-fuel precision for combustion efficiency optimization.

4) Research and Testing Field

• Material science research: The micro load cell measures small material sample weights (nanomaterials, thin film materials) or material weight changes during stretching and compression processes, supplying performance analysis data.

• Environmental monitoring equipment: Measuring collected sample weights in miniature water quality monitors and air sampling equipment calculates pollutant concentration, exemplified in atmospheric particulate matter sampling weight analysis.

5) Logistics and Retail Field

• Micro-sorting system: The steel load cell weighs small packages at express automated sorting line endpoints for weight-based classification, or identifies goods through weighing at unmanned supermarket self-service checkout counters using weight databases.

• Retail weighing equipment: Jewelry scales and precious metal scales utilize the micro load cell for accurate gold and diamond weighing, offering compact counter placement without excessive space requirements.

Summary

The Steel Micro Sensor CZL913AB represents a breakthrough in miniaturized weight measurement technology with core competitiveness centered on small size, exceptional precision, and low power consumption. This innovative micro load cell transcends traditional weighing equipment limitations in spatial constraints and measurement range, accurately addressing light load weighing requirements across medical, consumer electronics, micro-manufacturing, and research sectors. Featuring convenient integration methodology, dependable performance characteristics, and cost-effective solutions, the steel load cell not only promotes micro-device functional enhancement but also provides essential support for industrial sectors pursuing precision, miniaturization, and intelligent weighing capabilities, establishing itself as an indispensable component of contemporary sensing technology infrastructure.

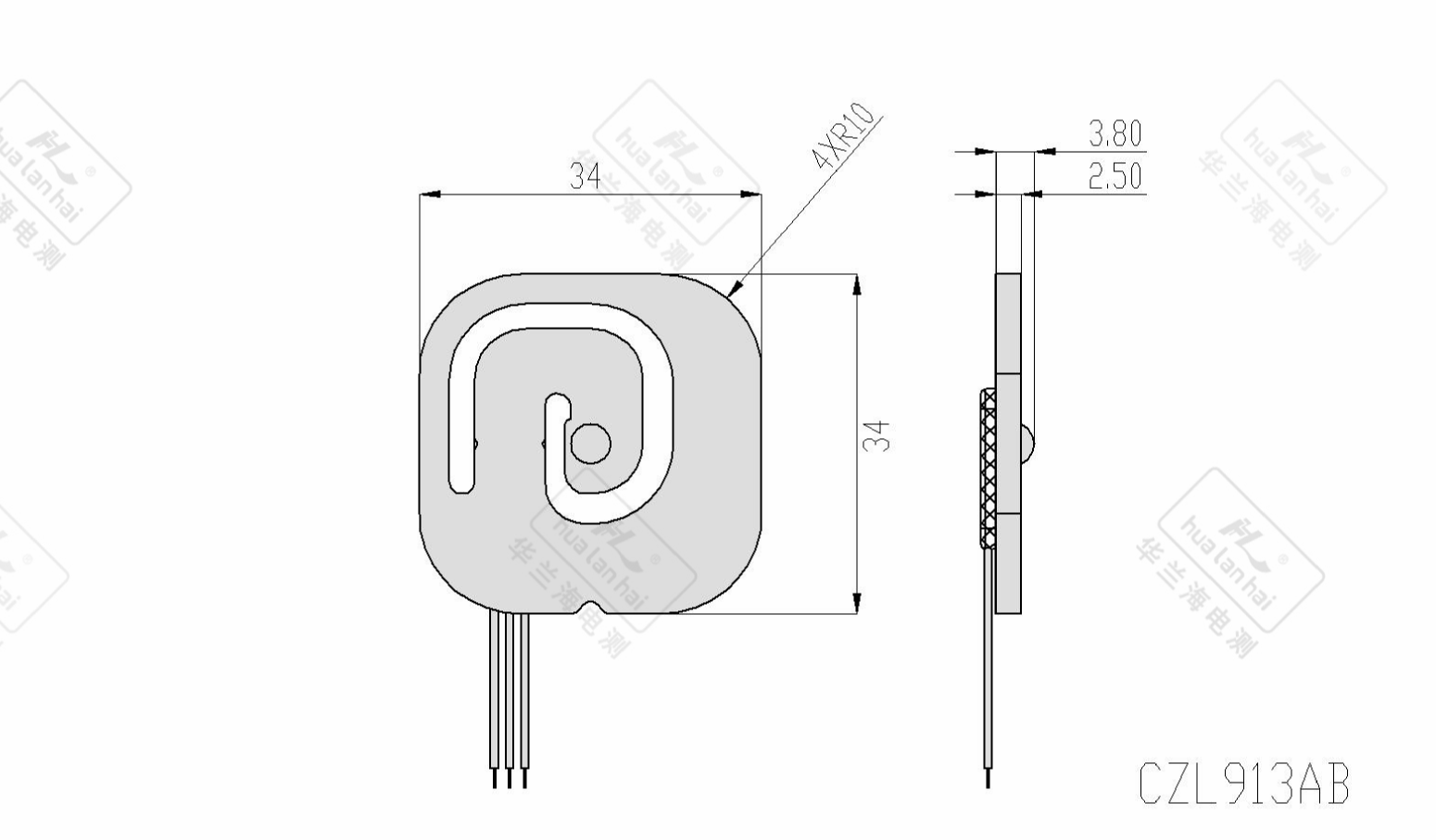

Detail Display

Parameters
