- Structural Design: The CZL642 parallel beam weighing sensor adopts an integrated square parallel beam structure, the mainstream form for general-purpose weighing sensing. The regular square outline facilitates structural arrangement inside various weighing devices.
- Adaptability Performance: Classified as a universal weighing sensor, it maintains stable sensing output under conventional working conditions, meeting the measurement demands of multiple types of small and medium weighing apparatus.
- Structural Reliability: Mature parallel beam mechanical construction delivers stable force transmission, supporting long-term cyclic weighing work for automated systems and commercial scales.
- Installation Compatibility: Standard square appearance adapts to built-in assembly requirements of electronic scales, kitchen scales and jewelry scales, convenient for standardized equipment development.
- Weight Sensing Measurement: It converts applied load into measurable electrical signals, acting as the core sensing unit of electronic scales, kitchen scales, jewelry scales.
- Automatic System Sensing Support: Serves as essential hardware for weight acquisition in industrial and agricultural automation systems, realizing automatic weight monitoring.
- Universal Static Weighing: Suits routine static weighing tasks for consumer and commercial weighing equipment.
- Continuous Working Support: Stable mechanical structure enables continuous operation for all-day commercial and automated production scenarios.
- General-purpose Weighing Component Supply: Provides standardized square parallel beam sensor for electronic scales, kitchen scales, jewelry scales manufacturers.
- Sensing Hardware Demand for Automation: Supplies essential weighing sensors required by industrial and agricultural automatic control systems.
- Embedded Assembly Matching: Square shape solves the installation matching problem inside compact weighing equipment.
- Universal Sensing Solution: Realizes one model applicable to multiple weighing industries, simplifying component selection for equipment producers.
- Wide Compatibility: Standard square parallel beam structure fits most common electronic scales, kitchen scales and jewelry scale structures.
- Stable Signal Output: Reliable parallel beam structure ensures consistent weighing signal and reduces frequent calibration frequency.
- Convenient Product Development: Universal specification lowers the mold and structural development cost for weighing equipment manufacturers.
- Rich Application Scenarios: Covers both commercial weighing devices and industrial & agricultural automation, reducing material inventory types.
Product IntroductionThe CZL642 parallel beam weighing sensor is a widely popular sensing unit within the load cell industry. Featured with a square outline, it is generally named the parallel beam weighing sensor across the industry. As an indispensable core component, it is extensively deployed in industrial and agricultural automation systems. Meanwhile, this load cell is highly applied to electronic scales, kitchen scales, jewelry scales and diverse related weighing industries.
1. Product Features and Functions Core Features
• Household kitchen scales utilize this sensor to realize accurate weighing of food raw materials.
• General electronic scales take it as the core sensing part for daily commercial weighing work.
• Agricultural automatic feeding and metering systems use this parallel beam weighing sensor to monitor material weight.
• Positioning and fixing: Install the sensor horizontally and guarantee vertical load bearing; prevent side force which will affect weighing accuracy.
• Wiring operation: Connect cables following official specifications and take protective measures to avoid wire wear.
• Load calibration: Apply standard weights to finish calibration to guarantee reliable weighing data.
• Stability test: Test multiple loading positions to verify consistent measurement results.
• Operating specification: Avoid severe impact and excessive overload to protect the parallel beam elastomer.
• Automation projects: Select this parallel beam sensor for weight monitoring in industrial and agricultural automation systems.
1. Product Features and Functions Core Features
Core Functions
2. Core Problems Solved
3. User Experience
4. Typical Application Scenarios
1) Commercial Weighing Equipment
• Jewelry scales adopt the CZL642 parallel beam weighing sensor for precision weighing of small jewelry goods.• Household kitchen scales utilize this sensor to realize accurate weighing of food raw materials.
• General electronic scales take it as the core sensing part for daily commercial weighing work.
2) Industrial and Agricultural Automation Systems
• Industrial automated metering and sorting equipment relies on the sensor for real-time weight collection.• Agricultural automatic feeding and metering systems use this parallel beam weighing sensor to monitor material weight.
5. Usage Method (Practical Guide)
1) Installation Process
• Preparation: Confirm that the installation space matches the square dimension of CZL642 parallel beam weighing sensor. Check sensor appearance to avoid beam deformation.• Positioning and fixing: Install the sensor horizontally and guarantee vertical load bearing; prevent side force which will affect weighing accuracy.
• Wiring operation: Connect cables following official specifications and take protective measures to avoid wire wear.
2) Calibration and Adjustment
• Zero calibration: Complete zero setting after equipment power-on to eliminate initial output deviation.• Load calibration: Apply standard weights to finish calibration to guarantee reliable weighing data.
• Stability test: Test multiple loading positions to verify consistent measurement results.
3) Daily Maintenance
• Regular inspection: Check sensor structure and connecting cables periodically.• Operating specification: Avoid severe impact and excessive overload to protect the parallel beam elastomer.
6. Selection Method (Precise Matching of Requirements)
1) Application Scenario Confirmation
• Consumer weighing equipment: Choose CZL642 for kitchen scales, jewelry scales and general electronic scales.• Automation projects: Select this parallel beam sensor for weight monitoring in industrial and agricultural automation systems.
2) Installation Space Confirmation
• Confirm equipment inner space can accommodate the square outline of CZL642 parallel beam weighing sensor before purchase.3) Working Environment
• Standard indoor environment is applicable; take protective measures if used in damp or dusty conditions.Summary
The CZL642 parallel beam weighing sensor with square shape is a mainstream general-purpose load cell. It works as an indispensable core component for industrial and agricultural automation systems, and is widely used in electronic scales, kitchen scales, jewelry scales and other weighing industries. With a mature square parallel beam structure, it features strong universality and convenient assembly. It is an ideal sensing component for commercial weighing apparatus and automatic weight monitoring equipment.
Detail Display
Parameters

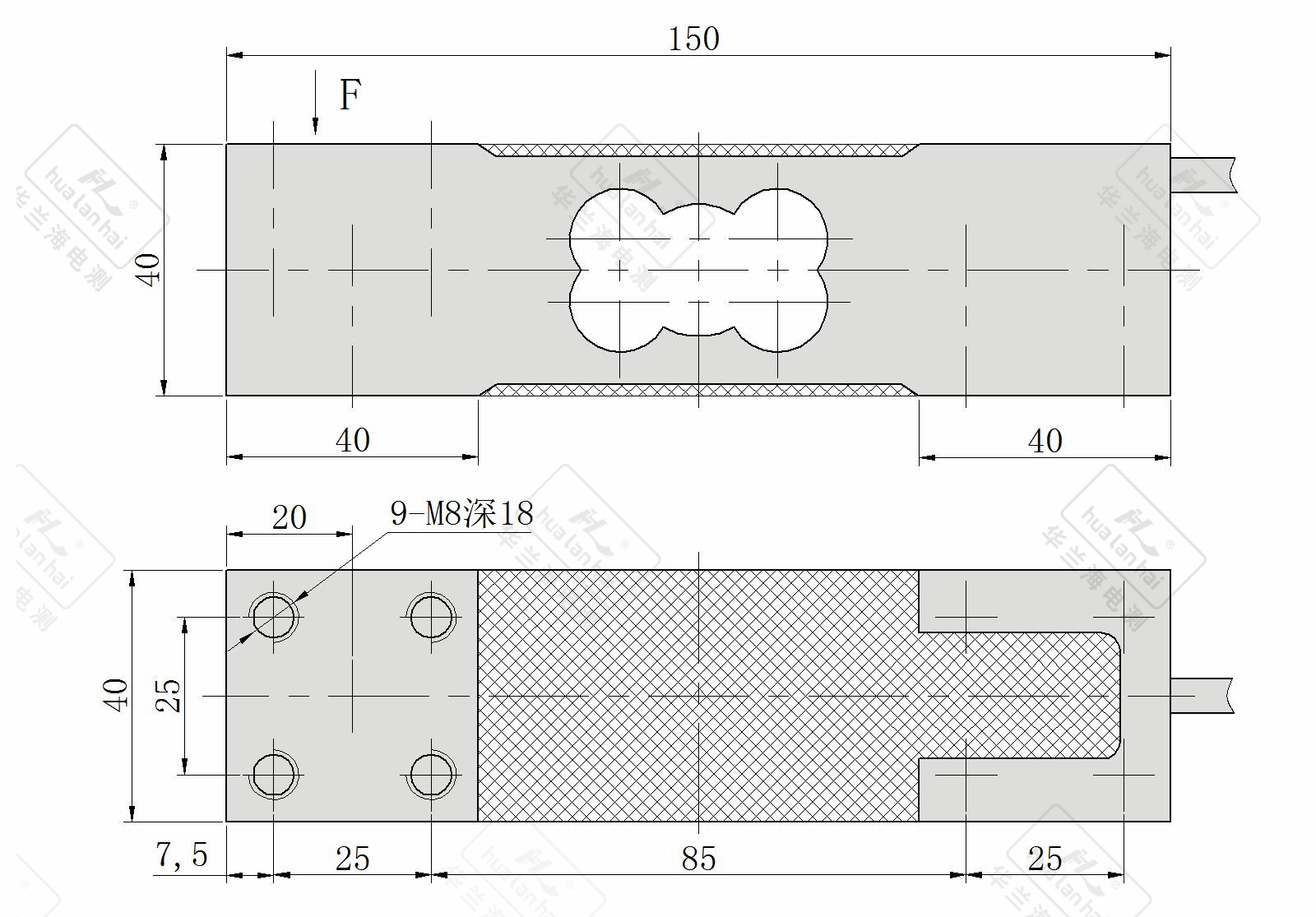

| Parameter Name | Parameter Value |
| Sensor range | 50kg ~ 600kg |
| Accuracy class | C2/C3 |
| Comprehensive error | ±0.03 & ±0.02% FS |
| Output sensitivity | 2.0±0.2 mV/V |
| creep | ±0.023 & ±0.016% FS/30min |
| Zero output | ±1.5% FS |
| Input impedance | 405±10Ω |
| Output impedance | 350±3Ω |
| insulation resistance | ≥5000 MΩ(100VDC) |
| Influence of zero temperature | ±0.029 & ±0.019% FS/10℃ |
| Sensitivity temperature effect | ±0.025 & ±0.017% FS/10℃ |
| Temperature compensation range | -10℃ ~ +40 ℃ |
| Operating temperature range | -20℃ ~ +60 ℃ |
| Excitation voltage | 5VDC ~ 12VDC |
| Safe overload range | 120% |
| Limit overload range | 150% |
| Recommended table size | 400*400mm |
| Material Science | Aluminum Alloy |
| Protection level | IP65 |
| External dimension of sensor | 1504040 |
| Mounting hole size | 4-M8 |
| Location of mounting hole | X25 Y25 |
