Steel Micro Sensor CZL928DB

Product Introduction

The Steel Micro Sensor CZL928DB represents a breakthrough in miniaturized weight measurement technology, engineered for precision applications in confined spaces. This micro load cell operates on the strain gauge principle, converting weight signals into measurable electrical signals through advanced micro-sensitive structures. Designed with exceptional compactness—typically ranging from a few to dozens of cubic centimeters—the Steel Micro Sensor CZL928DB delivers measurement ranges from grams to kilograms while maintaining superior accuracy. This load cell sensor combines "small size" with "high precision," making it the ideal core component for weighing scenarios requiring both space efficiency and measurement reliability. The micro load cell is widely adopted in medical equipment, consumer electronics, intelligent devices, and scientific research, establishing itself as the foundational technology for weight sensing in micro devices across industries.

1. Core Features and Functions

1) Miniaturization Core Characteristics

• Ultra-small volume and lightweight: The Steel Micro Sensor CZL928DB features typical dimensions ranging from 5mm×5mm×2mm to 30mm×20mm×10mm, with customized models reducible to millimeter specifications and weights of only 0.1g to 5g. This micro load cell enables seamless integration into confined spaces such as smartwatches and micro pumps without compromising device structural integrity or overall design efficiency.

• Compact structural design: Most models adopt integrated packaging, consolidating sensitive elements and signal conditioning circuits within a micro housing. This load cell sensor supports lightweight installation methods including surface mount and lead-type configurations, enabling direct PCB soldering or snap-fit fixation for streamlined manufacturing processes.

2) Weighing Performance Advantages

• Wide range accurate measurement: The Steel Micro Sensor CZL928DB covers measurement ranges from 0.1g to 50kg, achieving core measurement accuracy of ±0.01%FS to ±0.1%FS with resolution as fine as 0.001g. This micro load cell satisfies both laboratory microgram-level sample weighing and consumer electronics gram-level weight monitoring requirements with exceptional precision.

• Fast dynamic response: Response times of ≤10ms enable real-time capture of instantaneous weight changes, supporting high-speed light load weighing on automated sorting lines and drip rate monitoring in medical infusion systems. The load cell sensor prevents measurement deviations caused by signal delays, ensuring reliability in time-critical applications.

• Stable anti-interference ability: Built-in temperature compensation modules adapt to -10℃ to 60℃ operating environments, effectively offsetting environmental temperature fluctuations. Differential signal output and electromagnetic shielding design resist electromagnetic interference from device internal circuits, maintaining data stability and measurement consistency.

3) Integration and Adaptation Functions

• Multi-signal output adaptation: This micro load cell supports analog signals (0-5V, 4-20mA) and digital signals (I2C, SPI, UART), enabling direct connection to MCU, single-chip microcomputers, and small PLC systems without requiring additional signal amplification modules, simplifying system integration.

• Material and medium compatibility: Sensitive elements utilize 316L stainless steel, titanium alloy, or engineering plastics with anti-corrosion housing treatments, ensuring compatibility with medical body fluids, food materials, and electronic components while preventing contamination or corrosion damage to the load cell sensor.

• Low power consumption characteristics: Static power consumption remains ≤10mA, reducing to 10μA in sleep mode, making this micro load cell ideal for battery-powered portable devices including handheld weighing scales and smart wearable equipment, significantly extending operational battery life.

2. Solving Core Industry Pain Points

Traditional load cells present significant limitations in light load and miniaturized weighing scenarios, exhibiting excessive volume, high power consumption, insufficient accuracy, and difficult integration challenges. The Steel Micro Sensor CZL928DB specifically addresses these critical pain points through advanced engineering.

• Integration obstacles in micro devices: This micro load cell solves embedding challenges in small devices, enabling smart bracelets to perform body weight monitoring and micro medical pumps to control liquid medicine weight, achieving the dual requirements of "weighing function plus miniaturization" through intelligent compact design.

• Difficulties in light load high-precision measurement: The load cell sensor addresses traditional sensor accuracy insufficiency in gram-level and milligram-level weighing, providing reliable data for laboratory micro sample weighing, electronic component pin weight detection, and precision manufacturing applications.

• Power consumption issues in portable devices: The Steel Micro Sensor CZL928DB resolves battery life constraints caused by high power consumption, extending single-use duration for handheld express weighing scales and outdoor sample collection equipment through optimized power efficiency.

• Signal compatibility in multiple scenarios: Digital signal output models connect directly to single-chip microcomputers and MCUs, eliminating signal compatibility issues and reducing circuit design complexity while lowering R&D costs for system developers.

3. User Experience Highlights

• High integration convenience: Standardized pin layouts enable direct PCB soldering or snap fixation without complex mechanical structures, reducing integration time to under 30 minutes and significantly improving equipment production efficiency with this micro load cell.

• Simple debugging operation: Digital signal models support one-click calibration of zero and range through simple instructions, while analog signal variants offer excellent linearity, enabling rapid deployment with minimal circuit debugging and reduced R&D technical thresholds for the load cell sensor.

• Strong stability in use: Temperature compensation and anti-interference design deliver data drift ≤±0.05%FS annually, eliminating frequent recalibration requirements in portable and embedded applications while reducing maintenance workload.

• Flexible and diverse selection: The Steel Micro Sensor CZL928DB provides multiple models with varying ranges, signal types, and installation methods, selectable based on equipment size, power supply voltage, and accuracy requirements, with manufacturer support for small-batch customization to meet specialized needs.

• Reasonable cost control: Bulk purchasing enables per-unit costs from tens to hundreds of yuan, representing 50% cost savings versus customized micro-sensing solutions, while low power consumption characteristics further reduce overall equipment energy consumption expenses.

4. Typical Usage Scenarios

1) Medical and Health Field

• Infusion monitoring equipment: Embedded within infusion pumps, the micro load cell enables real-time drug solution weight monitoring, calculating infusion speed and triggering alarms when solutions approach depletion, preventing empty bottle risks during critical medical procedures.

• Rehabilitation and nursing equipment: Integrated into intelligent rehabilitation scales and prosthetic weight sensing modules, monitoring rehabilitation training weight changes and prosthetic weight feedback for enhanced rehabilitation safety monitoring.

• Laboratory medical equipment: Applied in micro-pipettes and biochemical analyzers, the Steel Micro Sensor CZL928DB measures reagent and sample weights, ensuring accurate sample addition precision for applications including COVID-19 detection reagent micro-sampling.

2) Consumer Electronics and Smart Wearables

• Smart wearable devices: Integrated into smart bracelets and smartwatches, this micro load cell achieves indirect weight measurement, body fat monitoring, and exercise weight analysis, tracking landing force weight during running activities.

• Smart home devices: Applied in smart kitchen scales and coffee machines, enabling precise raw material weighing and coffee powder weight control for brewing concentration optimization, plus overflow monitoring in smart trash cans through weight-based capacity judgment.

• Portable weighing tools: Mini express scales and luggage weighers utilize this micro load cell, featuring compact design and low power consumption for convenient real-time item weight measurement during travel.

3) Industrial Automation and Micro-manufacturing

• Electronic component production: In SMT chip production lines, this load cell sensor monitors component weights including chips and resistors for quality screening, while semiconductor packaging applications measure encapsulant weight to ensure packaging quality standards.

• Micro-automation equipment: Serving as micro-assembly robot end effectors, the Steel Micro Sensor CZL928DB senses gripping part weight and determines grip success, supporting mobile phone camera module assembly detection and similar precision applications.

• Fluid control equipment: Embedded in micro-metering pumps and fuel injectors, this micro load cell monitors fluid delivery volumes through weight measurement, ensuring fuel injection system efficiency and combustion optimization.

4) Research and Testing Field

• Material science research: The micro load cell measures small material sample weights including nanomaterials and thin film materials, capturing weight changes during stretching and compression processes for comprehensive performance analysis.

• Environmental monitoring equipment: Measuring collected sample weights in miniature water quality monitors and air sampling equipment, this load cell sensor calculates pollutant concentration data including atmospheric particulate matter analysis.

5) Logistics and Retail Field

• Micro-sorting systems: At express automated sorting line endpoints, the Steel Micro Sensor CZL928DB weighs small packages enabling weight-based classification, while unmanned supermarket self-checkout counters utilize this load cell sensor for goods identification through weight database matching.

• Retail weighing equipment: Jewelry scales and precious metal scales employ this micro load cell for accurate valuable item weighing including gold and diamonds, featuring compact countertop placement without space constraints.

Summary

The Steel Micro Sensor CZL928DB embodies core competitiveness through "small size, high precision, and low power consumption," transcending traditional weighing equipment limitations in space and range. This micro load cell precisely addresses light load weighing needs across medical, consumer electronics, and micro-manufacturing industries. Its convenient integration methodology, stable performance characteristics, and cost-effective control support functional upgrades in micro-devices while providing reliable support for achieving "precision, miniaturization, and intelligence" in weighing applications. The load cell sensor represents an indispensable component of modern sensing technology, enabling industries to meet evolving technical requirements efficiently and economically.

Detail Display

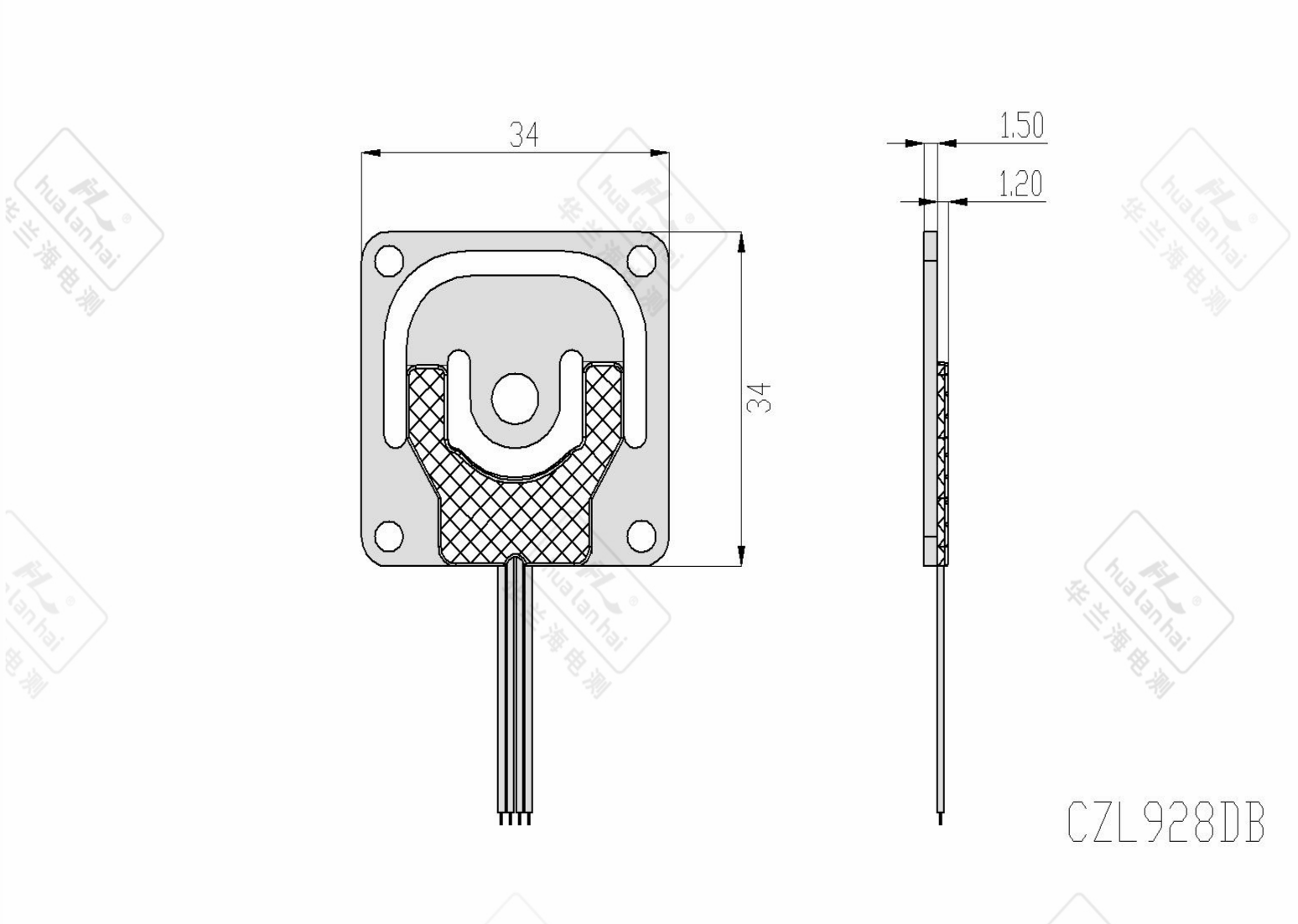

Parameters
