Range: 10 ~ 50
Features: Sensor Elastomer made of alloy steel or stainless steel; Laser welding sealed, nickel-plated surface; Tension and compression of two-way bearing, suitable for a variety of work environments. High-precision, high reliability.
Applications: Widely used in electronic truck scale, to scales and other weighing force measuring equipment.
Accuracy class: C3 Sensitivity Temperature Effect (% F.S / 10 ° C): ± 0.011 Combined error (% F.S): ± 0.02 Zero temperature effect (% F.S / 10 ° C): ± 0.019 Sensitivity (mv / v): 1.5 ± 0.002 Temperature compensation range (℃): -10 ~ +40 Creep (% F.S / 30 min): ± 0.016 Operating temperature (℃): -20 ~ +60 | Zero point output (% F.S): ± 1.0 Excitation voltage (V): 9 ~ 12 (DC) Input impedance (Ω): 700 ± 10 Safe overload range (% F.S): 150 Output impedance (Ω): 700 ± 5 Limit overload range (% F.S): 200 Insulation resistance (MΩ): ≥ 5000 (100VDC) Protection class: IP67 / IP68 |

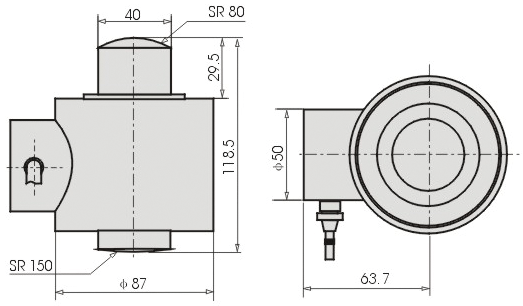

Installation dimensions (mm):
Wiring: Red line: excitation (+) 111 green line: signal (+) Black line: Incentive (-) 111 White line: Signal (-) Note: The four-core shielded cable, the standard length of 10m, if special needs, according to customer requirements!
Force diagram:
