Rated load:5000kg / 10000kg
Main features:Alloy steel & stainless structure; bellows hermetically sealed by laser, nickel plated, waterproof and anti-corrosion, suitable for multiform environments; suitable for electronic platform scales, hopper scales, and other electronic weighing devies.
Parameters: |
Precison : G2 |
| Temp. effect on span(%F.S/10℃): ±0.03 |
Comprehensive error(%F.S) : ±0.2 |
| Temp. effect on zero(%F.S/10℃): ±0.05 |
Rated output(mv/v) : 2.5±0.008 |
| Compensated temp. range(℃ ) : -10～+40 |
Creep(%F.S/30min) : ±0.05 |
| Use temp. range(℃ ) : -20～+55 |
Zero balance(%F.S) : ±1.0 |
| Excitation voltage(V) : 9～12(DC) |
Input resistance(Ω) : 700±10 |
| Safe overload (%F.S) : 120 |
Output resistance(Ω) : 700±5 |
| Ultimate overload (%F.S) : 150 |
Insulation resistance(MΩ) : ≥5000(100VDC) |
| Defend grade : IP66 |

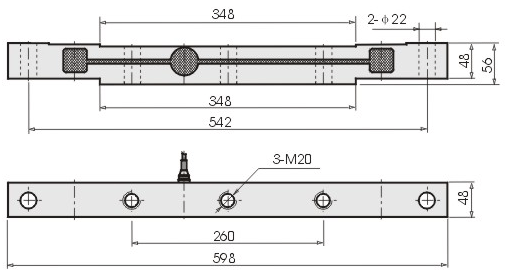

Installation size (mm):
Wiring schematic diagram:
Red: Input ( ＋ ) 111 White: Output ( － )
Black: Input ( － ) 111 Green: Output ( ＋ )
Notes：It used 4-core shielded cable(φ5×6000mm)
Load instruction:
