Range: 500,1000,2000,2500,5000
Features: Sensor elastomer made of alloy steel; can provide welding seal; High-precision, high reliability.
Applications: Widely used in electronic scales, truck scales, to scales and other weighing force measuring equipment.
Technical Specifications:
Accuracy class: C2 / C3
Combined error (% F.S): ± 0.03 / ± 0.02
Sensitivity (mv / v): 3.0 ± 0.003
Creep (% F.S / 30 min): ± 0.024 / ± 0.016
Zero point output (% F.S): ± 1.0
Input impedance (Ω): 350 ± 5
Output impedance (Ω): 350 ± 3
Insulation resistance (MΩ): ≥ 5000 (100VDC)
Sensitivity Temperature Effect (% F.S / 10 ° C): ± 0.017 / ± 0.011
Zero temperature effect (% F.S / 10 ° C): ± 0.023 / ± 0.015
Temperature compensation range (℃): -10 ~ +40
Operating temperature (℃): -20 ~ +55
Excitation voltage (V): 9 ~ 12 (DC)
Safe overload range (% F.S): 150
Limit overload range (% F.S): 200
Protection level: IP66

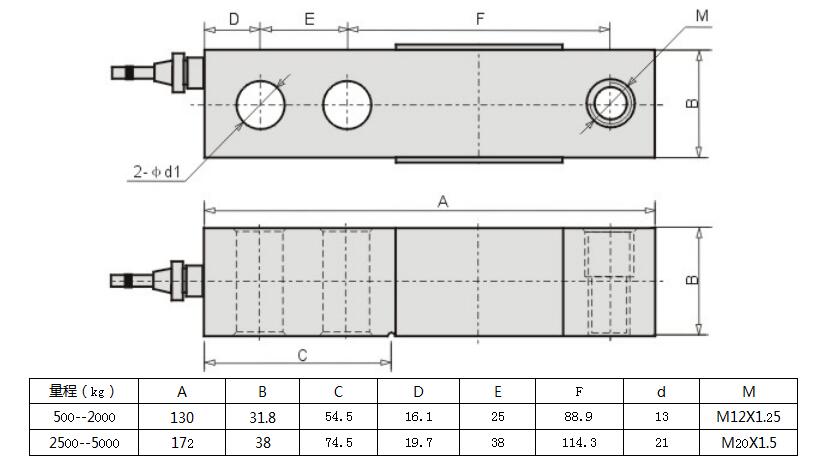

Installation dimensions (mm):
Wiring: Red line: excitation (+) 111 green line: signal (+) Black line: Incentive (-) 111 White line: Signal (-) Note: The use of four-core shielded cable, the standard length of 3m, if there is a special need, according to customer requirements! Force diagram:
