Range: 500,1000,2000,2500,5000 Features: Sensor elastomer made of alloy steel; can provide welding seal; High-precision, high reliability. Applications: Widely used in electronic scales, truck scales, to scales and other weighing force measuring equipment.Technical Specifications:Accuracy level: C2 Combined error (% F.S): ± 0.03 / ± 0.02 Sensitivity (mv / v): 3.0 ± 0.003 Creep (% F.S / 30 min): ± 0.023 / ± 0.016 Zero point output (% F.S): ± 1.0 Input impedance (Ω): 350 ± 5 Output impedance (Ω): 350 ± 3 | Sensitivity Temperature Effect (% F.S / 10 ° C): ± 0.017 Zero temperature effect (% F.S / 10 ° C): ± 0.023 Temperature compensation range (℃): -10 ~ +40 Operating temperature (℃): -20 ~ +55 Excitation voltage (V): 9 ~ 12 (DC) Safe overload range (% F.S): 150 Limit overload range (% F.S): 200 Protection level: IP66 |

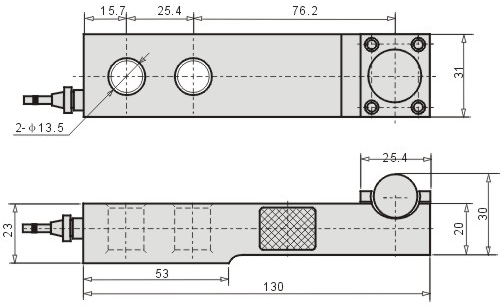

Installation dimensions (mm):
Wiring:
Red line: excitation (+) 111 green line: signal (+)
Black line: Incentive (-) 111 White line: Signal (-)
Note: The use of four-core shielded cable, the standard length of 3m, if there is a special need, according to customer requirements!
Force diagram:
